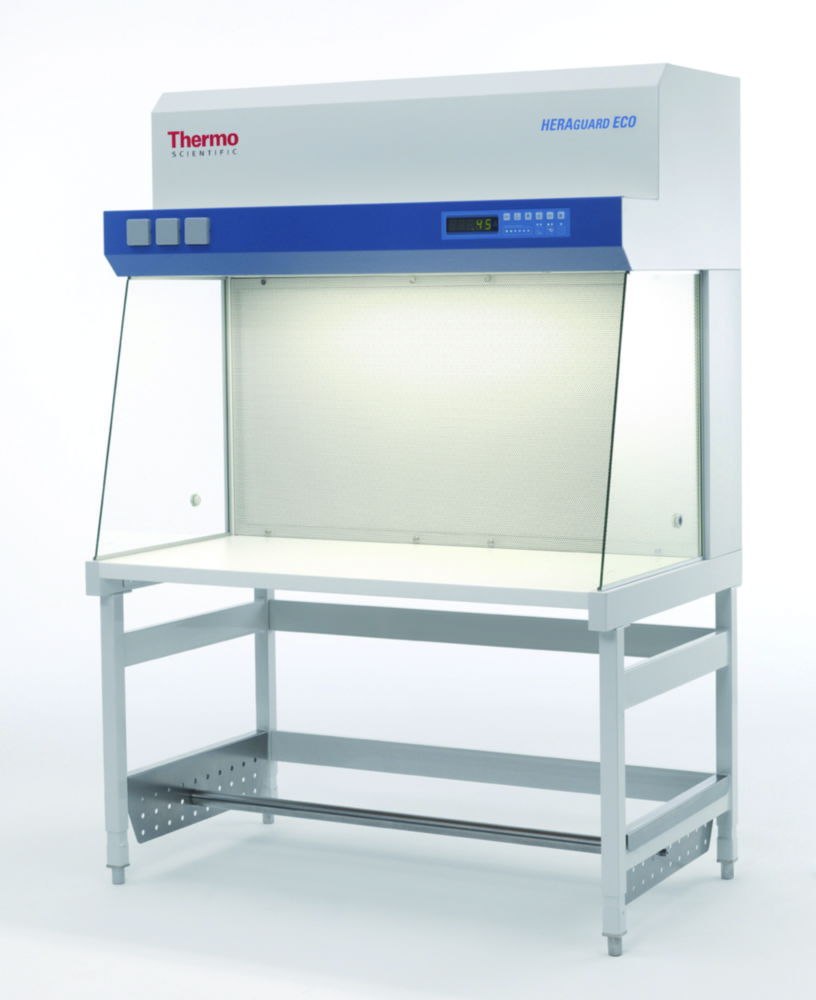

Laminar flow cabinets, Heraguard™ ECO
Heraguard™ ECO clean benches are ideal for laboratory applications where sample protection is required. Due to DC motors, Heraguard ECO clean benches use less energy to operate so there is less heat emitted into the lab.
Heraguard™ ECO clean benches provide:
- Sample protection
- Clean air conditions that can be validated
- Side windows made of tempered safety glass
- Ease of use: Variety of sizes Clean benches are available with interior widths of 900, 1200, 1500 and 1800 mm, and are offered in two different working heights: Standard work space height 650 mm. Extra work space height 950 mm.
- All-round vision: The side windows increase the available light inside the work area and support a comfortable work environment.
- UV disinfection (optional): A UV disinfection light can be tted into the top of the work space to disinfect the worktop.
- Transparent hinged wind screen (optional): Protects the user against the dry purified air flow. The wind screen is folded under the light housing and can be ipped down for use.
- SmartPort™ convenience: Clean and safe routing for vacuum tubing and cables through the side of the clean bench improves organization and work eficiency.
- Modular side windows: The side windows are made of single pane safety glass with an access port for tubing or a media tap. Optionally, a lacquered sheet steel plate with three holes can be used.
- Prefilter: The prefilter on the intake side can be changed by hand, without the need for tools. Prefilter exchange is made economical and easy.
- Intuitive control panel: Displays safety and performance data.
- Easy HEPA filter exchange: The HEPA filter is easily removed from the front. A simple process that does not involve any disassembly or removal of equipment from the wall. This saves time during service visits.
- Choice of work tops: Standard white melamine work tops or optional stainless steel tops are available for different applications and individual work space designs.
- Max. load capacity of work surface: 30 kg
Without stands. Please order separately.
Toote variatsioonid
| Catalog number | PK | Depth int. | External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Height int. | Internal dimensions (WxDxH) | Int. width | Max. voltage | Noise level | Power supply | Rated capacity | Type | Weight | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9.536 496 | 1.00 | 585 mm | 1,600 x 810 x 1,170 mm | 810 mm | 1170 mm | 1600 mm | 645 mm | 1,520 x 585 x 645 mm | 1520 mm | 230 V | 60 db(A) | 230 V, 50...60 Hz | 550 W | ECO 1.5 | 140 kg | ||
| 9.536 498 | 1.00 | 585 mm | 1,000 x 810 x 1,170 mm | 810 mm | 1170 mm | 1000 mm | 645 mm | 920 x 585 x 645 mm | 920 mm | 230 V | 55 db(A) | 230 V, 50...60 Hz | 270 W | ECO 0.9 | 110 kg | ||
| 9.536 499 | 1.00 | 785 mm | 1,900 x 1,010 x 1,475 mm | 1010 mm | 1475 mm | 1900 mm | 950 mm | 1,820 x 785 x 950 mm | 1820 mm | 230 V | 60 db(A) | 230 V, 50...60 Hz | 550 W | ECO 1.8/95 | 170 kg | ||
| 9.536 497 | 1.00 | 585 mm | 1,300 x 810 x 1,170 mm | 810 mm | 1170 mm | 1300 mm | 645 mm | 1,220 x 585 x 645 mm | 1220 mm | 230 V | 55 db(A) | 230 V, 50...60 Hz | 270 W | ECO 1.2 | 125 kg | ||
| 9.536 495 | 1.00 | 585 mm | 1,900 x 810 x 1,170 mm | 810 mm | 1170 mm | 1900 mm | 645 mm | 1,820 x 585 x 645 mm | 1820 mm | 230 V | 60 db(A) | 230 V, 50...60 Hz | 550 W | ECO 1.8 | 160 kg |
