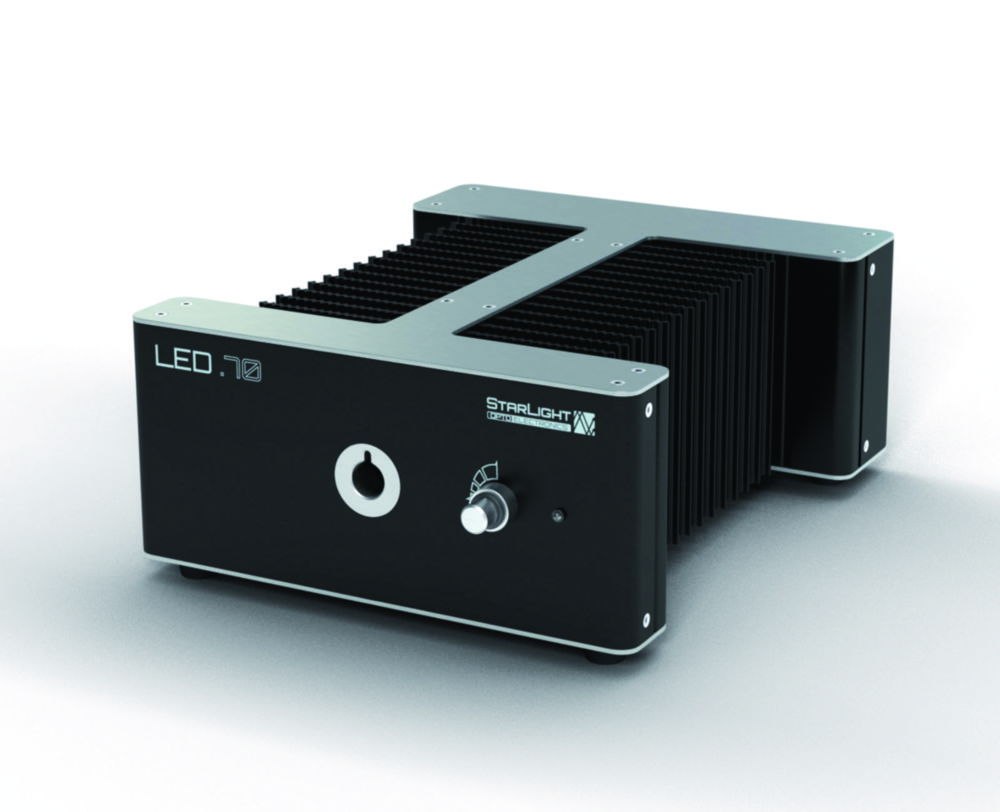

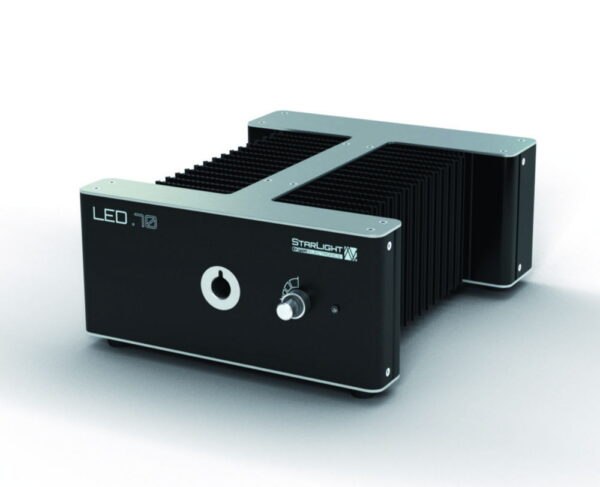

LED cold light sources LED.70
Black. These fanless high-power LED cold light sources are even suitable for high speed recordings. The passive cooling system enables a noiseless and vibration-free operation. Data for the lumen refer to the measurement at the end of a flexible, 1-arm fiber optic light guide with active diameter Ø 9 mm and length 1000 mm.
- Analogue brightness control (flicker-free)
- Homogenous illumination of the light guide
- Blinding protection by light guide detection
- Triple thermal fuse
- Compact and stable aluminium housing
- Operation time 50000 h
- Light guide access 15 mm
Scope of supply: LED cold light source LED.70, power cord, user manual
Toote variatsioonid
| Colour temperature | Depth | Dimensions (WxDxH) | Height | Illuminants | IP code | Light flux | Max. voltage | Min. voltage | Catalog number | Plug type | Power supply | Rated capacity | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6900 K | 283 mm | 230 x 283 x 116 mm | 116 mm | LED | IP 20 | 1500 lm | 240 V·AC | 100 V·AC | 4.668 037 | EU | 100 ... 240 V·AC, 50 ... 60 Hz | 100 W | 5.2 kg | 230 mm | 1.00 | ||
| 6900 K | 283 mm | 230 x 283 x 116 mm | 116 mm | LED | IP 20 | 1500 lm | 240 V·AC | 100 V·AC | 4.668 040 | CH | 100 ... 240 V·AC, 50 ... 60 Hz | 100 W | 5.2 kg | 230 mm | 1.00 | ||
| 6900 K | 283 mm | 230 x 283 x 116 mm | 116 mm | LED | IP 20 | 1500 lm | 240 V·AC | 100 V·AC | 4.668 039 | UK | 100 ... 240 V·AC, 50 ... 60 Hz | 100 W | 5.2 kg | 230 mm | 1.00 | ||
| 6900 K | 283 mm | 230 x 283 x 116 mm | 116 mm | LED | IP 20 | 1500 lm | 240 V·AC | 100 V·AC | 4.668 038 | US | 100 ... 240 V·AC, 50 ... 60 Hz | 100 W | 5.2 kg | 230 mm | 1.00 |
