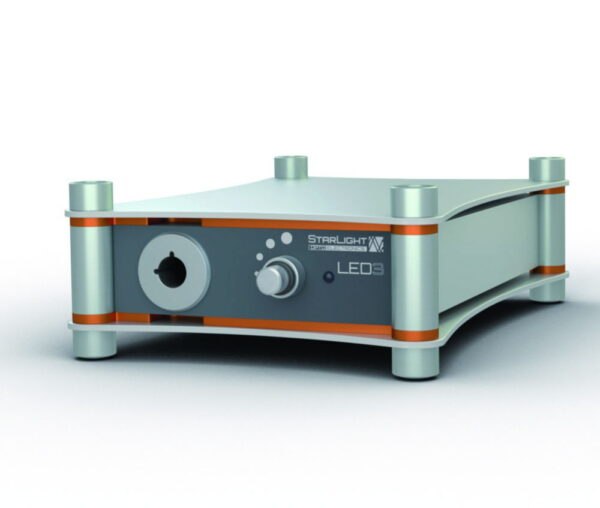

LED cold light sources LED3
Titanium-grey. The fan-less Led light sources are an energy saving replacement for conventional 150 W halogen cold light sources. The passive cooling system enables a noiseless and vibration-free operation. Data for the lumen refer to the measurement at the end of a flexible, 1-arm fiber optic light guide with active diameter Ø 9 mm and length 1000 mm.
- Adaptable to various light guides
- Flicker-free lighting
- Solid aluminium housing
- Stackable and horizontal positionable
- Operation time 50000 h
- Light guide access 15 mm
Scope of supply: LED cold light source LED3, multi adapter power supply (EU, UK, US), user manual
Toote variatsioonid
| Colour temperature | Depth | Dimensions (WxDxH) | Height | Illuminants | Light flux | Max. voltage | Min. voltage | Catalog number | Plug type | Power supply | Rated capacity | Type | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4000 K | 259 mm | 174 x 259 x 81 mm | 81 mm | LED | 630 lm | 240 V·AC | 100 V·AC | 4.668 035 | EU/UK/US | 100 ... 240 V·AC, 50 ... 60 Hz | 36 W | LED3-NW, CRI 80 | 3.7 kg | 174 mm | 1.00 | ||
| 5700 K | 259 mm | 174 x 259 x 81 mm | 81 mm | LED | 590 lm | 240 V·AC | 100 V·AC | 4.668 034 | EU/UK/US | 100 ... 240 V·AC, 50 ... 60 Hz | 36 W | LED3-PC, CRI 90 | 3.7 kg | 174 mm | 1.00 | ||
| 5700 K | 259 mm | 174 x 259 x 81 mm | 81 mm | LED | 730 lm | 240 V·AC | 100 V·AC | 4.668 033 | EU/UK/US | 100 ... 240 V·AC, 50 ... 60 Hz | 36 W | LED3-P, CRI 70 | 3.7 kg | 174 mm | 1.00 | ||
| 3000 K | 259 mm | 174 x 259 x 81 mm | 81 mm | LED | 630 lm | 240 V·AC | 100 V·AC | 4.668 036 | EU/UK/US | 100 ... 240 V·AC, 50 ... 60 Hz | 36 W | LED3-WW, CRI 80 | 3.7 kg | 174 mm | 1.00 |
