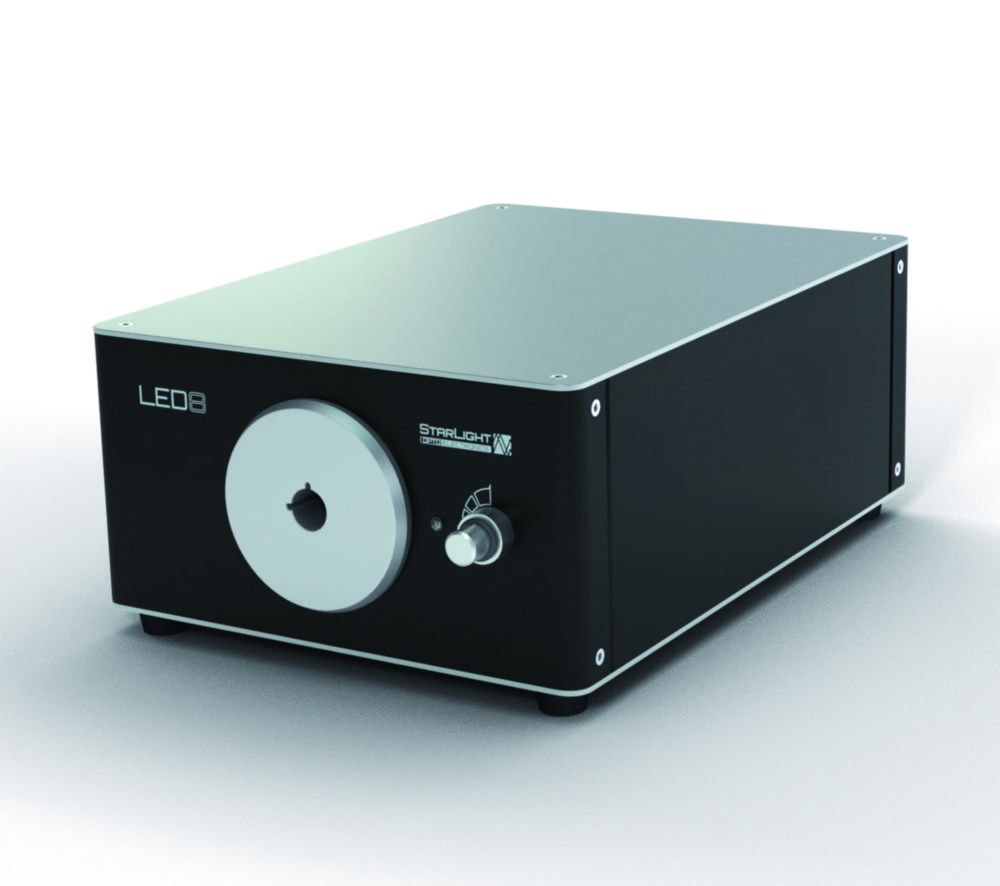

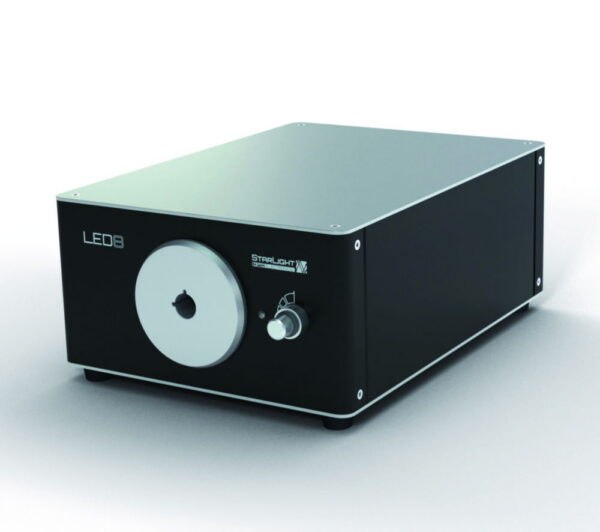

LED cold light sources LED8
Black. These high-power LED cold light sources are even suitable for high-speed recordings. Temperature fan control, for minimal noise disruption. Data for the lumen refer to the measurement at the end of a flexible, 1-arm fiber optic light guide with active diameter Ø 9 mm and length 1000 mm.
- Analogue brightness control (flicker-free)
- Homogenous illumination of the light guide
- Blinding protection by light guide detection
- Triple thermal fuse
- Compact and stable aluminium housing
- Stackable
- Operation time 50000 h
- Light guide access 15 mm
Scope of supply: LED cold light source LED8, power cord, user manual
Toote variatsioonid
| Colour temperature | Depth | Dimensions (WxDxH) | Height | Illuminants | IP code | Light flux | Max. voltage | Min. voltage | Catalog number | Plug type | Power supply | Rated capacity | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6900 K | 273 mm | 200 x 273 x 116 mm | 116 mm | LED | IP 20 | 1600 lm | 240 V·AC | 100 V·AC | 4.668 044 | CH | 100 ... 240 V·AC, 50 ... 60 Hz | 110 W | 2.3 kg | 200 mm | 1.00 | ||
| 6900 K | 273 mm | 200 x 273 x 116 mm | 116 mm | LED | IP 20 | 1600 lm | 240 V·AC | 100 V·AC | 4.668 041 | EU | 100 ... 240 V·AC, 50 ... 60 Hz | 110 W | 2.3 kg | 200 mm | 1.00 | ||
| 6900 K | 273 mm | 200 x 273 x 116 mm | 116 mm | LED | IP 20 | 1600 lm | 240 V·AC | 100 V·AC | 4.668 042 | US | 100 ... 240 V·AC, 50 ... 60 Hz | 110 W | 2.3 kg | 200 mm | 1.00 | ||
| 6900 K | 273 mm | 200 x 273 x 116 mm | 116 mm | LED | IP 20 | 1600 lm | 240 V·AC | 100 V·AC | 4.668 043 | UK | 100 ... 240 V·AC, 50 ... 60 Hz | 110 W | 2.3 kg | 200 mm | 1.00 |
