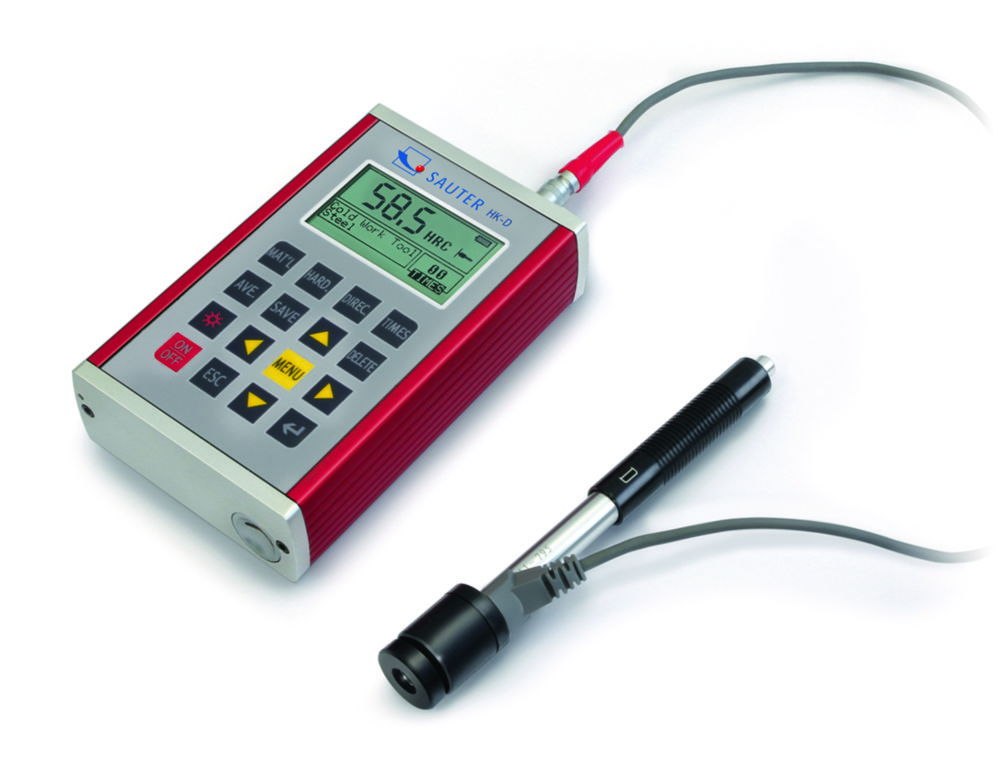

Leeb hardness tester, mobile
The Leeb hardness tester measures metallic samples and offers mobility and flexibility compared to stationary tabletop devices and testing devices with internal sensor.
- External impact sensor
- All measurement directions possible (360°) thanks to an automatic compensation function
- Internal memory for up to 600 data groups
- Mini statistics function: displays the measured result, the average value, the impact direction, date and time
- Measurement value display: Rockwell (Type A, B, C), Vickers (HV), Shore (HS), Leeb (HL), Brinell (HB)
- Automatic unit conversion: The measuring result is automatically converted into all specified hardness units
- Measuring with tolerance range (limit-setting function):Upper and lower limiting can be programmed
- Acoustic and visual signal
- Matrix display: Backlit multi-function display
- Robust metal housing
Scope of supply:
HK-D: Mobile Leeb hardness tester, hard carrying case
HK-DB: Mobile Leeb hardness tester, hard carrying case, standard block for calibration, hardness approx. 800 HLD
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Display | Height | Material housing | Measured range | Catalog number | Readability | Tolerance | Type | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 82 mm | 132 x 82 x 31 mm | Digital | 31 mm | Metal | 170 ... 960 HL | 4.676 256 | 1 HL | 1 % | HK-DB | 425 g | 132 mm | 1.00 | ||
| 82 mm | 132 x 82 x 31 mm | Digital | 31 mm | Metal | 170 ... 960 HL | 4.676 255 | 1 HL | 1 % | HK-D | 450 g | 132 mm | 1.00 |
