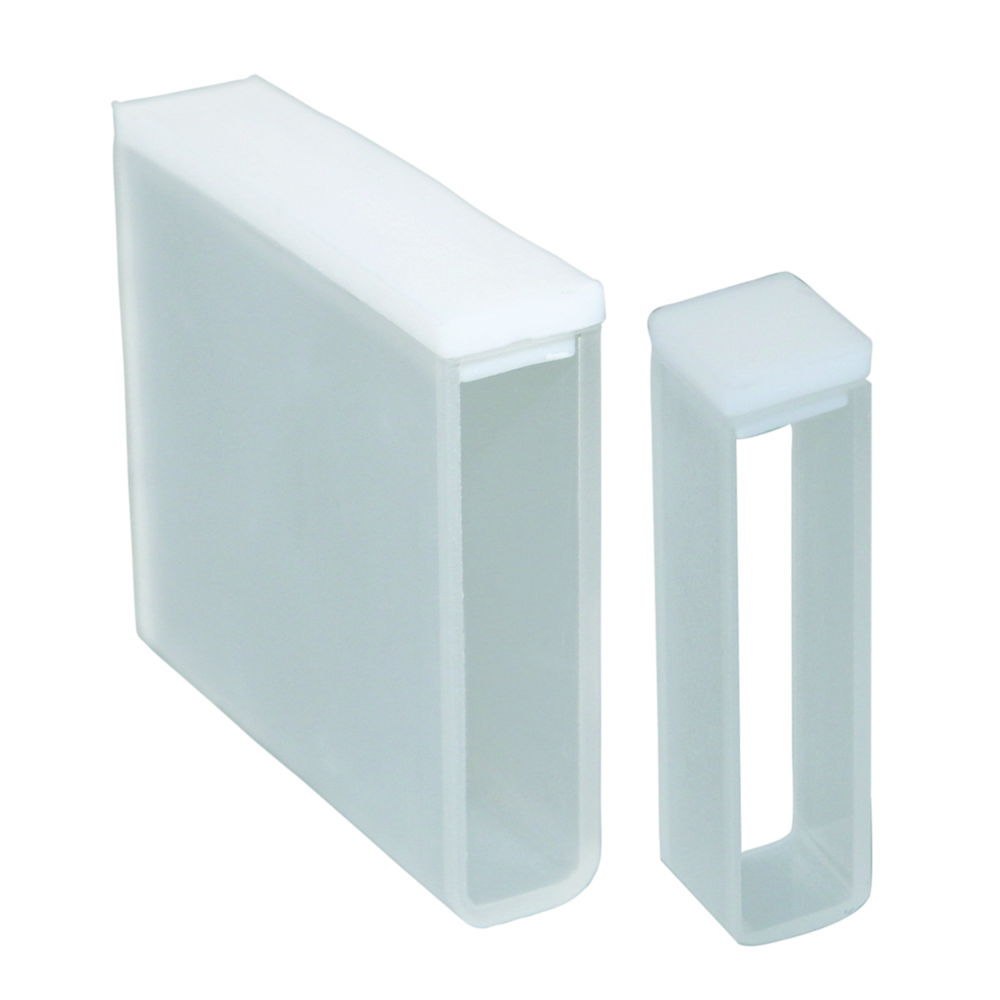

LLG-Cuvettes
LLG-Cuvettes are most frequently used in analytical laboratories.
They have two clear windows, two side walls and are available as optical glass or quartz variants. The walls and the base are polished inside and frosted outside. The thickness of the windows and the base is 1.25 mm. The overall height of standard type cells is 45 mm or 48 mm for those fitted with a stopper. Each cuvette is supplied with a PTFE lid.
- Optical Glass: 335 to 2500 nm
- Quartz: 200 to 2700 nm
Toote variatsioonid
| Catalog number | PK | Capacity | Material | Material closure | Max. capacity | Path length | Type of closure | Wavelength | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|
| 4.681 514 | 2.00 | 17.5 ml | Quartz glass | PTFE | 50 mm | Lid | 200...2700 nm | |||
| 4.681 516 | 4.00 | 17.5 ml | Special optical glass | PTFE | 50 mm | Lid | 335...2500 nm | |||
| 4.681 515 | 4.00 | 3.5 ml | Special optical glass | PTFE | 10 mm | Lid | 335...2500 nm | |||
| 4.681 513 | 2.00 | 3.5 ml | Quartz glass | PTFE | 10 mm | Lid | 200...2700 nm |
