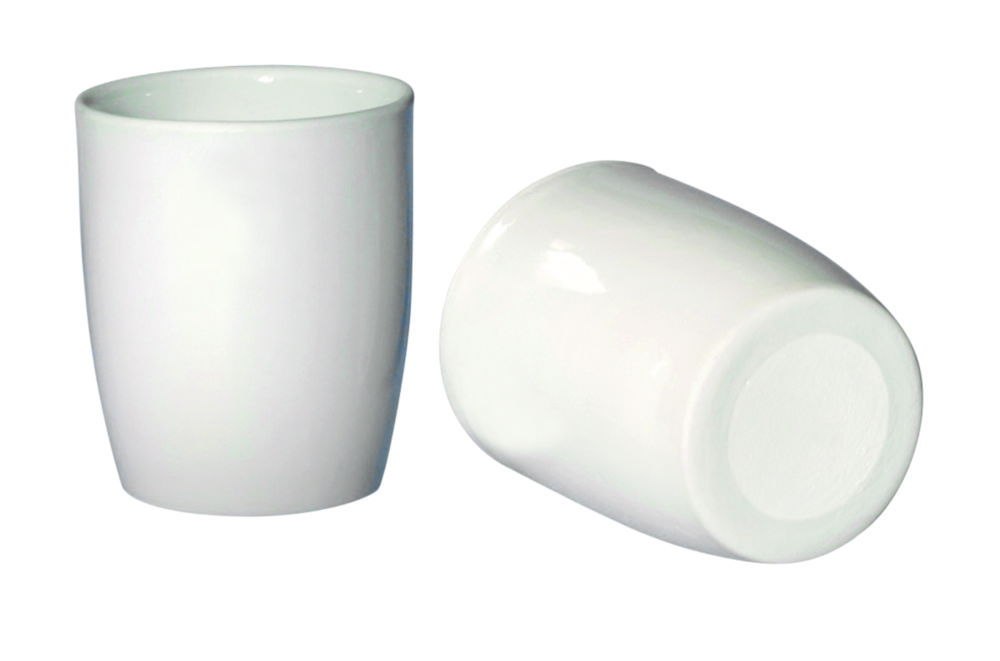

LLG-Filter crucibles, porcelain
Glazed. With porous bottom. According to DIN 12909. Temperature resistant up to 900 °C.
Toote variatsioonid
| Dimensions (ØxH) | Height | Material | Nominal capacity | Catalog number | Pore size | Standard | PK | Ø | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|
| 25 x 28 mm | 28 mm | Porcelain | 8 ml | 9.052 080 | 6 µm | DIN 12909 | 1.00 | 25 mm | ||
| 35 x 40 mm | 40 mm | Porcelain | 25 ml | 6.233 748 | 7 µm | DIN 12909 | 1.00 | 35 mm | ||
| 40 x 43 mm | 43 mm | Porcelain | 35 ml | 9.052 087 | 6 µm | DIN 12909 | 1.00 | 40 mm | ||
| 40 x 43 mm | 43 mm | Porcelain | 35 ml | 9.052 089 | 8 µm | DIN 12909 | 1.00 | 40 mm | ||
| 45 x 50 mm | 50 mm | Porcelain | 50 ml | 9.052 091 | 7 µm | DIN 12909 | 1.00 | 45 mm | ||
| 25 x 28 mm | 28 mm | Porcelain | 8 ml | 9.052 082 | 8 µm | DIN 12909 | 1.00 | 25 mm | ||
| 30 x 35 mm | 35 mm | Porcelain | 15 ml | 9.052 085 | 8 µm | DIN 12909 | 1.00 | 30 mm | ||
| 45 x 50 mm | 50 mm | Porcelain | 50 ml | 9.052 090 | 6 µm | DIN 12909 | 1.00 | 45 mm | ||
| 25 x 28 mm | 28 mm | Porcelain | 8 ml | 9.052 081 | 7 µm | DIN 12909 | 1.00 | 25 mm | ||
| 35 x 40 mm | 40 mm | Porcelain | 25 ml | 9.052 086 | 8 µm | DIN 12909 | 1.00 | 35 mm | ||
| 30 x 35 mm | 35 mm | Porcelain | 15 ml | 9.052 083 | 6 µm | DIN 12909 | 1.00 | 30 mm | ||
| 30 x 35 mm | 35 mm | Porcelain | 15 ml | 9.052 084 | 7 µm | DIN 12909 | 1.00 | 30 mm | ||
| 40 x 43 mm | 43 mm | Porcelain | 35 ml | 9.052 088 | 7 µm | DIN 12909 | 1.00 | 40 mm | ||
| 45 x 50 mm | 50 mm | Porcelain | 50 ml | 9.052 092 | 8 µm | DIN 12909 | 1.00 | 45 mm | ||
| 35 x 40 mm | 40 mm | Porcelain | 25 ml | 6.233 176 | 6 µm | DIN 12909 | 1.00 | 35 mm |
