LLG-General-purpose thermometers

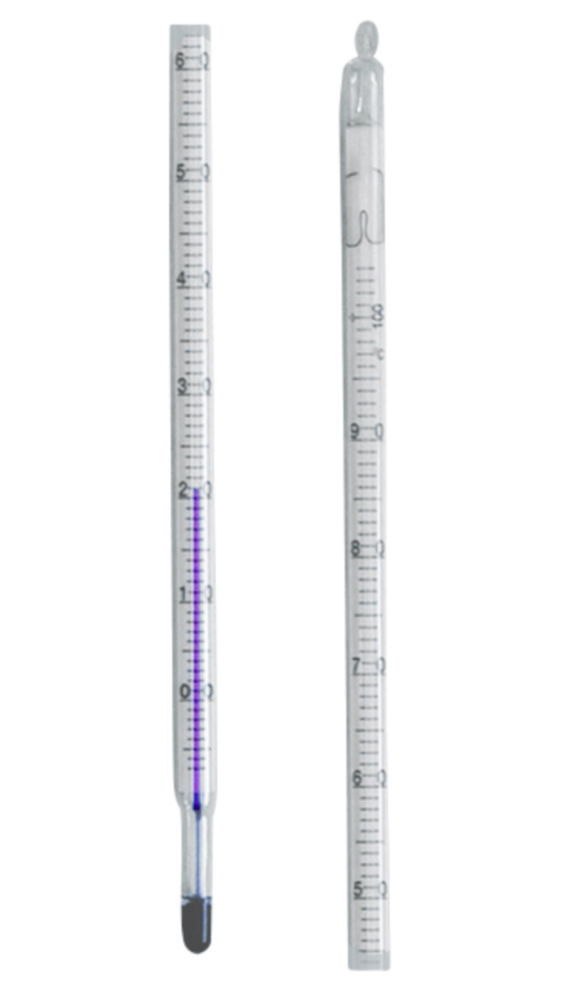

Enclosed-scale type, with eyelet. With uncoated, prismatic measuring capillary. Red spirit filling (except 9.235 265: blue). Immersion depth: total.
Note: The colour of these types (temperature range up to 200 and 250 °C) may fade after extended periods of use at high temperatures.
Toote variatsioonid
| Capillary | Colour filling | Division | Length | Max. Ø | Max. temperature | Min. temperature | Catalog number | Shape Thermometer | Temperature | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Uncoated, prismatic | Red | 1 °C | 260 mm | 8 mm | 150 °C | -10 °C | 9.235 255 | Enclosed scale | -10 ... 150 °C | 1.00 | ||
| Uncoated, prismatic | Red | 1 °C | 300 mm | 8 mm | 200 °C | -10 °C | 9.235 260 | Enclosed scale | -10 ... 200 °C | 1.00 | ||
| Uncoated, prismatic | Red | 1 °C | 260 mm | 8 mm | 100 °C | -10 °C | 9.235 250 | Enclosed scale | -10 ... 100 °C | 1.00 | ||
| Uncoated, prismatic | Blue | 1 °C | 300 mm | 8 mm | 250 °C | -10 °C | 9.235 265 | Enclosed scale | -10 ... 250 °C | 1.00 | ||
| Uncoated, prismatic | Red | 1 °C | 200 mm | 8 mm | 50 °C | -10 °C | 9.235 245 | Enclosed scale | -10 ... 50 °C | 1.00 |
