LLG-pH meter 7
The LLG-pH Meter 7 is an easy-to-use, robust table-top instrument for measuring pH and redox potential. The large color-touch-display and the intuitive, language-independent user interface ensure fast and easy use. Particularly suitable for routine applications in laboratories, production plants and schools.
- Available as set with gel combination electrode (“Made in Germany”) with temperature sensor
- Large color-touch-display with language-independent graphical user interface
- Automatic temperature compensation
- Memory for 500 values
- 3-point calibration
- Reminder function for upcoming calibrations
- BNC connection for the electrode
- RS232 interface for data transfer
- Electrode holder can be mounted left and right
Scope of supply:

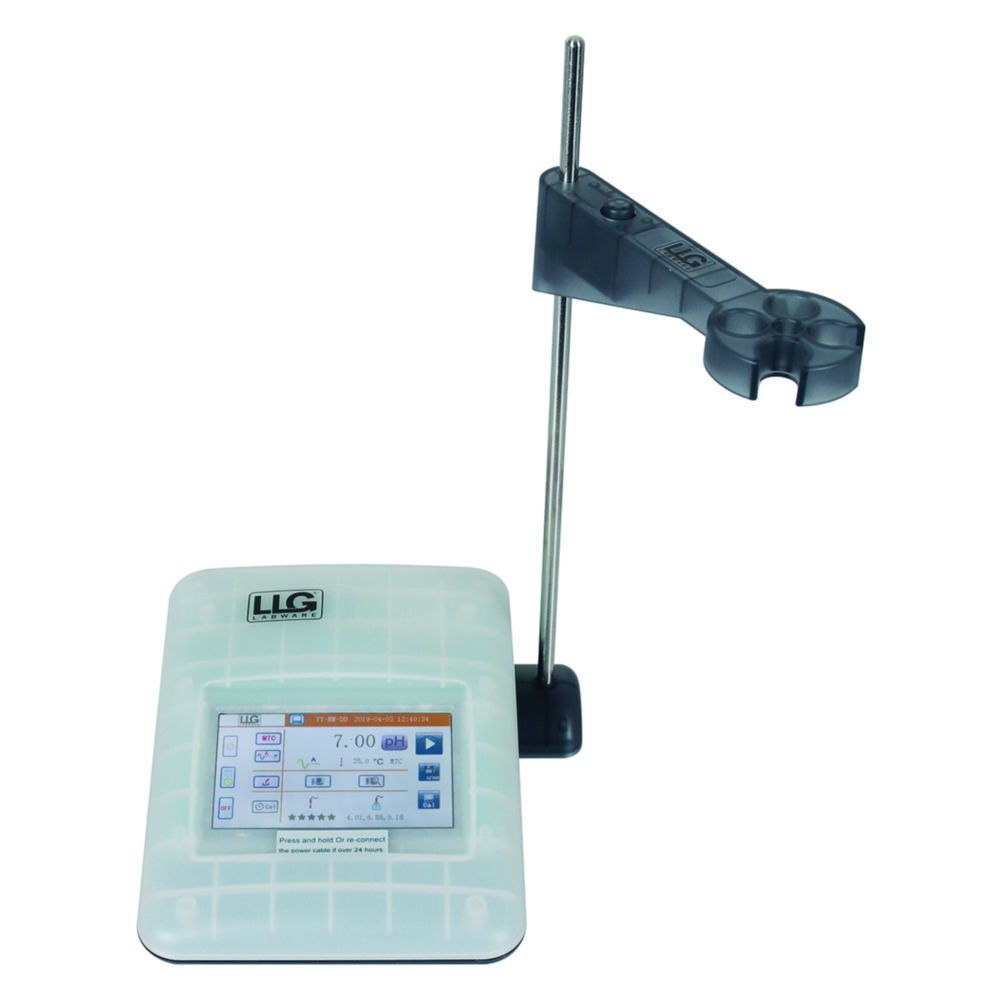

LLG-pH meter 7: pH meter, electrode holder, protective cover, power supply unit

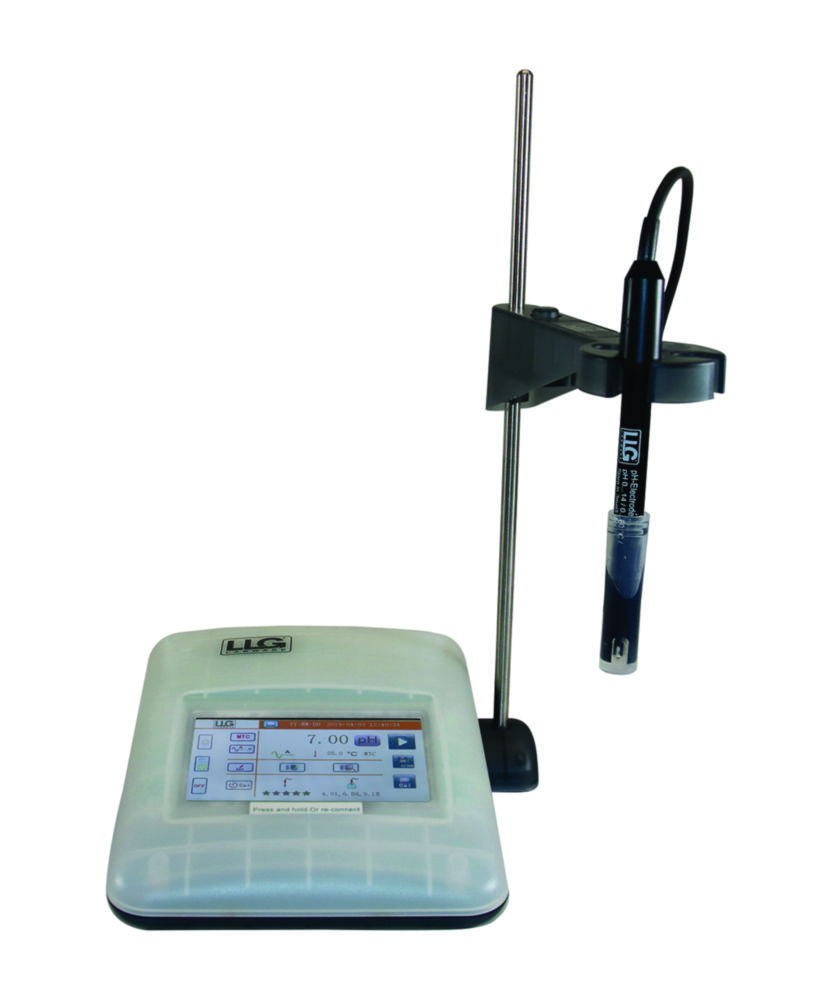

LLG-pH Meter 7 set: pH meter, combination electrode, electrode holder, protective cover, power supply unit
- Specifications
- pH range: 0 … 14
- pH resolution: 0.01
- pH accuracy: ±0,01
- Temperature range electrode: 0 … 80 °C
- Dimensions (W x D x H): 180 x 240 x 80 mm
- Weight: 0.7 kg
- Power supply: 9 V DC/1A
- IP code: IP 54
- Warranty: 3 years
Toote variatsioonid
| Type | Plug type | Catalog number | PK | Depth | Dimensions (WxDxH) | Height | Interfaces | IP code | Max. temperature | Max. voltage | Min. temperature | pH range | pH range accuracy | pH range resolution | Plug type | Power supply | Temperature | Type | Waranty | Weight | Width | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LLG-pH Meter 7 set | UK | 6.263 607 | 1.00 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||
| LLG-pH Meter 7 | UK | 6.263 606 | 1.00 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||
| UK plug for LLG-pH Meter 7 | UK | 6.263 634 | 1.00 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||
| - | - | 6.263 601 | 1.00 | 240 mm | 180 x 240 x 80 mm | 80 mm | RS232 | IP 54 | 80 °C | 9 V·DC | 0 °C | 0 ... 14 | ±0.01 | 0.01 | EU | 9 V·DC | 0 ... 80 °C | LLG-pH Meter 7 Set | 3 years | 0.7 kg | 180 mm | ||
| - | - | 6.263 600 | 1.00 | 240 mm | 180 x 240 x 80 mm | 80 mm | RS232 | IP 54 | 80 °C | 9 V·DC | 0 °C | 0 ... 14 | ±0.01 | 0.01 | EU | 9 V·DC | 0 ... 80 °C | LLG-pH Meter 7 | 3 years | 0.7 kg | 180 mm |
