Lovibond® Nessleriser Systems, Pt-Co/Hazen/APHA Scale

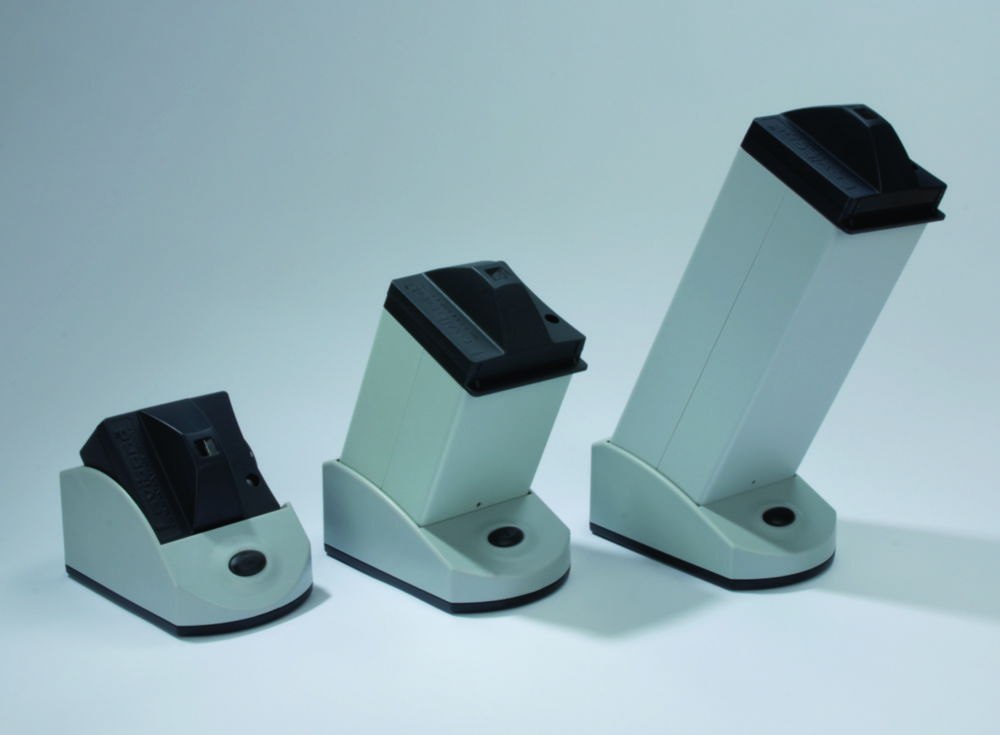

Lovibond^® Comparator 2000+ is a quality instrument for the visual analysis of colour intensity in analysis samples using Lovibond colour discs. The integral cell attachment enables cells with a depth of 40mm to be accepted. The Lovibond^® Nessleriser system provides greater depths by using corresponding accessory Nessler tubes. This enables the determination of concentrations below the detection limit of the Lovibond^® Comparator 2000+. The integral prism in the Lovibond^® Comparator 2000+ brings the glass standard of the colour discs and the colour samples optically into the field of view. The prism is hermetically sealed, preventing the lens from being contaminated. Both the Comparator 2000+ and the Nessleriser are designed in such a way that they compensate for cloudy or coloured water samples. Each device is available for use in daylight or in combination with the artificial daylight unit 2000.

• Model Apparatus included
• AF 325: Nessleriser 2150 with Daylight 2000 Lighting Unit and 113 mm (50ml) Nessler cylinders, Pt-Co discs NSH (10 to 90mg Pt/l), NSB (70 to 250mg Pt/l), stand for using Nessleriser with natural light.
• AF 328: Nessleriser 2250 with Daylight 2000 Lighting Unit and 250mm Nessler cylinders, Pt-Co discs CAA (0 to 30mg Pt/l), CAB (30 to 70mg Pt/l), stand for using Nessleriser with natural light.
• AF 329: Nessleriser 2150 with Daylight 2000 Lighting Unit and 113mm (50ml) Nessler cylinders, Nessleriser 2250 upgrade with 250mm Nessler cylinders, Pt-Co discs CAA (0 to 30mg Pt/l) CAB (30 to 70mg Pt/l), NSB (70 to 250mg Pt/l), stand for using Nessleriser with natural light.
• AF 330: Comparator 2000+ with Daylight 2000 Lighting Unit (EBC Version), EBC discs (4/14A, 2 – 6; 4/14B, 6 – 10; 4/14C, 10 – 18; 4/14D, 19 – 27), 2 x W680/OG/25 mm fused cells
• AF 334: Comparator 2000+ with Daylight 2000 Lighting Unit, Gardner discs (4/30 AS, 1 – 9; 4/30 BS, 10 – 18), 2 x W680/OG/10 mm fused cells
