Macro cells for absorption measurement, NIR-range, quartz glass Extended Range
Quartz glass Extended Range, Wavelength range: 200 – 3500 nm. Inside width 9.5 mm. Base thickness 1.5 mm.
Type A: with PTFE lid
Type B: with small glass lid

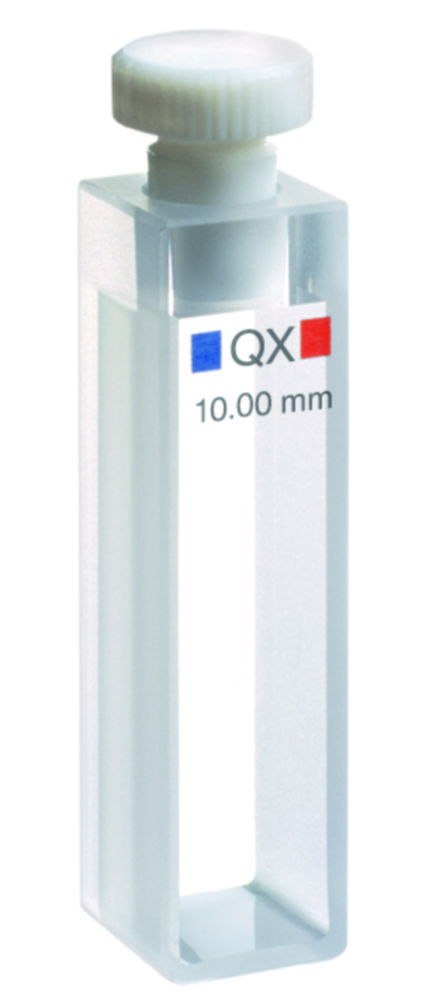

Type D: with PTFE stopper / from 40 mm with 2 PTFE stoppers
Toote variatsioonid
| Type | External dimensions (W x D x H) mm | Path length mm | Capacity µl | Catalog number | PK | Kogus | |
|---|---|---|---|---|---|---|---|
| b | 45 x 12.5 x 3.5 | 1 | 350 | 6.302 993 | 1.00 | ||
| b | 45 x 12.5 x 4.5 | 2 | 700 | 6.901 645 | 1.00 | ||
| D | 46 x 12.5 x 7.5 | 5 | 1750 | 6.072 791 | 1.00 | ||
| D | 52 x 12.5 x 3.5 | 1 | 350 | 6.800 848 | 1.00 | ||
| D | 46 x 12.5 x 12.5 | 10 | 3500 | 6.052 763 | 1.00 | ||
| a | 45 x 12.5 x 12.5 | 10 | 3500 | 6.086 375 | 1.00 | ||
| a | 45 x 12.5 x 7.5 | 5 | 1750 | 6.053 055 | 1.00 | ||
| a | 45 x 12.5 x 52.5 | 50 | 17500 | 6.078 779 | 1.00 | ||
| b | 45 x 12.5 x 3.5 | 1 (spectrally measured) | 350 | 6.267 219 | 1.00 | ||
| D | 46 x 12.5 x 12.5 | 10 (spectrally measured) | 3500 | 6.258 627 | 1.00 |
