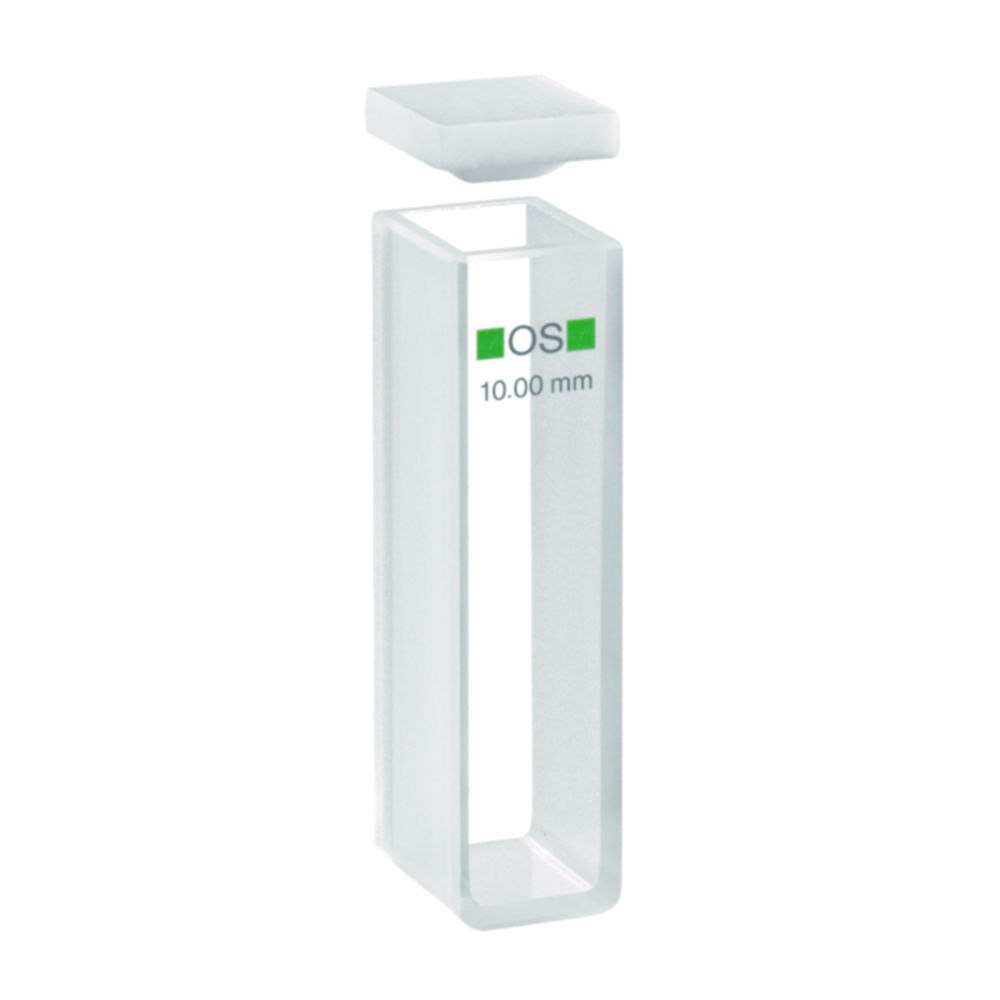

Macro cells for absorption measurement, VIS-range, special optical glass
Special optical glass 320 – 2500 nm. Inside width 9.5 mm. Base thickness 1.5 mm.
Type A: with PTFE-Falzdeckel
Type B: with small glass lid
Type C: with regular glass lid
Toote variatsioonid
| Type | External dimensions (W x D x H) mm | Path length mm | Capacity µl | Catalog number | PK | Kogus | |
|---|---|---|---|---|---|---|---|
| a | 12,5 x 12,5 x 45 | 10 (spectrally measured) | 3500 | 6.200 342 | 1.00 | ||
| b | 12,5 x 4,5 x 45 | 2 | 700 | 9.144 102 | 1.00 | ||
| a | 12,5 x 52,5 x 45 | 50 (spectrally measured) | 17500 | 6.702 167 | 1.00 | ||
| a | 12,5 x 22,5 x 45 | 20 | 7000 | 9.144 120 | 1.00 | ||
| a | 12,5 x 12,5 x 45 | 10 | 3500 | 9.144 110 | 1.00 | ||
| c | 12,5 x 102,5 x 45 | 100 | 35000 | 6.080 494 | 1.00 | ||
| a | 12,5 x 52,5 x 45 | 50 | 17500 | 9.144 150 | 1.00 | ||
| a | 12,5 x 42,5 x 45 | 40 | 14000 | 9.144 140 | 1.00 | ||
| a | 12,5 x 22,5 x 45 | 20 (polarimetrically measured) | 7000 | 6.241 381 | 1.00 | ||
| D | 12,5 x 52,5 x 46 | 50 (spectrally measured) | 17500 | 6.222 394 | 2.00 | ||
| D | 12,5 x 52,5 x 46 | 50 | 17500 | 9.144 550 | 1.00 | ||
| a | 12,5 x 22,5 x 45 | 20 (spectrally measured) | 7000 | 6.241 789 | 1.00 | ||
| D | 12,5 x 12,5 x 46 | 10 (spectrally measured) | 3500 | 6.401 355 | 1.00 | ||
| b | 12,5 x 3,5 x 45 | 1 | 350 | 9.144 101 | 1.00 | ||
| a | 12,5 x 7,5 x 45 | 5 | 1750 | 9.144 105 | 1.00 | ||
| D | 12,5 x 12,5 x 46 | 10 | 3500 | 9.144 510 | 1.00 | ||
| D | 12,5 x 7,5 x 46 | 5 | 1750 | 9.144 505 | 1.00 |
