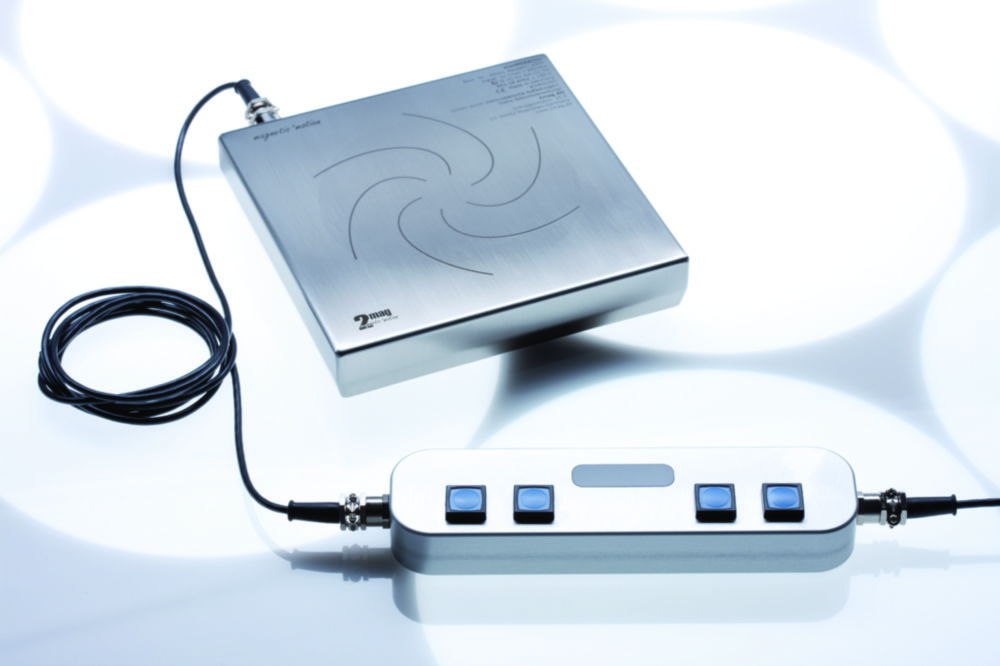

Magnetic stirrer atexMIXdrive 1 for external control
Explosion protected. 1 stirring position with maintenance-free and wear-free inductive drive for powerful mixing of liquids. Jerk-free stirring even at low speed.
- Very robust construction, easy to clean, with maximum resistance
- Completely sealed housing made from stainless steel
- Magnetic stirrer is water- dust- and germproof
- Magnetic stirrer submersible in water- or oil baths
- Suitable for use in CO2 incubators and ovens
- Certified acc. to ATEX II 2G Ex mb IIC T4 Gb
The magnetic stirrer can only be used together with acontrol unit, which have to be ordered separately. Magnetic stirrer, control unit and power supply are firmly connected to each other to ensure Ex protection.
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Height | IP code | Material housing | Max. voltage | Catalog number | Plug type | Power supply | Rated capacity | Type | Weight | Width | With timer | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 180 mm | 180 x 180 x 38 mm | 38 mm | IP 68 | Stainless steel | 48 V·DC | 6.238 005 | EU | 48 V·DC | 20 W | atexMIXdrive 1 | 3500 g | 180 mm | No | 1.00 | ||
| 180 mm | 180 x 180 x 38 mm | 38 mm | IP 68 | Stainless steel | 48 V·DC | 6.311 203 | UK | 48 V·DC | 20 W | atexMIXdrive 1 | 3500 g | 180 mm | No | 1.00 |
