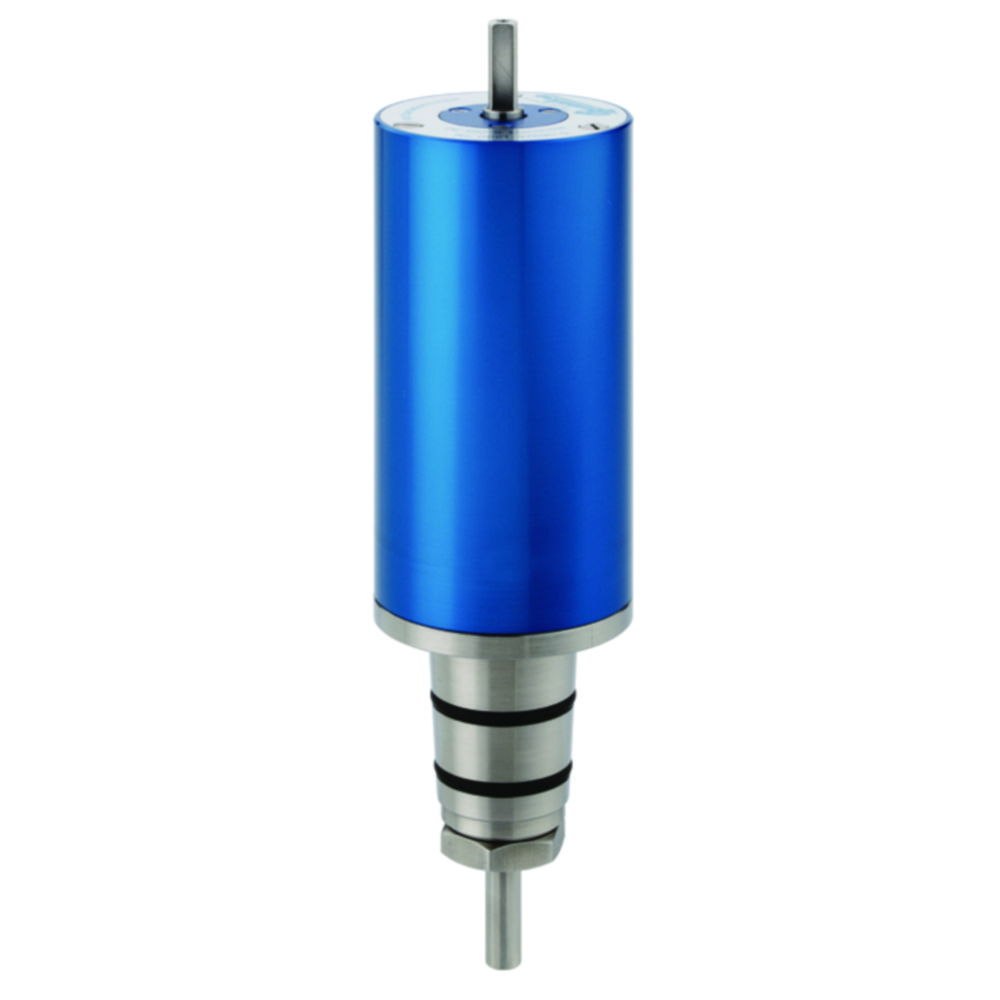

Magnetic stirrer couplings with ground joint
Stirrer head with a permanent magnetic coupling for mixing applications under vacuum. No straight-through shaft, no shaft sealing rings required as the torque is provided contactless by magnetic force.
Speed: 2500 rpm
Material: 1.4435 (AISI 316L)
Seal: FKM
Bearing: Ball bearing made of stainless steel
Drive shaft supplied with 6 mm external square stub.
Toote variatsioonid
| Type | Torque Ncm | Joint size NS | Volume ml | Temp. range °C | Viscosity range mPas | Catalog number | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|
| BUK K40 S1 | 40 | 29/32 | 1000 | 240 | 1500 | 9.779 202 | 1.00 |
