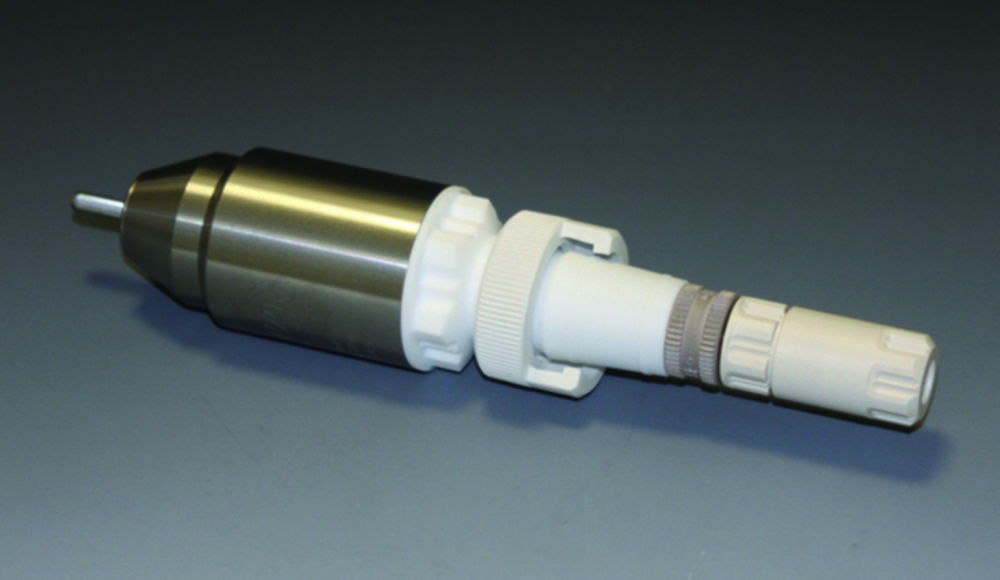

Magnetic Stirrer Heads P-MRK
Ideal stirrer head for PTFE-jacketed stirrer shafts from BOLA. Consisting of capsuled drive shaft (stainless steel) with ball bearings, rotor and lower bearing made of PTFE/PEEK and a hollow shaft made of borosilicate glass. Requires little space due to compact construction.No leakage or memory effects due to non-porous, welded rotor. Compression fittings for safe fixing of stirrer shaft and optimum power transmission. Joint-Cone with nut (Safe-Lab) for easy locking and unlocking of the ground joint. Square size 6mm for accepting an agitator or a stirrer coupling. Insertion length of shaft 95mm. Drive shaft outside diameter 50mm.
- gastight stirrer head for perfect vacuum
- stirrer shaft’s height adjustable, approx. 40mm
- also suitable for shortened stirrer shafts
- powerful transmission of up to 90Ncm
- excellent chemical resistance
- all products which are exposed to the medium do not contain any metals
- no grease required / save to run dry
- high speed of up to max. 1.500rpm
- drive shaft fixed for your safety
- high durability
- easy disassembly of all parts for cleaning
Toote variatsioonid
| Catalog number | PK | For ground joint | Length | Material | Max. temperature | Min. temperature | Temperature | Kogus | |
|---|---|---|---|---|---|---|---|---|---|
| 9.197 205 | 1.00 | NS 29/32 | 145 mm | Glass/PTFE | 240 °C | 100 °C | -100 ... 240 °C | ||
| 9.197 206 | 1.00 | NS 29/32 | 145 mm | Glass/PTFE | 240 °C | 100 °C | -100 ... 240 °C | ||
| 9.197 207 | 1.00 | NS 45/40 | 145 mm | Glass/PTFE | 240 °C | 100 °C | -100 ... 240 °C |
