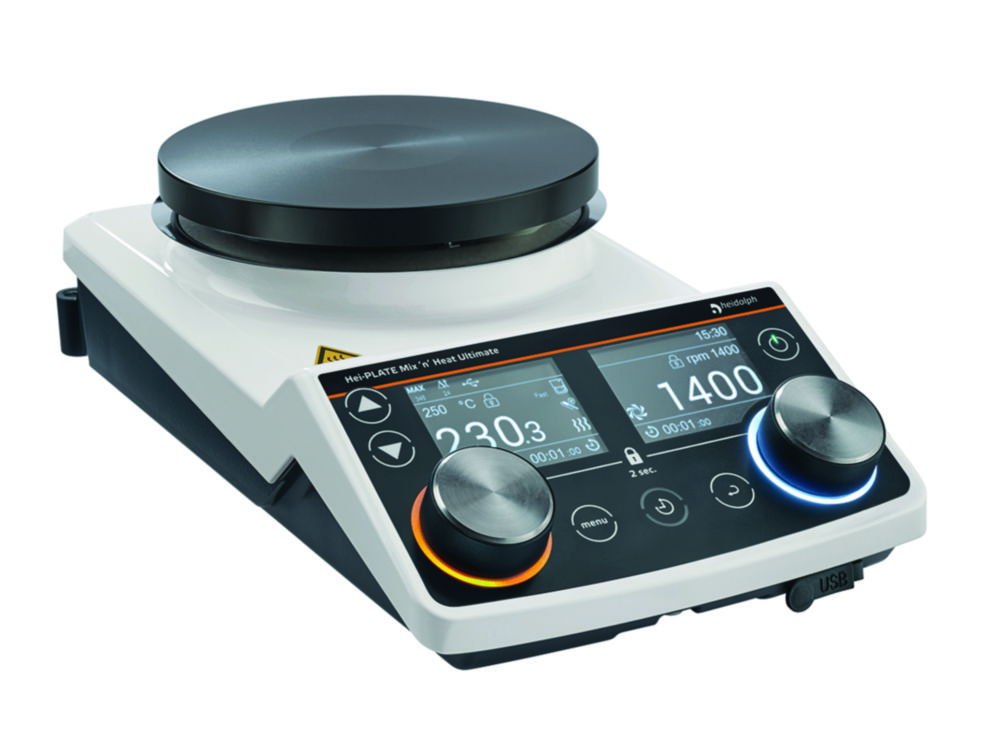

Magnetic stirrer Hei-PLATE Mix’n’Heat Ultimate
Magnetic stirrer with various connection options for data logging, as well as remote control and monitoring via PC. RS-232 and USB-B ports enable control via the integrated Hei-PROCESS solution. The device can be integrated into the Hei-CONTROL Pro software via the LAN interface. The USB-A interface at the front allows data logging via USB stick, and the USB-C interface connects the magnetic stirrer to the electric lab jack.
- User-friendly menu navigation
- Display and timer per main function (stirring and heating)
- Different heating modes (FAST, PRECISE, PRECISE+)
- Connection for optional temperature sensor Pt1000 and double sensor Pt1000
- Three-stage setting of the stirring speed (start-up behaviour)
- Adjustable direction of rotation of the magnetic stirring bar
- Automatic stir bar detection
- Locking function of the push-and-rotary controls prevents accidental changing of the set values
- Visual residual heat indicator at temperatures above 50 °C protects against burns
- Patented Kera-Disk® plate made of anodised aluminium
Toote variatsioonid
| Depth | <th class='ColourDisplay | Heating capacity | Height | IP code | Max. speed | Min. speed | Catalog number | Plug type | Rated capacity | Type | Weight | Width | With timer | PK | Max. voltage | Dimensions (WxDxH) | Power supply | Speed | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 299 mm | <td data-title='ColourDigital | 800 W | 106 mm | IP 42 | 1400 1/min | 100 1/min | 7.984 580 | EU | 825 W | Hei-PLATE Mix'n'Heat Ultimate | 3 kg | 168 mm | Yes | 1.00 | 230 V | 168 x 299 x 106 mm | 230 V, 50...60 Hz | 100 ... 1400 1/min |
