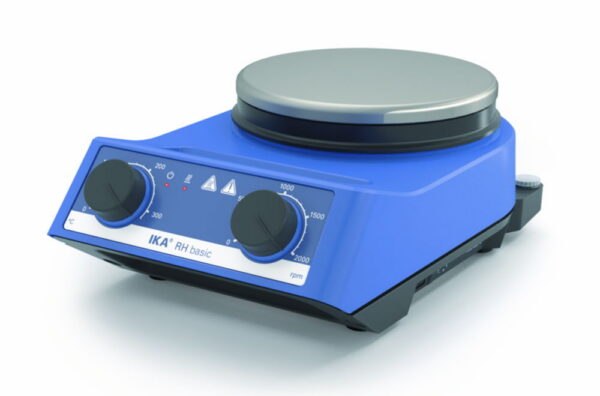

Magnetic stirrers RH basic
With stainless steel compound hot plate, which ensures rapid heating.
- Specifications
- Max. stirring quantity (H2O): 15l
- Motor rating input / output: 15 / 2 W
- Speed range: 50…2000 min-1
- Speed display RH basic / RH digital: scale / LED
- Heat output: 600 W
- Heating rate (1l H2O): 6K/min
-
Temperature range min. / max.
Setting accuracy RH digital: 50 to 320 °C
± 5K - Adjustable safety circuit min. / max.: 50 to 370 °C
-
Connection for ext. temp. sensor:
Control accuracy with sensor: DIN 12878
± 1K - ETS-D5 / ETS-D6: ± 0.5K / ± 0.2 K
- Set-up plate: Stainless steel 1.4301, diam. 135 mm
- Dimensions (W x D x H): 160 x 246 x 90 mm
- Weight: 2.8 kg
-
Protection class acc. to DIN EN 60529:
Power supply: IP 21
220-240 V, 50/60 Hz
Toote variatsioonid
| Depth | Display | Heating capacity | Height | IP code | Max. heating rate | Max. speed | Min. speed | Catalog number | Plug type | Type | Weight | Width | PK | With timer | Max. voltage | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 246 mm | Analogue | 600 W | 90 mm | IP 21 | 6 °C/min | 2000 1/min | 100 1/min | 9.720 411 | EU | RH basic | 3135 g | 160 mm | 1.00 | No | 230 V | ||
| 246 mm | Analogue | 600 W | 90 mm | IP 21 | 6 °C/min | 2000 1/min | 100 1/min | 9.720 412 | UK | RH basic | 3135 g | 160 mm | 1.00 | No | 230 V | ||
| 246 mm | Analogue | 600 W | 90 mm | IP 21 | 6 °C/min | 2000 1/min | 100 1/min | 9.720 413 | CH | RH basic | 3135 g | 160 mm | 1.00 | No | 230 V |
