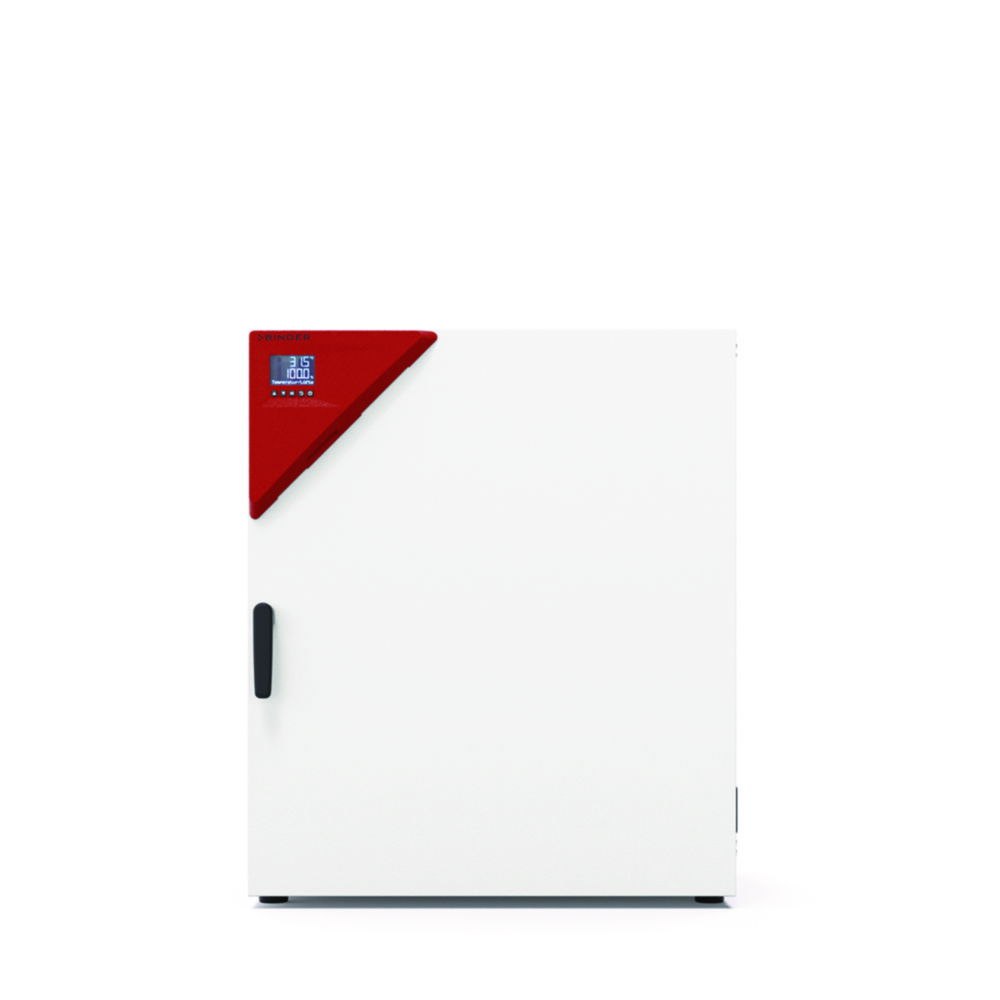

Material test chamber FP series
The material test chambers with mechanical convection reliably ensure short drying times and fast heating. Thanks to programme functions and adjustable fan, temperature and recirculation conditions can be individually controlled even over a longer period of time.
- High temperature accuracy due to APT.line™ technology
- Adjustable fan speed
- Controller with interval and real-time programming
- User-friendly controller with large display
- Electromechanical control of the exhaust air flap
- Class 2 independent adjustable temperature safety device (DIN 12880) and class 3.1 independent temperature safety device (DIN 12880) with visual/acoustic alarm selectable on controller
- Models up to 115 l stackable
- Ergonomic handle design
- Computer interface: Ethernet
- Internal data logger, measured values can be read out in open format via USB
Toote variatsioonid
| Depth int. | External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Height int. | Internal dimensions (WxDxH) | Int. width | Max. no. of inserts | Max. temperature | Max. voltage | Min. temperature | Nominal capacity | Catalog number | Power supply | Rated capacity | Temp. Stability | Temperature | Temperature | Type | Weight | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 342 mm | 560 x 596 x 622 mm | 596 mm | 622 mm | 560 mm | 440 mm | 400 x 342 x 440 mm | 400 mm | 4 | 300 °C | 120 V | -10 °C | 60 l | 9.883 715 | 120 V, 60 Hz | 1200 W | ±0,4 K (150 °C) | RT | RT+10 ... 300 °C | FP 56UL | 41 kg | 1.00 | ||
| 512 mm | 810 x 786 x 962 mm | 786 mm | 962 mm | 810 mm | 780 mm | 650 x 512 x 780 mm | 650 mm | 8 | 300 °C | 230 V | -10 °C | 259 l | 6.324 753 | 230 V, 50...60 Hz | 2500 W | ±0,4 K (150 °C) | RT | RT+10 ... 300 °C | FP 260 | 82 kg | 1.00 | ||
| 574 mm | 1,160 x 816 x 1590 mm | 816 mm | 1590 mm | 1160 mm | 1300 mm | 1,000 x 574 x 1300 mm | 1000 mm | 16 | 300 °C | 400 V·3/N/PE | +12 °C | 741 l | 9.883 714 | 400 V·3/N/PE, 50/60 Hz | 4500 W | ±0,6 K (150 °C) | RT | RT+12 ... 300 °C | FP 720 | 166 kg | 1.00 | ||
| 383 mm | 714 x 636 x 732 mm | 636 mm | 732 mm | 714 mm | 550 mm | 550 x 383 x 550 mm | 550 mm | 5 | 300 °C | 230 V | -10 °C | 116 l | 9.883 711 | 230 V, 50...60 Hz | 1400 W | ±0,3 K (150 °C) | RT | RT+10 ... 300 °C | FP 115 | 55 kg | 1.00 | ||
| 574 mm | 1,160 x 816 x 1590 mm | 816 mm | 1590 mm | 1160 mm | 1300 mm | 1,000 x 574 x 1300 mm | 1000 mm | 16 | 300 °C | 208 V·3/N/PE | +12 °C | 741 l | 9.883 719 | 208 V·3/N/PE, 60 Hz | 4500 W | ±0,6 K (150 °C) | RT | RT+12 ... 300 °C | FP 720UL | 166 kg | 1.00 | ||
| 342 mm | 560 x 596 x 622 mm | 596 mm | 622 mm | 560 mm | 440 mm | 400 x 342 x 440 mm | 400 mm | 4 | 300 °C | 230 V | -10 °C | 60 l | 9.883 710 | 230 V, 50...60 Hz | 1200 W | ±0,4 K (150 °C) | RT | RT+10 ... 300 °C | FP 56 | 41 kg | 1.00 | ||
| 383 mm | 714 x 636 x 732 mm | 636 mm | 732 mm | 714 mm | 550 mm | 550 x 383 x 550 mm | 550 mm | 5 | 300 °C | 120 V | -10 °C | 116 l | 9.883 716 | 120 V, 60 Hz | 1400 W | ±0,3 K (150 °C) | RT | RT+10 ... 300 °C | FP 115UL | 55 kg | 1.00 | ||
| 512 mm | 810 x 786 x 962 mm | 786 mm | 962 mm | 810 mm | 780 mm | 650 x 512 x 780 mm | 650 mm | 8 | 300 °C | 240 V | -10 °C | 259 l | 9.883 717 | 240 V, 60 Hz | 2500 W | ±0,4 K (150 °C) | RT | RT+10 ... 300 °C | FP 260UL | 82 kg | 1.00 |
