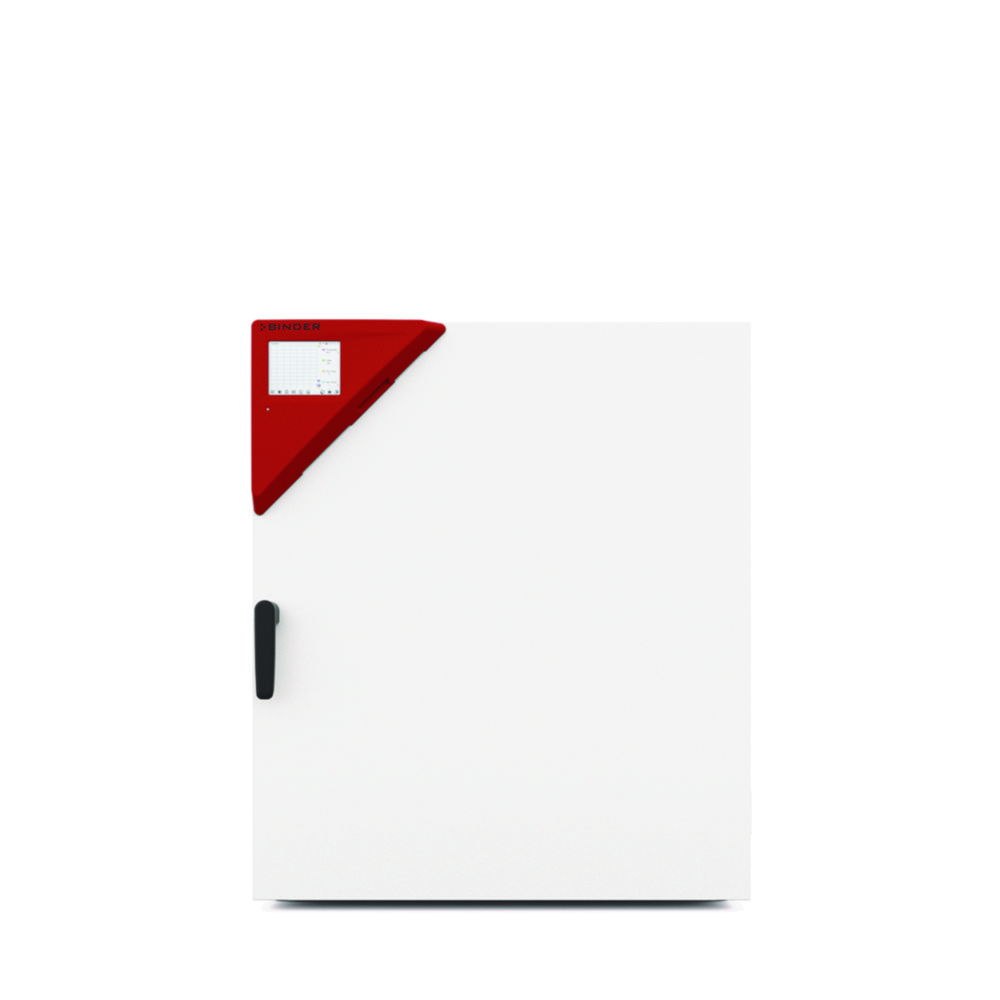

Material test chamber M
The material test chambers are suitable for material testing and ageing tests thanks to their versatile programming options. Powerful fan with high air flow rate ensures fast heat-up.
- High temperature accuracy thanks to APT.line™ technology with increased heating output
- Reinforced fan with adjustable speed
- Electromechanical control of the exhaust air flap
- Touchscreen controller with time-segment and real-time programming
- Class 2 independent adjustable temperature safety device (DIN 12880) and class 3.1 independent temperature safety device (DIN 12880) with visual/acoustic alarm available for selection on the controller
- Failsafe function-backup sensor Pt 100
- Internal data logger, measured values can be read out in open format via USB
- Ethernet interface
- 2 chrome-plated racks
Toote variatsioonid
| Depth int. | External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Height int. | Internal dimensions (WxDxH) | Int. width | Max. no. of inserts | Max. temperature | Max. voltage | Min. temperature | Nominal capacity | Catalog number | Plug type | Power supply | Rated capacity | Temp. Stability | Temperature | Temperature | Type | Weight | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 375 mm | 710 x 636 x 732 mm | 636 mm | 732 mm | 710 mm | 550 mm | 550 x 375 x 550 mm | 550 mm | 5 | 300 °C | 230 V | +23 °C | 113 l | 4.705 573 | EU | 230 V, 50...60 Hz | 2.4 kW | ±0,2 K (150 °C) | RT | RT+23 ... 300 °C | M 115 | 58 kg | 1.00 | ||
| 505 mm | 810 x 786 x 962 mm | 786 mm | 962 mm | 810 mm | 780 mm | 650 x 505 x 780 mm | 650 mm | 8 | 300 °C | 400 V·3/N/PE | 14 °C | 256 l | 4.705 574 | CEE | 400 V·3/N/PE, 50/60 Hz | 3.1 kW | ±0,4 K (150 °C) | RT | RT+14 ... 300 °C | M 260 | 86 kg | 1.00 | ||
| 335 mm | 560 x 596 x 622 mm | 596 mm | 622 mm | 560 mm | 440 mm | 400 x 335 x 440 mm | 400 mm | 4 | 300 °C | 230 V | +23 °C | 59 l | 6.521 509 | EU | 230 V, 50...60 Hz | 2 kW | ±0,2 K (150 °C) | RT | RT+23 ... 300 °C | M 56 | 43 kg | 1.00 | ||
| 565 mm | 1,160 x 816 x 1590 mm | 816 mm | 1590 mm | 1160 mm | 1300 mm | 1,000 x 565 x 1300 mm | 1000 mm | 16 | 300 °C | 400 V·3/N/PE | 14 °C | 735 l | 4.705 575 | CEE | 400 V·3/N/PE, 50/60 Hz | 6 kW | ±0,6 K (150 °C) | RT | RT+14 ... 300 °C | M 720 | 170 kg | 1.00 |
