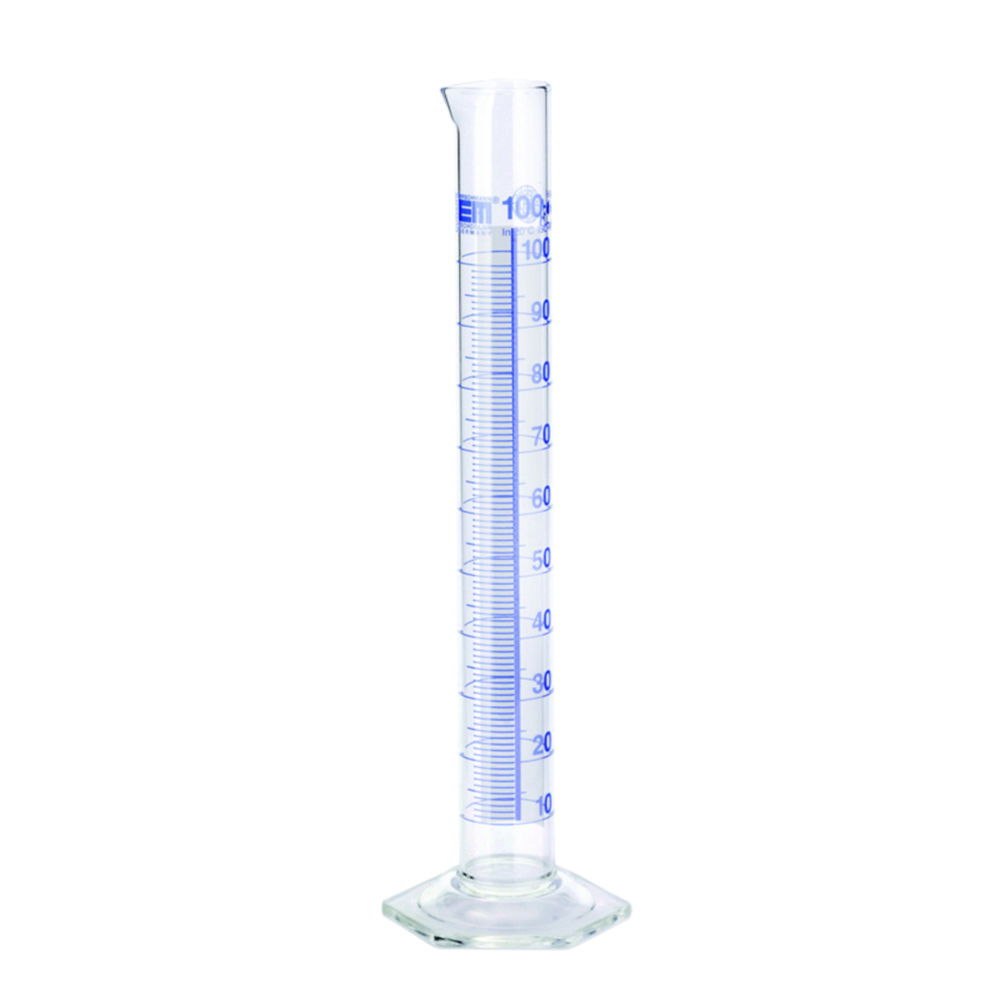

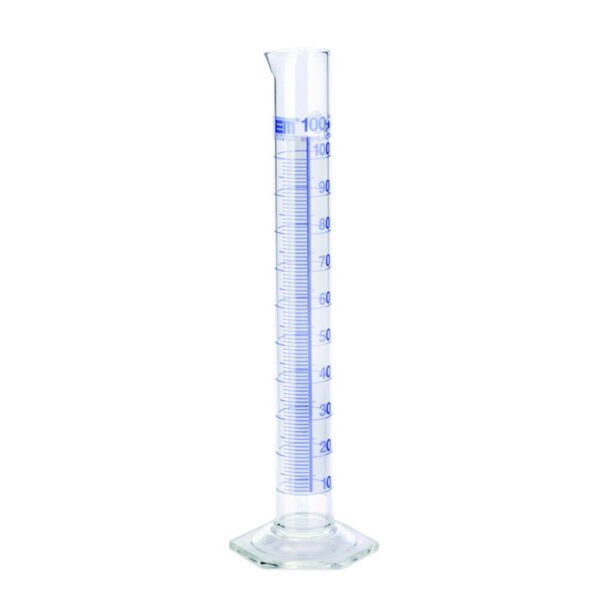

Measuring Cylinder, DURAN®, class A, Blue Graduation
Schellbach stripe for enhanced legibility and exact meniscus configuration, acc. to DIN EN ISO 4788. Calibrated for IN.
- Certified conformity
- With dated batch identification
- Main point ring graduation
- With spout
- Hexagonal glass socket
- Additional batch certificates can be generated and printed at any time free of charge at www.hirschmannlab.com.
Toote variatsioonid
| Colour graduation | Division | Height | Nominal capacity | Catalog number | Standard | Tolerance | With spout | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|
| Blue | 1 ml | 260 mm | 100 ml | 6.083 666 | DIN EN ISO 4788 | 0.5 ml | Yes | 1.00 | ||
| Blue | 0.2 ml | 140 mm | 10 ml | 6.092 836 | DIN EN ISO 4788 | 0.1 ml | Yes | 1.00 | ||
| Blue | 0.5 ml | 170 mm | 25 ml | 6.080 672 | DIN EN ISO 4788 | 0.25 ml | Yes | 1.00 | ||
| Blue | 5 ml | 390 mm | 500 ml | 7.200 406 | DIN EN ISO 4788 | 2.5 ml | Yes | 1.00 | ||
| Blue | 20 ml | 500 mm | 2000 ml | 6.510 192 | DIN EN ISO 4788 | 1,0 ml | Yes | 1.00 | ||
| Blue | 1 ml | 470 mm | 1000 ml | 6.510 191 | DIN EN ISO 4788 | 5 ml | Yes | 1.00 | ||
| Blue | 0.1 ml | 115 mm | 5 ml | 7.200 404 | DIN EN ISO 4788 | 0.05 ml | Yes | 1.00 | ||
| Blue | 1 ml | 200 mm | 50 ml | 6.083 013 | DIN EN ISO 4788 | 0.5 ml | Yes | 1.00 | ||
| Blue | 2 ml | 335 mm | 250 ml | 6.082 194 | DIN EN ISO 4788 | 1 ml | Yes | 1.00 |
