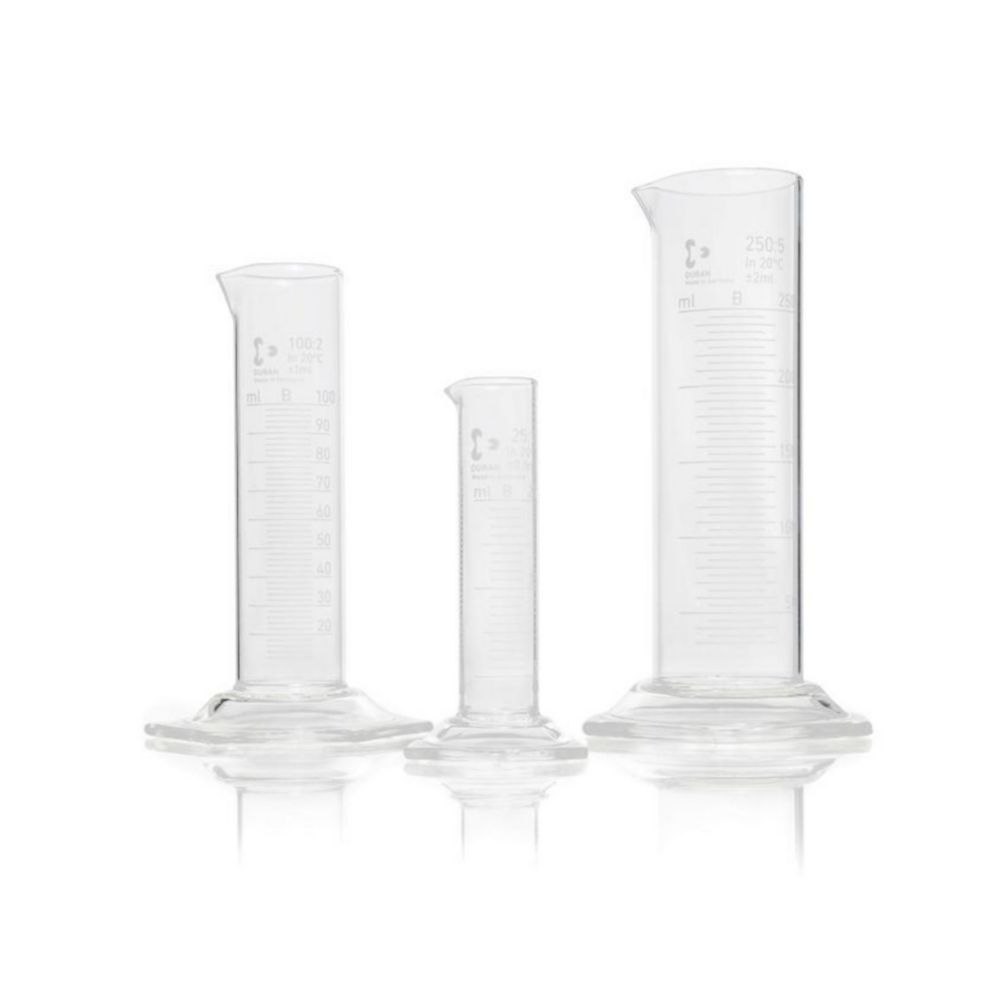

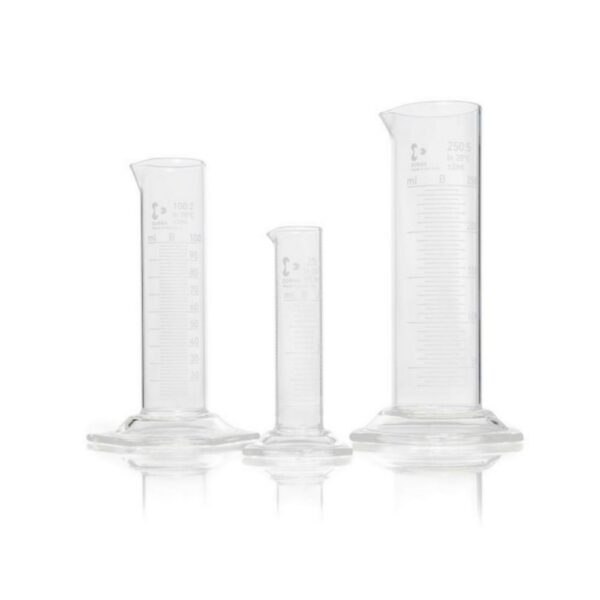

Measuring cylinders DURAN®, low form, class B, white graduations
- Calibrated to contain IN
- With spout and hexagonal base
- Short line
- DIN EN ISO 4788
Toote variatsioonid
| Colour graduation | Ø | Division | Height | Nominal capacity | Catalog number | Standard | Tolerance | With spout | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| White | 105 mm | 50 ml | 340 mm | 2000 ml | 7.021 217 | DIN EN ISO 4788 | 2,0 ml | Yes | 1.00 | ||
| White | 65 mm | 10 ml | 250 mm | 500 ml | 7.021 215 | DIN EN ISO 4788 | 5 ml | Yes | 1.00 | ||
| White | 39 mm | 2 ml | 165 mm | 100 ml | 7.021 213 | DIN EN ISO 4788 | 1 ml | Yes | 1.00 | ||
| White | 85 mm | 20 ml | 285 mm | 1000 ml | 7.021 216 | DIN EN ISO 4788 | 1,0 ml | Yes | 1.00 | ||
| White | 54 mm | 5 ml | 195 mm | 250 ml | 7.021 214 | DIN EN ISO 4788 | 2 ml | Yes | 1.00 | ||
| White | 25 mm | 1 ml | 115 mm | 25 ml | 7.021 211 | DIN EN ISO 4788 | 0.5 ml | Yes | 1.00 | ||
| White | 21 mm | 1 ml | 90 mm | 10 ml | 7.021 210 | DIN EN ISO 4788 | 0.2 ml | Yes | 1.00 | ||
| White | 29 mm | 2 ml | 145 mm | 50 ml | 7.021 212 | DIN EN ISO 4788 | 1 ml | Yes | 1.00 |
