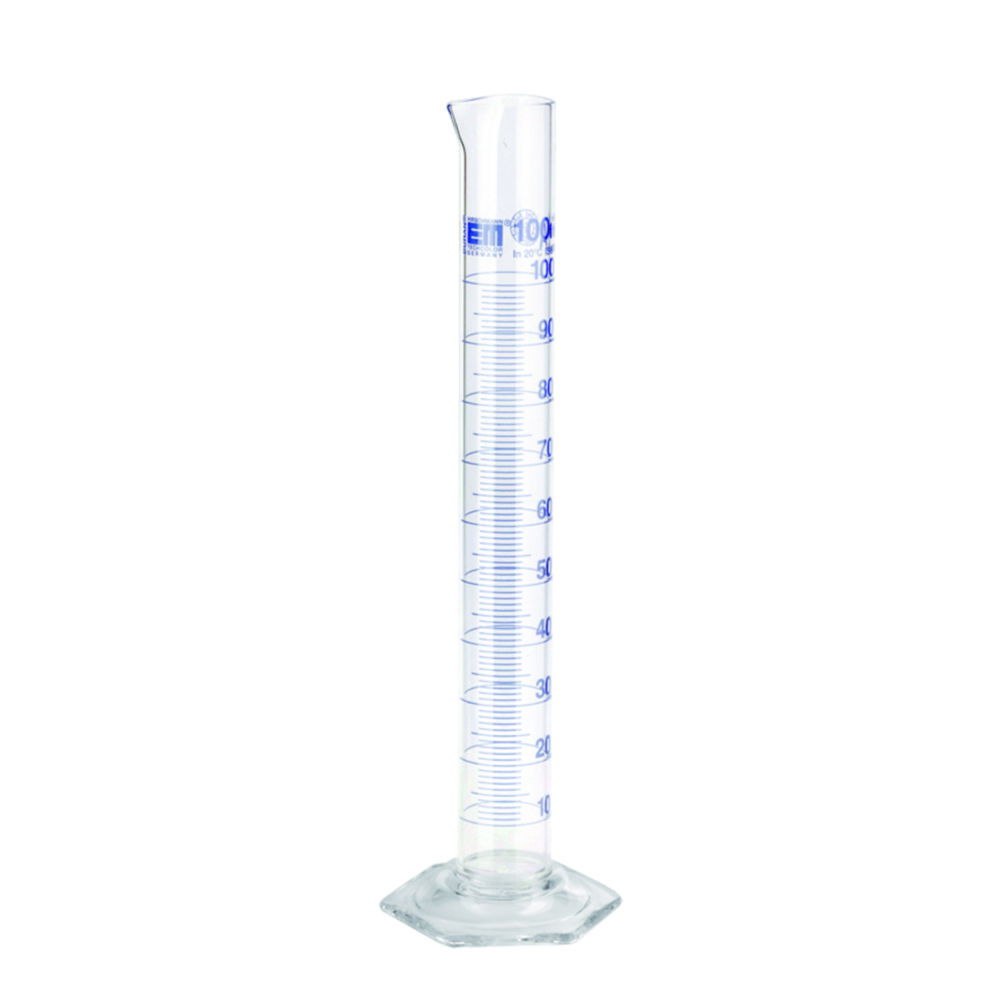

Measuring cylinders, DURAN®, tall form, class A, blue graduation
IN (TD) calibrated. With spout and hexagonal glass base. Main point ring graduation. With dated batch identification. Declaration of conformity acc. to DIN 12600. Graduation in durable blue enamel, acc.to DIN EN ISO 4788.
For those products batch calibration reports, which are free of charge, can be generated and printed on www.hirschmannlab.com. Additional single calibration reports or DAkkS certificates (former DKD calibration reports) are available. Also available with dated batch identfication acc. to USP (US Pharmacopeia).
Toote variatsioonid
| Catalog number | PK | <th class='ColourDivision | Height | Nominal capacity | Standard | Tolerance | With spout | Kogus | |
|---|---|---|---|---|---|---|---|---|---|
| 9.274 181 | 1.00 | <td data-title='Colour0.2 ml | 140 mm | 10 ml | DIN 12600, DIN EN ISO 4788 | 0.1 ml | Yes | ||
| 9.274 184 | 1.00 | <td data-title='Colour1 ml | 260 mm | 100 ml | DIN 12600, DIN EN ISO 4788 | 0.5 ml | Yes | ||
| 9.274 186 | 1.00 | <td data-title='Colour5 ml | 390 mm | 500 ml | DIN 12600, DIN EN ISO 4788 | 2.5 ml | Yes | ||
| 9.274 183 | 1.00 | <td data-title='Colour1 ml | 200 mm | 50 ml | DIN 12600, DIN EN ISO 4788 | 0.5 ml | Yes | ||
| 4.683 904 | 2.00 | <td data-title='Colour0.2 ml | 140 mm | 10 ml | DIN 12600, DIN EN ISO 4788 | 0.1 ml | Yes | ||
| 4.683 903 | 2.00 | <td data-title='Colour0.1 ml | 115 mm | 5 ml | DIN 12600, DIN EN ISO 4788 | 0.05 ml | Yes | ||
| 9.274 182 | 1.00 | <td data-title='Colour0.5 ml | 170 mm | 25 ml | DIN 12600, DIN EN ISO 4788 | 0.25 ml | Yes | ||
| 9.274 187 | 1.00 | <td data-title='Colour10 ml | 470 mm | 1000 ml | DIN 12600, DIN EN ISO 4788 | 5.0 ml | Yes | ||
| 9.274 185 | 1.00 | <td data-title='Colour2 ml | 335 mm | 250 ml | DIN 12600, DIN EN ISO 4788 | 1.0 ml | Yes | ||
| 9.274 180 | 1.00 | <td data-title='Colour0.1 ml | 115 mm | 5 ml | DIN 12600, DIN EN ISO 4788 | 0.05 ml | Yes | ||
| 9.274 188 | 1.00 | <td data-title='Colour20 ml | 500 mm | 2000 ml | DIN 12600, DIN EN ISO 4788 | 10.0 ml | Yes | ||
| 4.683 906 | 2.00 | <td data-title='Colour1 ml | 200 mm | 50 ml | DIN 12600, DIN EN ISO 4788 | 0.5 ml | Yes | ||
| 4.683 907 | 2.00 | <td data-title='Colour1 ml | 260 mm | 100 ml | DIN 12600, DIN EN ISO 4788 | 0.5 ml | Yes | ||
| 4.683 905 | 2.00 | <td data-title='Colour0.5 ml | 170 mm | 25 ml | DIN 12600, DIN EN ISO 4788 | 0.25 ml | Yes | ||
| 4.683 909 | 2.00 | <td data-title='Colour5 ml | 390 mm | 500 ml | DIN 12600, DIN EN ISO 4788 | 2.5 ml | Yes | ||
| 4.683 908 | 2.00 | <td data-title='Colour2 ml | 335 mm | 250 ml | DIN 12600, DIN EN ISO 4788 | 1.0 ml | Yes | ||
| 4.683 910 | 2.00 | <td data-title='Colour10 ml | 470 mm | 1000 ml | DIN 12600, DIN EN ISO 4788 | 5.0 ml | Yes |
