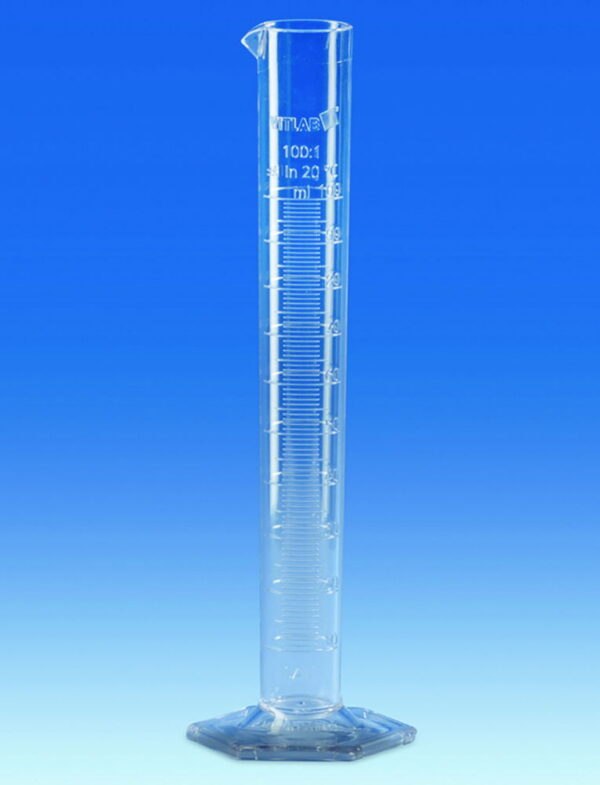

Measuring cylinders, SAN, tall form, class B, moulded graduations
Tall form. Crystal clear. With a raised scale and ring marks at the primary scale points, calibrated IN. Class B tolerances according to DIN 12681/ISO 6706. Hexagonal base with bottom studs provides high stability. Thermal stress up to 60 ºC does not cause tolerance limits to be permanently exceeded. Food-safe product according to regulation (EU) No. 10/2011.
Toote variatsioonid
| Colour | Ø | Division | Food safe | Height | Material | Nominal capacity | Catalog number | Standard | Tolerance | Type of graduation | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Clear | 47 mm | 2.00 ml | Yes | 315 mm | SAN | 250 ml | 7.009 017 | DIN 12681, ISO 6706 | 2.00 ml | Embossed | 1.00 | ||
| Clear | 34 mm | 1.00 ml | Yes | 260 mm | SAN | 100 ml | 7.009 014 | DIN 12681, ISO 6706 | 1.00 ml | Embossed | 1.00 | ||
| Clear | 28 mm | 1.00 ml | Yes | 199 mm | SAN | 50 ml | 7.009 011 | DIN 12681, ISO 6706 | 1.00 ml | Embossed | 1.00 | ||
| Clear | 76 mm | 10.00 ml | Yes | 415 mm | SAN | 1000 ml | 7.009 023 | DIN 12681, ISO 6706 | 10.00 ml | Embossed | 1.00 | ||
| Clear | 61 mm | 5.00 ml | Yes | 350 mm | SAN | 500 ml | 7.009 020 | DIN 12681, ISO 6706 | 5.00 ml | Embossed | 1.00 |
