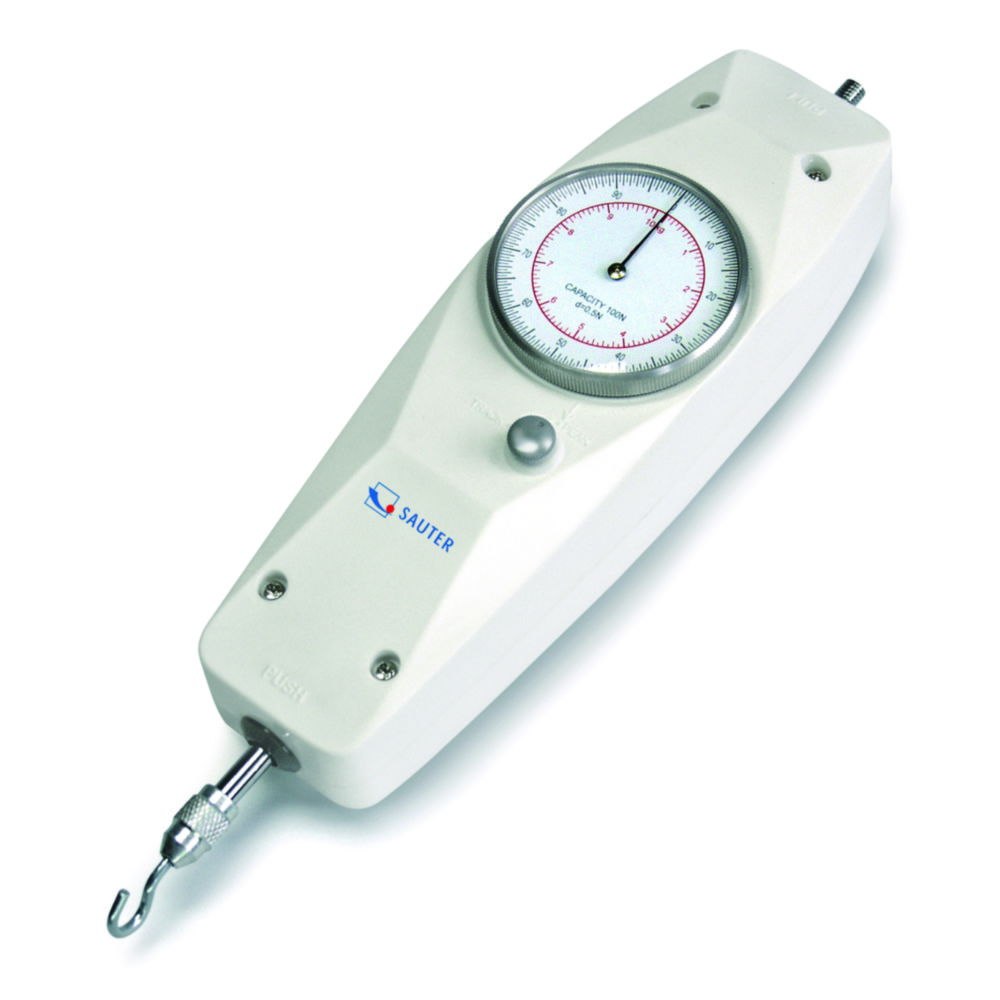

Mechanical force gauge FA
For measuring push and pull forces with peak hold function.
- Dual scale: shows Newton and kg
- Rotatable display unit for an easy calibration of the instrument
- Peak hold function by drag pointer
- Can be mounted on all manual test stands
- Zeroing by a short push of the switch
Scope of supply:
Mechanical force gauge, carrying case, standard attachments, extension rod 90 mm
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Height | Measured range | Catalog number | Readability | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|
| 60 mm | 232 x 60 x 51 mm | 51 mm | 20 N | 4.664 371 | 0,1 N | 550 g | 232 mm | 1.00 | ||
| 60 mm | 232 x 60 x 51 mm | 51 mm | 50 N | 6.254 474 | 0,25 N | 550 g | 232 mm | 1.00 | ||
| 60 mm | 232 x 60 x 51 mm | 51 mm | 300 N | 4.691 147 | 2 N | 550 g | 232 mm | 1.00 | ||
| 60 mm | 232 x 60 x 51 mm | 51 mm | 200 N | 6.291 752 | 1 N | 550 g | 232 mm | 1.00 | ||
| 60 mm | 232 x 60 x 51 mm | 51 mm | 500 N | 4.691 148 | 2,5 N | 550 g | 232 mm | 1.00 | ||
| 60 mm | 232 x 60 x 51 mm | 51 mm | 100 N | 7.910 660 | 0,5 N | 550 g | 232 mm | 1.00 | ||
| 60 mm | 232 x 60 x 51 mm | 51 mm | 10 N | 4.691 146 | 0,05 N | 550 g | 232 mm | 1.00 |
