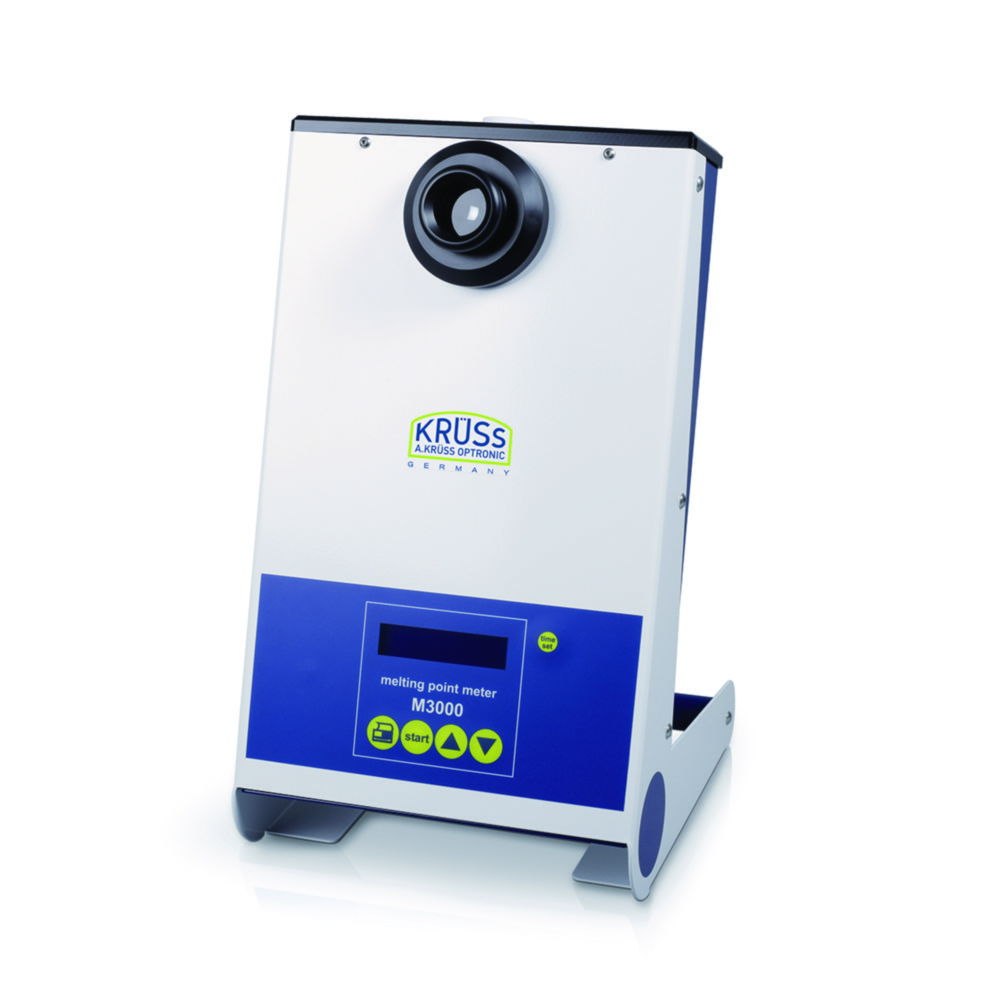

Melting Point Meter M3000
The M3000 provides fast and easy examination of powdery substances with a melting point up to 360 °C. Due to the triple capillary intake, it is possible to analyse three samples within one measurement run. Thanks to the preheating rate and the integrated fan cooling, fast measurements are possible in any temperature range.
- Semi-automatic measurement by means of 10x magnification optics
- 3 capillary intakes
- LCD display
- Monitoring of the illuminated sample via lens
- Fast cooling through integrated fan
- Digital display of all important data
- Display in German or English
- With RS-232 interface for printer CBM910
- Easy-to-clean membrane keypad
Scope of supply: Melting Point Meter, protective cover, 100 capillaries
Toote variatsioonid
| Catalog number | PK | Accuracy Number | Depth | Ø capillaries | Dimensions (WxDxH) | Heating rate | Height | Interfaces | IP code | Max. temperature | Max. voltage | Min. temperature | Min. voltage | Power supply | Resolution | Temperature | Type | Weight | Width | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4.661 671 | 1.00 | 230 mm | 1.4 mm | 210 x 230 x 360 mm | 1 °C/min | 360 mm | RS 232 | IP 20 | 360 °C | 264 V | -30 °C | 90 V | 90 ... 264 V, 50/60 Hz | 0.1 °C | 30 ... 360 °C | M3000 | 4.3 kg | 210 mm |
