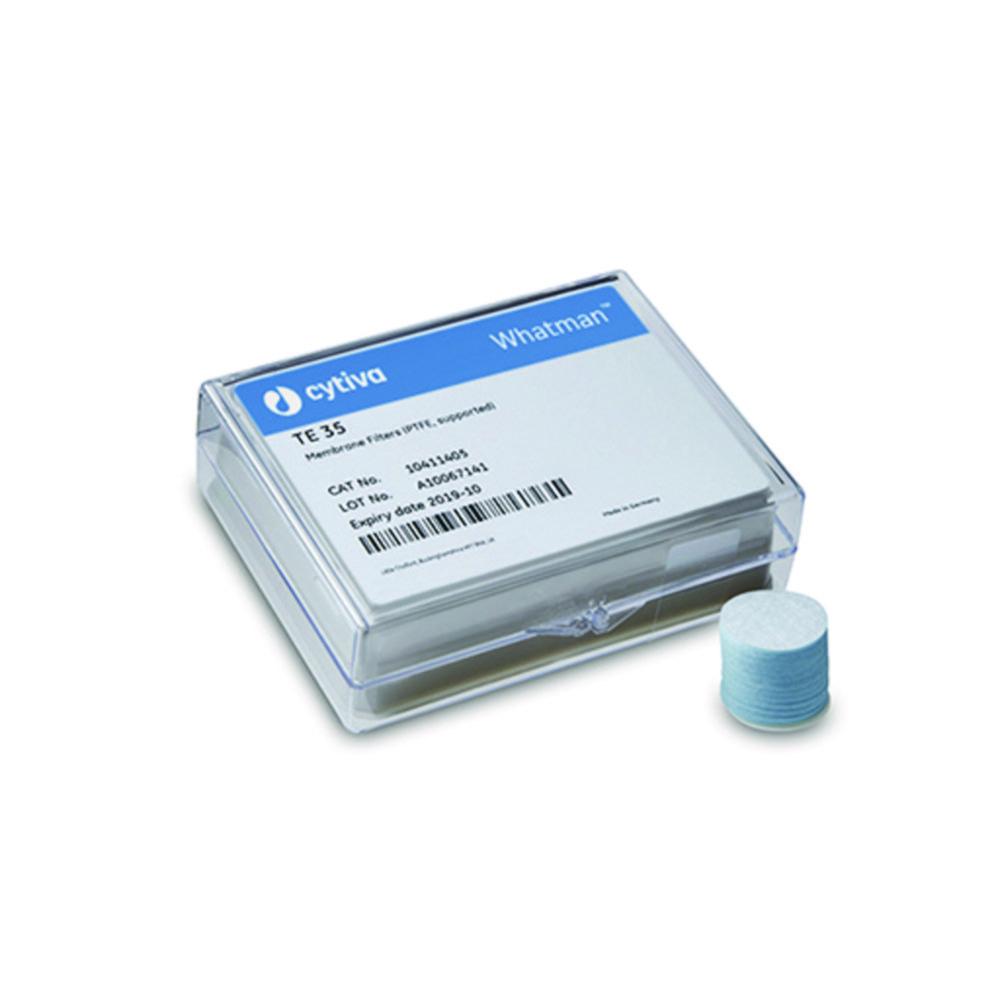

Membrane filters, Grade TE, PTFE with support
Applications:
- Ideal venting filter for all applications
- For aggressive media and cryogenic liquids
- Separation of free water from organic solutions
- Outstanding as gas/liquid barrier
- Filtration of air and (hot) gases
Properties:
- Chemically inert to aqueous and organic solutions as well as concentrated acids and bases
- Hydrophobic – for aqueous filtration the pressure must be higher than the water breakthrough pressure
- Can be used up to 145°C
- Can be sterilised by all methods except gamma radiation
Toote variatsioonid
| Ø | Material | Catalog number | Pore size | Type | PK | Kogus | |
|---|---|---|---|---|---|---|---|
| 47 mm | PTFE | 9.058 643 | 1.00 µm | TE 37 | 50.00 | ||
| 47 mm | PTFE | 9.058 623 | 5.00 µm | TE 38 | 50.00 | ||
| 50 mm | PTFE | 9.058 644 | 1.00 µm | TE 37 | 50.00 | ||
| 47 mm | PTFE | 9.058 663 | 0.45 µm | TE 36 | 50.00 | ||
| 47 mm | PTFE | 9.058 683 | 0.20 µm | TE 35 | 50.00 | ||
| 150 mm | PTFE | 9.058 626 | 5.00 µm | TE 38 | 25.00 | ||
| 25 mm | PTFE | 9.058 682 | 0.20 µm | TE 35 | 50.00 | ||
| 90 mm | PTFE | 9.058 625 | 5.00 µm | TE 38 | 25.00 | ||
| 25 mm | PTFE | 9.058 642 | 1.00 µm | TE 37 | 50.00 | ||
| 50 mm | PTFE | 9.058 664 | 0.45 µm | TE 36 | 50.00 | ||
| 50 mm | PTFE | 9.058 684 | 0.20 µm | TE 35 | 50.00 | ||
| 50 mm | PTFE | 9.058 624 | 5.00 µm | TE 38 | 50.00 |
