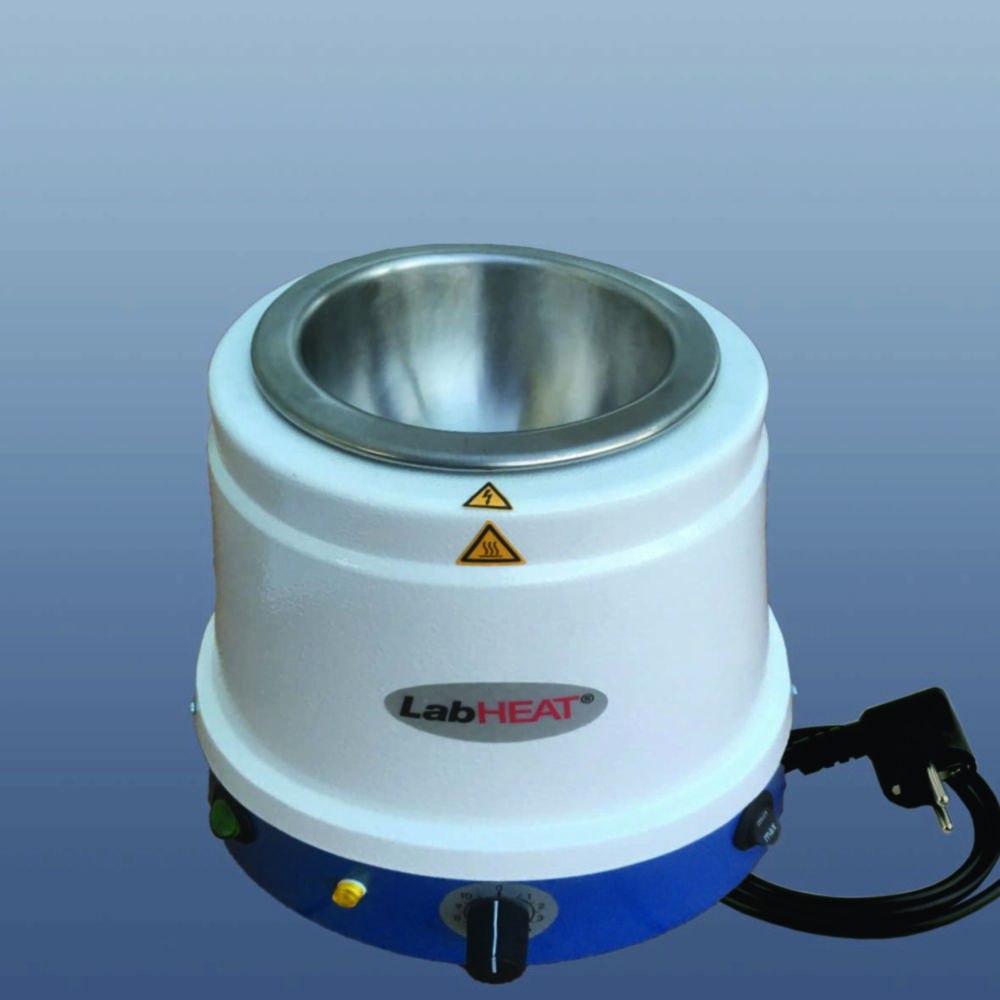

Metal-cased heating mantles KM-MEB series
With corrosion-resistant stainless steel heating bowl to protect against leaking liquid resulting of a broken flask.
- Increased working safety in the lab
- Plastic-coated, chemically resistant metal housing
- Predrilled threaded hole on rear allows to fix the stativ clamp
- 2 heating zones
- With built-in controller allows a continuous adjustment of power outlet
- Thermally insulated and earthed
- With built-in heating zone switch and residual current detection (RCD)
Toote variatsioonid
| atr_llg_diam_vessel | Ø | Dimensions (ØxH) | Height | Max. temperature | Max. voltage | atr_llg_no_of_heating_points | No. of heating zones | Catalog number | Plug type | Power supply | Rated capacity | atr_llg_vessels_capacity | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 131 mm | 220 mm | 220 x 190 mm | 190 mm | 450 °C | 230 V·AC | 1 | 2 | 6.310 319 | EU | 230 V·AC | 300 W | 1000 ml | 1.00 | ||
| 166 mm | 300 mm | 300 x 220 mm | 220 mm | 450 °C | 230 V·AC | 1 | 2 | 6.310 320 | EU | 230 V·AC | 500 W | 2000 ml | 1.00 | ||
| 85 mm | 175 mm | 175 x 180 mm | 180 mm | 450 °C | 230 V·AC | 1 | 2 | 6.310 317 | EU | 230 V·AC | 150 W | 250 ml | 1.00 | ||
| 105 mm | 220 mm | 220 x 190 mm | 190 mm | 450 °C | 230 V·AC | 1 | 2 | 6.310 318 | EU | 230 V·AC | 200 W | 500 ml | 1.00 |
