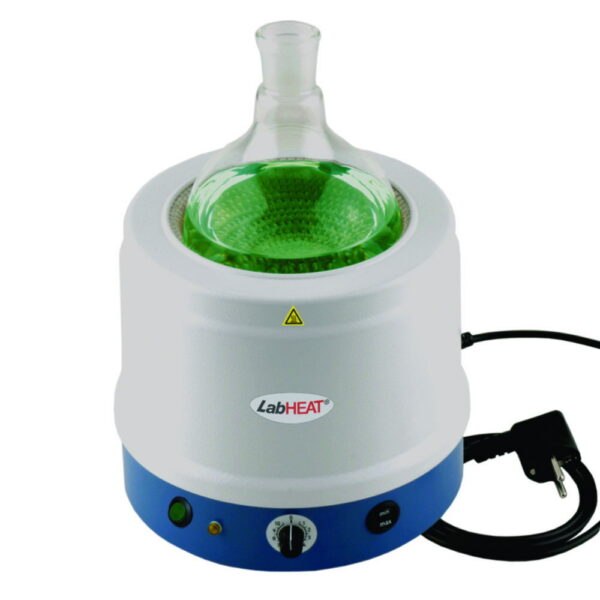

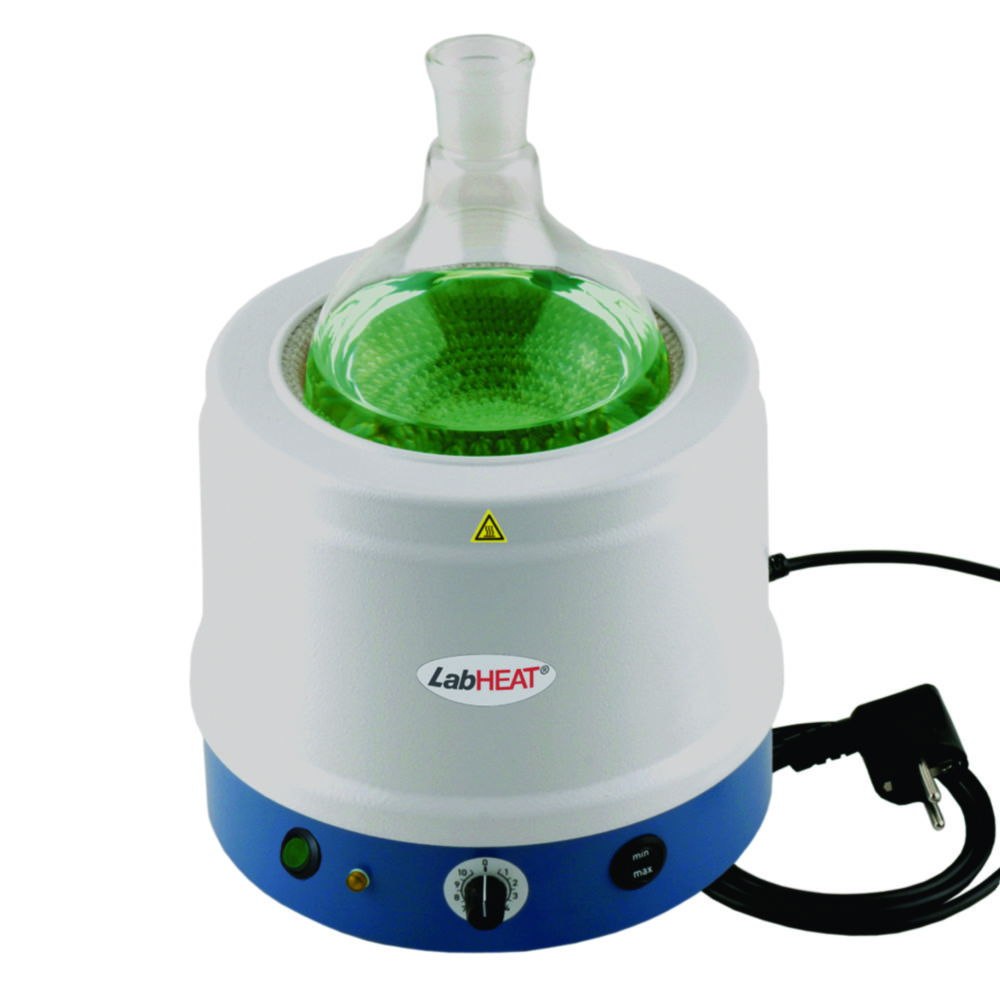

Metal-cased heating mantles series KM-ME, with controller

LabHEAT^® – Heating mantles for flasks, round bottom. Flexible glass yarn heating element in plastic coated, chemical-resistant metal housing with built-in power-on and heating zone switch, in addition equipped with a controller which allows a continuous adjustment of the heater power; max. heating element temperature 450 °C; 1.5 m power supply (earthed) cable and RCD (residual current detection).

Toote variatsioonid

atr_llg_diam_vessel	Ø	Dimensions (ØxH)	Height	Max. temperature	Max. voltage	atr_llg_no_of_heating_points	No. of heating zones	Catalog number	Plug type	Power supply	Rated capacity	atr_llg_vessels_capacity	PK
51 mm	175 mm	175 x 180 mm	180 mm	450 °C	230 V·AC	1	1	9.642 520	EU	230 V·AC	55 W	50 ml	1.00
64 mm	175 mm	175 x 180 mm	180 mm	450 °C	230 V·AC	1	1	9.642 521	EU	230 V·AC	100 W	100 ml	1.00
85 mm	175 mm	175 x 180 mm	180 mm	450 °C	230 V·AC	1	2	9.642 522	EU	230 V·AC	150 W	250 ml	1.00
207 mm	360 mm	360 x 240 mm	240 mm	450 °C	230 V·AC	1	2	9.642 527	EU	230 V·AC	750 W	4000 ml	1.00
105 mm	220 mm	220 x 190 mm	190 mm	450 °C	230 V·AC	1	2	9.642 523	EU	230 V·AC	200 W	500 ml	1.00
223 mm	360 mm	360 x 240 mm	240 mm	450 °C	230 V·AC	1	2	9.642 528	EU	230 V·AC	860 W	5000 ml	1.00
279 mm	370 mm	370 x 250 mm	250 mm	450 °C	230 V·AC	1	2	9.642 530	EU	230 V·AC	1400 W	10000 ml	1.00
185 mm	300 mm	300 x 220 mm	220 mm	450 °C	230 V·AC	1	2	9.642 526	EU	230 V·AC	600 W	3000 ml	1.00
166 mm	300 mm	300 x 220 mm	220 mm	450 °C	230 V·AC	1	2	9.642 525	EU	230 V·AC	500 W	2000 ml	1.00
131 mm	220 mm	220 x 190 mm	190 mm	450 °C	230 V·AC	1	2	9.642 524	EU	230 V·AC	300 W	1000 ml	1.00
345 mm	440 mm	440 x 270 mm	270 mm	450 °C	230 V·AC	1	2	9.642 531	EU	230 V·AC	2000 W	20000 ml	1.00
236 mm	360 mm	360 x 240 mm	240 mm	450 °C	230 V·AC	1	2	9.642 529	EU	230 V·AC	1000 W	6000 ml	1.00
