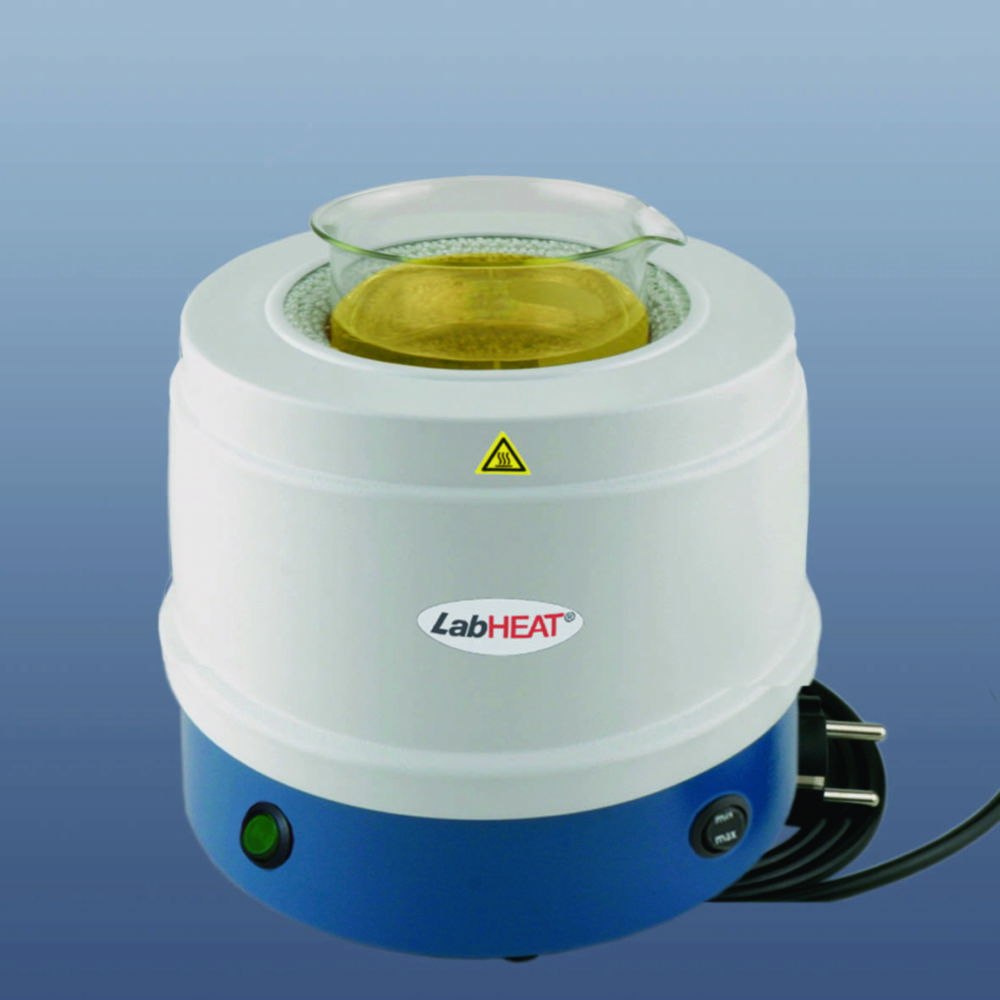

Metal-cased heating mantles series KM-MNB
LabHEAT® – Heating mantles for low form beakers. Flexible glass yarn heating element in plastic coated, chemical-resistant metal housing, with built-in power-on and heating zone switch, max. heating element temperature 450 °C; 1.5 m power supply (earthed) cable and RCD (residual current detection)..
Toote variatsioonid
| atr_llg_diam_vessel | Ø | Dimensions (ØxH) | Height | Max. temperature | Max. voltage | atr_llg_no_of_heating_points | No. of heating zones | Catalog number | Plug type | Power supply | Rated capacity | atr_llg_vessels_capacity | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 105 mm | 220 mm | 220 x 190 mm | 190 mm | 450 °C | 230 V·AC | 1 | 2 | 9.642 562 | EU | 230 V·AC | 400 W | 1000 ml | 1.00 | ||
| 80 mm | 175 mm | 175 x 180 mm | 180 mm | 450 °C | 230 V·AC | 1 | 2 | 9.642 560 | EU | 230 V·AC | 200 W | 400 ml | 1.00 | ||
| 152 mm | 220 mm | 220 x 190 mm | 190 mm | 450 °C | 230 V·AC | 1 | 2 | 9.642 564 | EU | 230 V·AC | 800 W | 3000 ml | 1.00 | ||
| 90 mm | 175 mm | 175 x 180 mm | 180 mm | 450 °C | 230 V·AC | 1 | 2 | 9.642 561 | EU | 230 V·AC | 260 W | 600 ml | 1.00 | ||
| 132 mm | 220 mm | 220 x 190 mm | 190 mm | 450 °C | 230 V·AC | 1 | 2 | 9.642 563 | EU | 230 V·AC | 600 W | 2000 ml | 1.00 |
