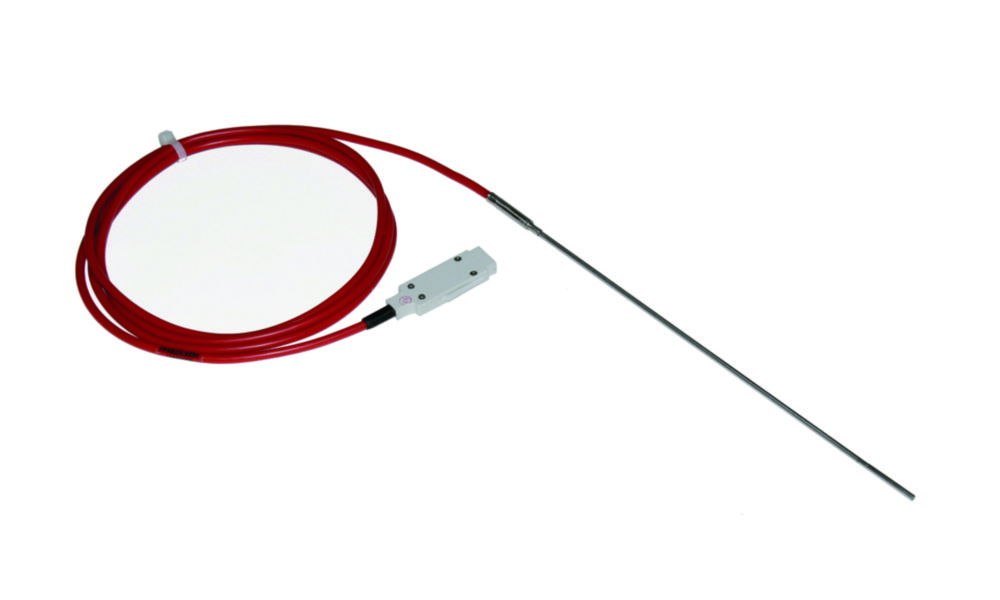

Metal sensor Pt 100 with adapter sleeve VA for PHYSICS 100
- Immersion resistance temperature probes Pt 100, class A, 4-wire connection
- Connection-wire teflon/silicone isolated, with PHYSICS-Plug
- Probe made of stainless steel 1.4571
- Metal probe also available with insert tip
- Instrument and thermometer combination, optional, available with calibration
Toote variatsioonid
| Catalog number | PK | Accuracy class | Cable length | Ø | Length | Material | Max. temperature | Min. temperature | Resolution | Temperature | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6.273 446 | 1.00 | A | 2 m | 3 mm | 300 mm | Stainless steel | 350 °C | -90 °C | 0.01 °C | -90 ... 350 °C | ||
| 6.273 445 | 1.00 | A | 2 m | 4 mm | 150 mm | Stainless steel | 200 °C | -50 °C | 0.01 °C | -50 ... 200 °C | ||
| 6.273 444 | 1.00 | A | 2 m | 3 mm | 150 mm | Stainless steel | 200 °C | -50 °C | 0.01 °C | -50 ... 200 °C | ||
| 6.273 649 | 1.00 | A | 3 m | 4 mm | 300 mm | Stainless steel | 350 °C | -90 °C | 0.01 °C | -90 ... 350 °C | ||
| 6.273 648 | 1.00 | A | 3 m | 3 mm | 300 mm | Stainless steel | 350 °C | -90 °C | 0.01 °C | -90 ... 350 °C | ||
| 6.273 448 | 1.00 | A | 2 m | 3 mm | 400 mm | Stainless steel | 350 °C | -90 °C | 0.01 °C | -90 ... 350 °C | ||
| 6.273 668 | 1.00 | A | 5 m | 4 mm | 150 mm | Stainless steel | 200 °C | -50 °C | 0.01 °C | -50 ... 200 °C | ||
| 6.273 647 | 1.00 | A | 3 m | 4 mm | 150 mm | Stainless steel | 200 °C | -50 °C | 0.01 °C | -50 ... 200 °C | ||
| 6.273 669 | 1.00 | A | 5 m | 3 mm | 300 mm | Stainless steel | 350 °C | -90 °C | 0.01 °C | -90 ... 350 °C | ||
| 6.273 651 | 1.00 | A | 3 m | 4 mm | 400 mm | Stainless steel | 350 °C | -90 °C | 0.01 °C | -90 ... 350 °C | ||
| 6.273 650 | 1.00 | A | 3 m | 3 mm | 400 mm | Stainless steel | 350 °C | -90 °C | 0.01 °C | -90 ... 350 °C | ||
| 6.273 447 | 1.00 | A | 2 m | 4 mm | 300 mm | Stainless steel | 350 °C | -90 °C | 0.01 °C | -90 ... 350 °C | ||
| 6.273 671 | 1.00 | A | 5 m | 3 mm | 400 mm | Stainless steel | 350 °C | -90 °C | 0.01 °C | -90 ... 350 °C | ||
| 6.273 670 | 1.00 | A | 5 m | 4 mm | 300 mm | Stainless steel | 350 °C | -90 °C | 0.01 °C | -90 ... 350 °C | ||
| 6.273 672 | 1.00 | A | 5 m | 4 mm | 400 mm | Stainless steel | 350 °C | -90 °C | 0.01 °C | -90 ... 350 °C | ||
| 6.273 449 | 1.00 | A | 2 m | 4 mm | 400 mm | Stainless steel | 350 °C | -90 °C | 0.01 °C | -90 ... 350 °C | ||
| 6.273 667 | 1.00 | A | 5 m | 3 mm | 150 mm | Stainless steel | 200 °C | -50 °C | 0.01 °C | -50 ... 200 °C | ||
| 6.273 646 | 1.00 | A | 3 m | 3 mm | 150 mm | Stainless steel | 200 °C | -50 °C | 0.01 °C | -50 ... 200 °C |
