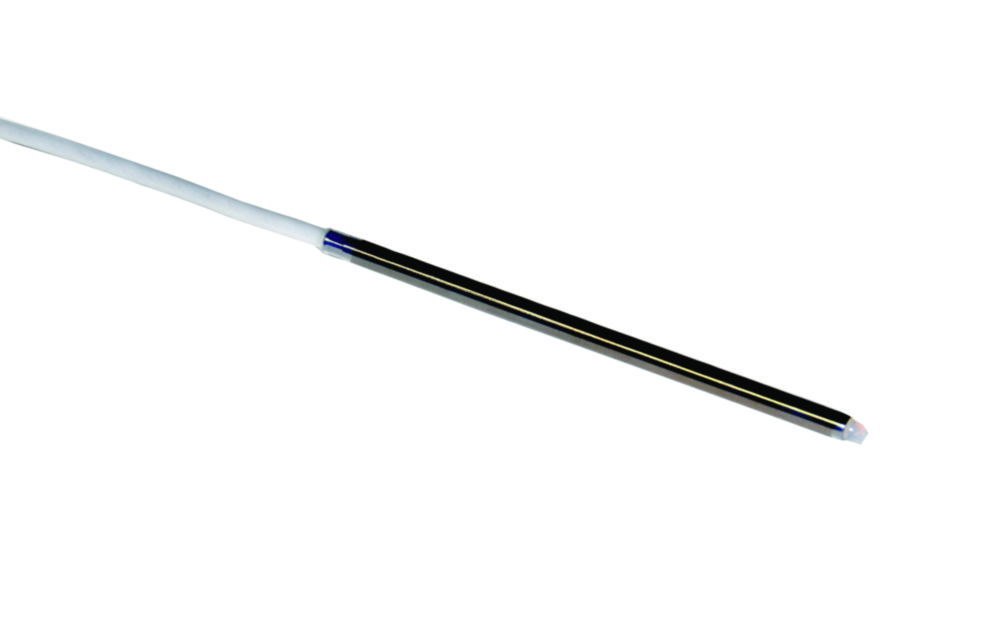

Metal sensor Pt 100 with PTFE/FEP coating for PHYSICS 100
- Resistance temperature probes Pt 100, class A, 4-wire connection
- Cable: PTFE/VA mesh wire/PTFE isolated, with PHYSICS-Plug
- Probe made of stainless steel 1.4571
- Instrument and thermometer combination, optional, available with calibration
Toote variatsioonid
Catalog number | PK | Accuracy class | Cable length | Ø | Length | Material | Max. temperature | Min. temperature | Resolution | Temperature | Kogus | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
6.273 456 | 1.00 | A | 2 m | 6 | 100 mm | Stainless steel | 200 °C | -50 °C | 0.01 °C | -50 ... 200 °C | ||
6.273 458 | 1.00 | A | 2 m | 6 | 200 mm | Stainless steel | 200 °C | -50 °C | 0.01 °C | -50 ... 200 °C | ||
6.273 455 | 1.00 | A | 2 m | 6 | 70 mm | Stainless steel | 200 °C | -50 °C | 0.01 °C | -50 ... 200 °C | ||
6.273 457 | 1.00 | A | 2 m | 6 | 150 mm | Stainless steel | 200 °C | -50 °C | 0.01 °C | -50 ... 200 °C |
