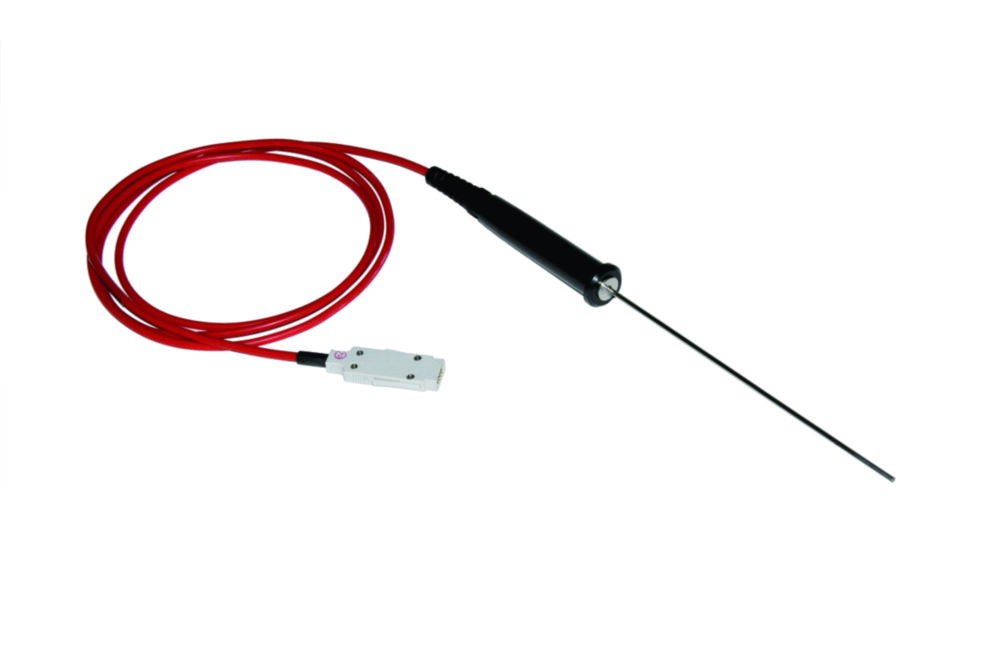

Metal sensors Pt 100 with hand grip for PHYSICS 100

Metal sensors Pt 100 with hand grip for PHYSICS 100

  • Resistance temperature probes Pt 100, class A, 4-wire connection

  • Connection-wire teflon/silicone isolated, with PHYSICS-Plug

  • Probe made of stainless steel 1.4571

  • Metalprobe also available with insert tip

  • Instrument and thermometer combination, optional, available with calibration

Toote variatsioonid

Catalog numberPKAccuracy classCable lengthØLengthMaterialMax. temperatureMin. temperatureResolutionTemperatureType of probeKogus
6.273 4381.00A2 m3 mm150 mmStainless steel200 °C-50 °C0.01 °C-50 ... 200 °CPt 100
6.273 6661.00A5 m4 mm400 mmStainless steel350 °C-90 °C0.01 °C-90 ... 350 °CPt 100
6.273 4421.00A2 m3 mm400 mmStainless steel350 °C-90 °C0.01 °C-90 ... 350 °CPt 100
6.273 6431.00A3 m4 mm300 mmStainless steel350 °C-90 °C0.01 °C-90 ... 350 °CPt 100
6.273 4391.00A2 m4 mm150 mmStainless steel200 °C-50 °C0.01 °C-50 ... 200 °CPt 100
6.273 4401.00A2 m3 mm300 mmStainless steel350 °C-90 °C0.01 °C-90 ... 350 °CPt 100
6.273 6401.00A3 m3 mm150 mmStainless steel200 °C-50 °C0.01 °C-50 ... 200 °CPt 100
6.273 4431.00A2 m4 mm400 mmStainless steel350 °C-90 °C0.01 °C-90 ... 350 °CPt 100
6.273 6451.00A3 m4 mm400 mmStainless steel350 °C-90 °C0.01 °C-90 ... 350 °CPt 100
6.273 6621.00A5 m4 mm150 mmStainless steel200 °C-50 °C0.01 °C-50 ... 200 °CPt 100
6.273 4411.00A2 m4 mm300 mmStainless steel350 °C-90 °C0.01 °C-90 ... 350 °CPt 100
6.273 6651.00A5 m3 mm400 mmStainless steel350 °C-90 °C0.01 °C-90 ... 350 °CPt 100
6.273 6631.00A5 m3 mm300 mmStainless steel350 °C-90 °C0.01 °C-90 ... 350 °CPt 100
6.273 6441.00A3 m3 mm400 mmStainless steel350 °C-90 °C0.01 °C-90 ... 350 °CPt 100
6.273 6641.00A5 m4 mm300 mmStainless steel350 °C-90 °C0.01 °C-90 ... 350 °CPt 100
6.273 6611.00A5 m3 mm150 mmStainless steel200 °C-50 °C0.01 °C-50 ... 200 °CPt 100
