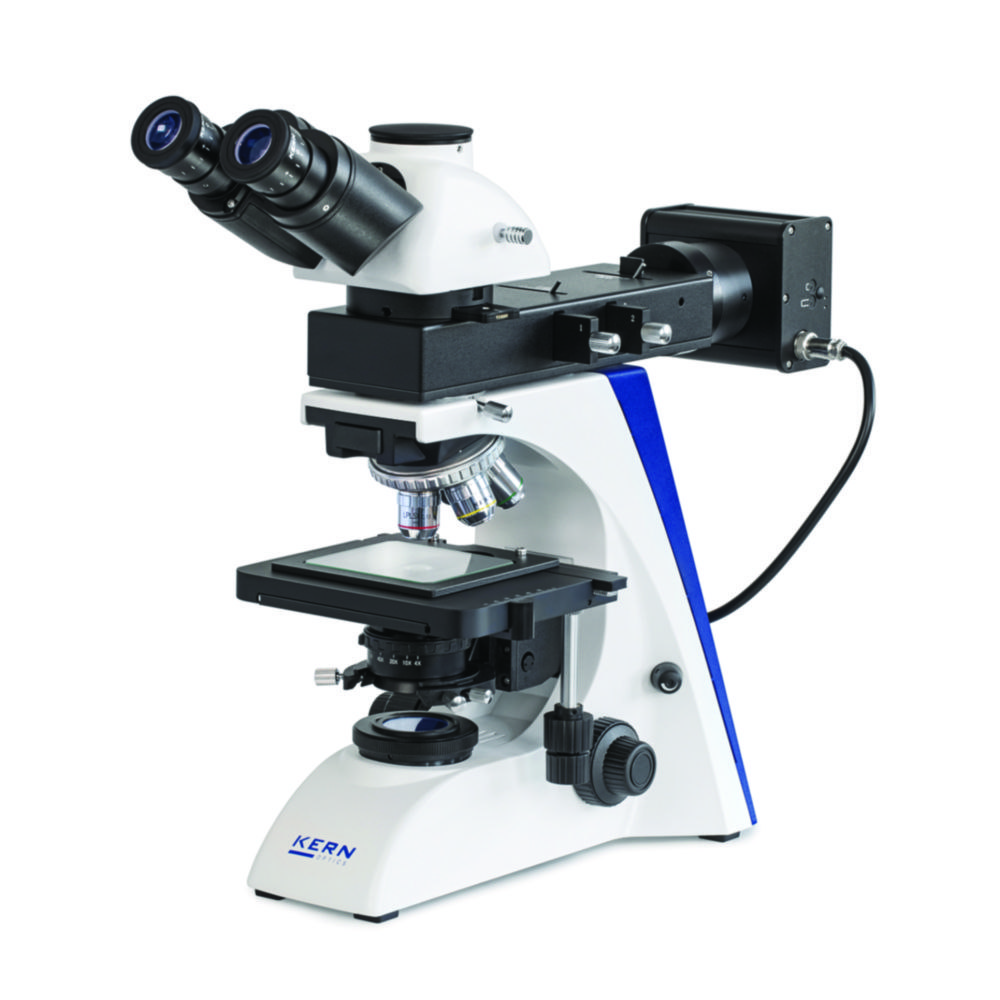

Metallurgical microscope OKO 178
The reflected and transmitted light microscope for testing metals and analysing surfaces.
- Infinity optical system
- Siedentopf 30° inclined/360° rotatable
- Diopter adjustment, both-sided
- Open, mechanical angle table
- Simple polarising unit (analyser and polariser)
Scope of supply: Microscope, protective dust cover, eye cups, user instruction
Toote variatsioonid
| Condenser | Depth | Depth stage | Dimensions (WxDxH) | Height | Light type | Max. voltage | Min. voltage | Catalog number | Plug type | Power supply | Revolving nosepiece | Stage (WxD) | Tube | Type | Waranty | Weight | Width | Width stage | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Abbe 1,25 | 200 mm | 145 mm | 550 x 200 x 460 mm | 460 mm | LED | 240 V | 100 V | 4.657 675 | UK/CH/US/AUS | 100 ... 240 V, 50/60 Hz | 5-fold | 175 x 145 mm | Trinocular | OKO 178 | 3 years | 12 kg | 550 mm | 175 mm | 1.00 |
