Micro-distillation system

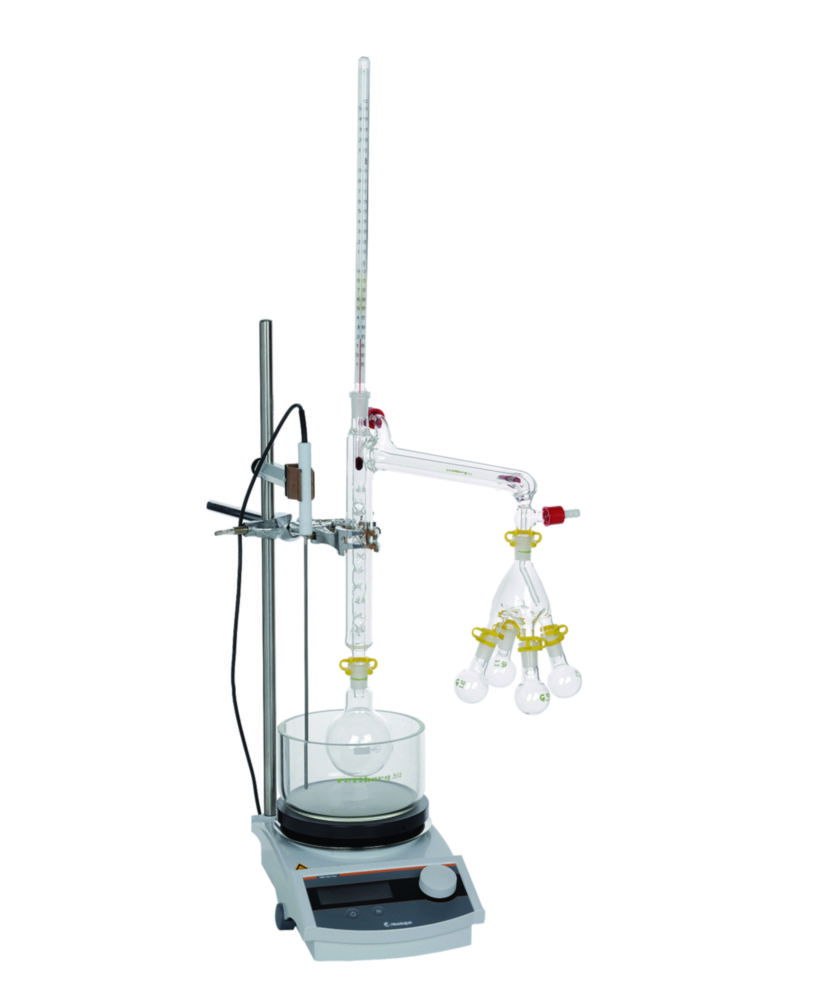

Complete Micro-distillation unit consisting of a Vigreux column with vacuum jacket (effective length 150 mm) and attached Liebig condenser (jacket length approx. 160 mm) and vacuum receiver, 2 x NS 14.5/23 cone and 1 x NS 14.5/23 socket joint connections, cooling connections with screw-off plastic hose connections Ø 8,6 mm (PP), 100 ml evaporating flask, condensate distributor with 4 x 10 ml receiving flasks, 0 to 250 °C thermometer, bath vessel, thick-walled, plane-ground bottom ( capacity approx. 600 ml), borosilicate glass 3.3, stand and mounting materials, magnetic stirrer with heater, Pt1000 sensor.
Toote variatsioonid
| Length condenser | Catalog number | atr_llg_vessels_capacity | PK | Kogus | |
|---|---|---|---|---|---|
| 160 mm | 9.305 370 | 100 ml | 1.00 |
