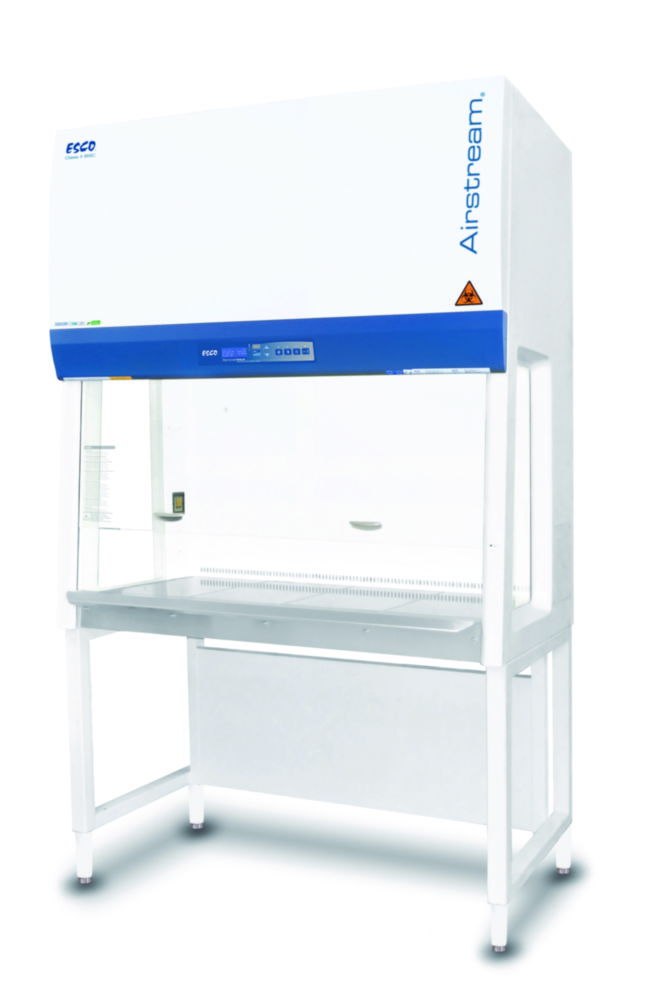

Microbiological Safety Cabinet, class II Type Airstream®
- Class II according to DIN 12469
- Ergonomically angled and frameless front sash
- A large easy-to-read digital display and ergonomically sized touchpad
- Tempered glass side walls (S-Series with stainless steel side walls)
- Esco triple-wall design with negative pressure prevents the possibility of contamination from leaks
- ISOCIDE™ antimicrobial coating on all painted surfaces minimises contamination
- Quickstart Mode
- Sentinel-Microprocessor maintains steady blower speed
- RS232 serial interface port
- More options on request, e.g. prefilter at intake socket
Model variations:
Model type E and S: Single ULPA-Filter/H14
Model type G: Dual ULPA-Filter/H14
Options on request:
Electrical outlet, support stand, prefilter, service fixture, UV lamp, IV bar, single piece work surface for E-Series, IQ/OQ or KI DISCUS test
Please order support stand separately.
Toote variatsioonid
| Catalog number | PK | Depth int. | External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Height int. | Illumination | Internal dimensions (WxDxH) | Int. width | Max. voltage | Min. voltage | Noise level | Power supply | Type | Weight | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4.676 195 | 1.00 | 580 mm | 730 x 810 x 1,400 mm | 810 mm | 1400 mm | 730 mm | 660 mm | LED | 610 x 580 x 660 mm | 610 mm | 240 V·AC | 220 V·AC | 51 db(A) | 220 ... 240 V·AC, 50/60 Hz | AC2-2S8 | 116 kg | ||
| 4.658 786 | 1.00 | 580 mm | 1,950 x 810 x 1,400 mm | 810 mm | 1400 mm | 1950 mm | 660 mm | LED | 1,830 x 580 x 660 mm | 1830 mm | 240 V·AC | 220 V·AC | 55.7 db(A) | 220 ... 240 V·AC, 50/60 Hz | AC2-6E8 | 346 kg | ||
| 6.284 857 | 1.00 | 580 mm | 730 x 810 x 1,400 mm | 810 mm | 1400 mm | 730 mm | 660 mm | LED | 610 x 580 x 660 mm | 610 mm | 240 V·AC | 220 V·AC | 51 db(A) | 220 ... 240 V·AC, 50/60 Hz | AC2-2E8 | 116 kg | ||
| 4.659 008 | 1.00 | 580 mm | 1,645 x 810 x 1,400 mm | 810 mm | 1400 mm | 1645 mm | 660 mm | LED | 1,525 x 580 x 660 mm | 1525 mm | 240 V·AC | 220 V·AC | 53.6 db(A) | 220 ... 240 V·AC, 50/60 Hz | AC2-5E8 | 288 kg | ||
| 4.676 197 | 1.00 | 580 mm | 1,340 x 810 x 1,400 mm | 810 mm | 1400 mm | 1340 mm | 660 mm | LED | 1,220 x 580 x 660 mm | 1220 mm | 240 V·AC | 220 V·AC | 53.5 db(A) | 220 ... 240 V·AC, 50/60 Hz | AC2-4S8 | 230 kg | ||
| 4.658 784 | 1.00 | 580 mm | 1,340 x 810 x 1,400 mm | 810 mm | 1400 mm | 1340 mm | 660 mm | LED | 1,220 x 580 x 660 mm | 1220 mm | 240 V·AC | 220 V·AC | 53.5 db(A) | 220 ... 240 V·AC, 50/60 Hz | AC2-4G8 | 230 kg | ||
| 4.659 007 | 1.00 | 580 mm | 1,340 x 810 x 1,400 mm | 810 mm | 1400 mm | 1340 mm | 660 mm | LED | 1,220 x 580 x 660 mm | 1220 mm | 240 V·AC | 220 V·AC | 53.5 db(A) | 220 ... 240 V·AC, 50/60 Hz | AC2-4E8 | 230 kg | ||
| 4.659 009 | 1.00 | 580 mm | 1,950 x 810 x 1,400 mm | 810 mm | 1400 mm | 1950 mm | 660 mm | LED | 1,830 x 580 x 660 mm | 1830 mm | 240 V·AC | 220 V·AC | 55.7 db(A) | 220 ... 240 V·AC, 50/60 Hz | AC2-6G8 | 346 kg | ||
| 4.676 198 | 1.00 | 580 mm | 1,645 x 810 x 1,400 mm | 810 mm | 1400 mm | 1645 mm | 660 mm | LED | 1,525 x 580 x 660 mm | 1525 mm | 240 V·AC | 220 V·AC | 53.6 db(A) | 220 ... 240 V·AC, 50/60 Hz | AC2-5S8 | 288 kg | ||
| 6.270 726 | 1.00 | 580 mm | 1,035 x 810 x 1,400 mm | 810 mm | 1400 mm | 1035 mm | 660 mm | LED | 915 x 580 x 660 mm | 915 mm | 240 V·AC | 220 V·AC | 52 db(A) | 220 ... 240 V·AC, 50/60 Hz | AC2-3E8 | 173 kg | ||
| 4.676 196 | 1.00 | 580 mm | 1,035 x 810 x 1,400 mm | 810 mm | 1400 mm | 1035 mm | 660 mm | LED | 915 x 580 x 660 mm | 915 mm | 240 V·AC | 220 V·AC | 52 db(A) | 220 ... 240 V·AC, 50/60 Hz | AC2-3S8 | 173 kg | ||
| 4.676 199 | 1.00 | 580 mm | 1,950 x 810 x 1,400 mm | 810 mm | 1400 mm | 1950 mm | 660 mm | LED | 1,830 x 580 x 660 mm | 1830 mm | 240 V·AC | 220 V·AC | 55.7 db(A) | 220 ... 240 V·AC, 50/60 Hz | AC2-6S8 | 346 kg |
