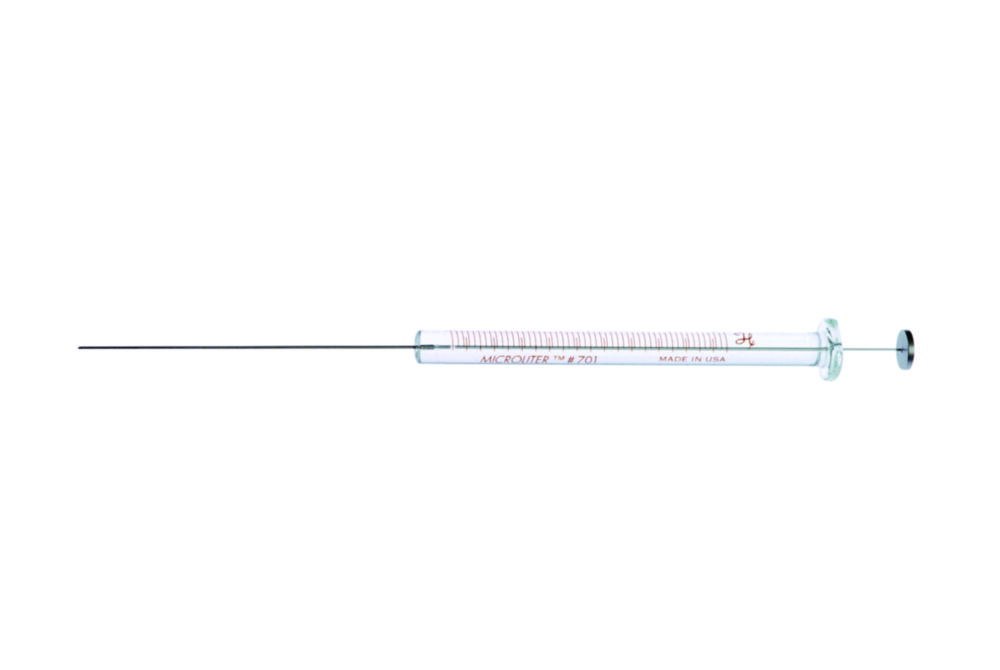

Microlitre syringes, 700 series, with cemented needle (N)
With cemented needle (N, NR). NR stands for syringes with Rheodyne specified needles. Plungers are individually fitted, therefore cannot be interchanged and are not available as replacement parts. Needle length 51 mm.
Toote variatsioonid
| Catalog number | PK | Length needle | Nominal capacity | Type | Shape tip (needle) | Gauge | Needle | Nozzle type | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|
| 9.221 003 | 1.00 | 51 mm | 25 µl | 702 N | Bevel, curved | 22s | fixed | N | ||
| 9.221 001 | 1.00 | 51 mm | 5 µl | 75 N | Bevel, curved | 26s | fixed | N | ||
| 6.055 335 | 1.00 | 51 mm | 500 µl | 750 N | Straight | 22 | fixed | N | ||
| 9.221 004 | 1.00 | 51 mm | 50 µl | 705 N | Bevel, curved | 22s | fixed | N | ||
| 6.800 518 | 1.00 | 51 mm | 10 µl | 701 N | Conical, side port | 26s | fixed | N | ||
| 9.221 006 | 1.00 | 51 mm | 250 µl | 725 N | Bevel, curved | 22s | fixed | N | ||
| 9.221 002 | 1.00 | 51 mm | 10 µl | 701 N | Bevel, curved | 26s | fixed | N | ||
| 9.221 005 | 1.00 | 51 mm | 100 µl | 710 N | Bevel, curved | 22s | fixed | N | ||
| 6.801 651 | 1.00 | 51 mm | 500 µl | 750 N | Conical, side port | 22 | fixed | N | ||
| 9.221 014 | 1.00 | 51 mm | 50 µl | 705 NR | Straight | 22s | fixed | NR | ||
| 9.221 016 | 1.00 | 51 mm | 250 µl | 725 NR | Straight | 22 | fixed | NR | ||
| 9.221 007 | 1.00 | 51 mm | 500 µl | 750 N | Bevel, curved | 22 | fixed | N | ||
| 9.221 011 | 1.00 | 51 mm | 5 µl | 75 N | Straight | 26s | fixed | N | ||
| 9.221 013 | 1.00 | 51 mm | 25 µl | 702 NR | Straight | 22s | fixed | NR | ||
| 9.221 012 | 1.00 | 51 mm | 10 µl | 701 N | Straight | 26s | fixed | N | ||
| 9.221 010 | 6.00 | 51 mm | 10 µl | 701 N | Bevel, curved | 26s | fixed | N | ||
| 9.221 015 | 1.00 | 51 mm | 100 µl | 710 NR | Straight | 22s | fixed | NR |
