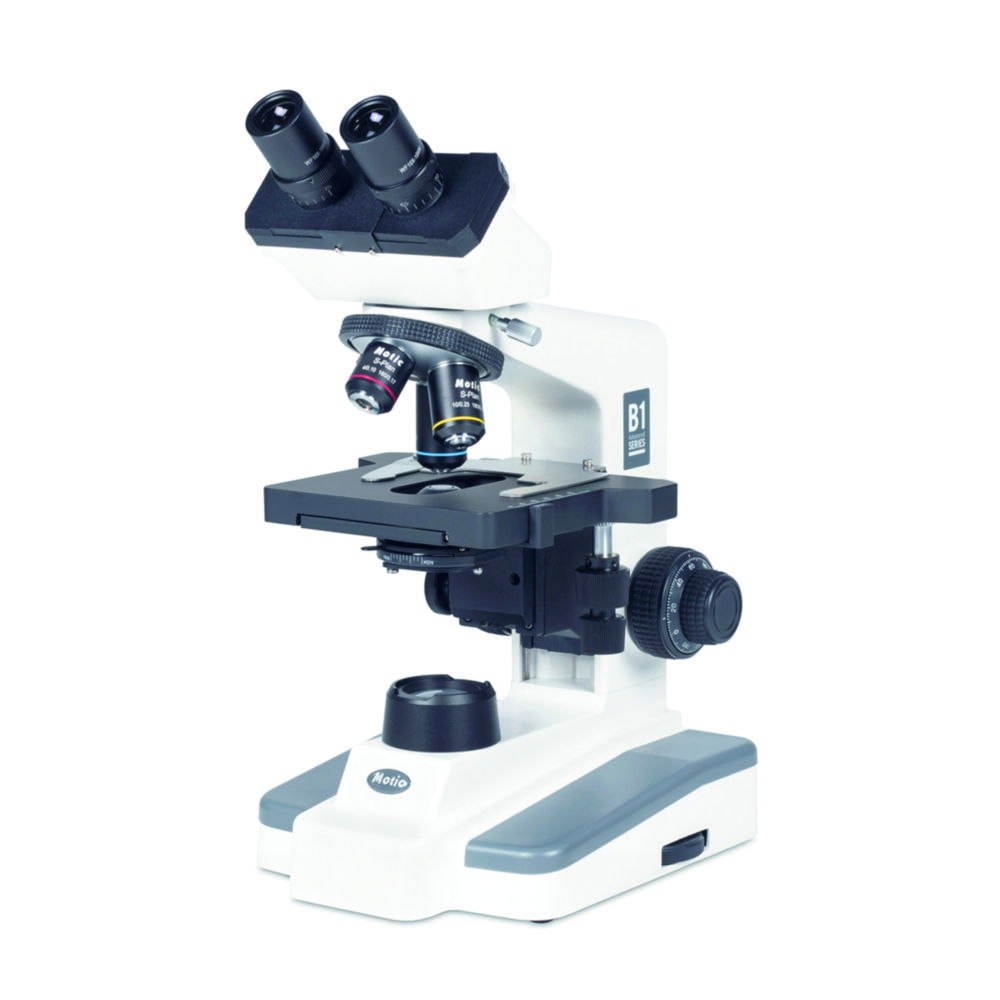

Microscopes B1 Elite
The B1 Elite series covers a wide range of the daily work for schools and laboratories.
- Monocular head 45°, binocular head 45°, trinocular head 30°, 360° rotating
- Widefield eyepieces WF 10X/18mm
- Quadruple revolving nosepiece
- Semi-Plan objectives SP 4X, 10X, 40X S
- Diopter adjustment on both eyepiece sockets
- Coaxial coarse and fine focusing system with tension adjustment
- Built-in low position coaxial rackless mechanical stage
- Focusable 1.25 N.A. Abbe condenser with iris diaphragm
- LED illumination 3 W with intensity control
Scope of supply:
Microscope, dust cover
Toote variatsioonid
| Condenser | Light type | Max. voltage | Min. voltage | Catalog number | Power supply | Revolving nosepiece | Tube | Type | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Abbe 1,25 | LED | 240 V | 110 V | 4.685 487 | 110 ... 240 V | 4-fold | Trinocular | B1-223E-SP | 1.00 | ||
| Abbe 1,25 | LED | 240 V | 110 V | 4.685 577 | 110 ... 240 V | 4-fold | Monocular | B1-211E-SP | 1.00 | ||
| Abbe 1,25 | LED | 240 V | 110 V | 4.685 486 | 110 ... 240 V | 4-fold | Binocular | B1-220E-SP | 1.00 |
