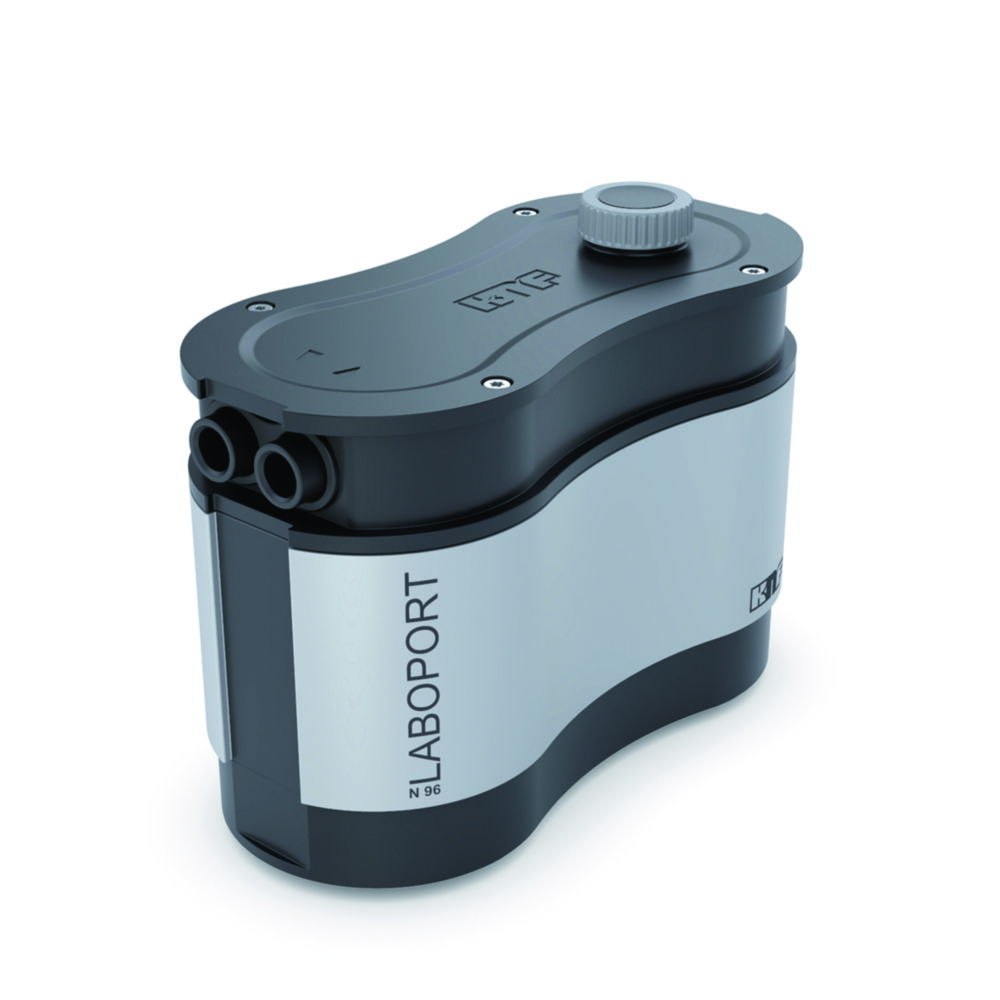

Mini-Diaphragm vacuum pumps LABOPORT® N 96, chemically-resistant
The Pump combines a high flow rate with a very compact design. Suitable for filtration, SPE, and liquid aspiration using a vacuum. Due to the manual rotational speed control, the pump is quiet, very energy efficient, and can be optimally adjusted in accordance with the application.
- Easy-to-clean surface
- Very small footprint
- Adjustable in flowrate due to manual rotational speed control
- PTFE-coated diaphragm for use with aggressive/corrosive gases and vapors
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Flow rate | Height | Max. voltage | Catalog number | Plug type | Power supply | Type | Ultimate vacuum | Weight | Width | PK | Min. voltage | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 156 mm | 75 x 156 x 119 mm | 7 l/min | 119 mm | 115 V | 4.686 731 | US | 115 V, 60 Hz | U N 96 | 130 mbar | 1.3 kg | 75 mm | 1.00 | - | ||
| 156 mm | 75 x 156 x 119 mm | 7 l/min | 119 mm | 240 V | 4.672 374 | EU/UK/CH | 100 ... 240 V, 50/60 Hz | N 96 | 130 mbar | 1.3 kg | 75 mm | 1.00 | 100 V |
