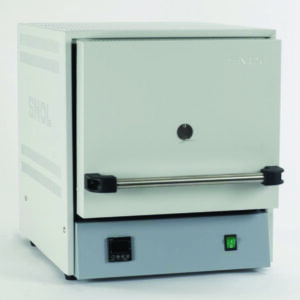

Muffle furnaces series L, max. 1200 °C, with flap door
- Ceramic heating plates with integrated heating wire, splash and exhaust protected, easy to replace
- Heating from two sides (three sides for interior volumes of 24 and 40 l)
- Flap door can be used as work platform
Toote variatsioonid
| Depth int. | Type of door | Ext. depth | Ext. height | Ext. width | Height int. | Int. width | Max. temperature | Nominal capacity | Catalog number | Plug type | Rated capacity | Type | Weight | PK | Max. voltage | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 240 mm | Flap door | 455 mm | 515 mm | 415 mm | 170 mm | 230 mm | 1200 °C | 9 l | 6.232 727 | EU | 3000 W | L 9/12/C550 | 35 kg | 1.00 | 230 V·1/N/PE | ||
| 240 mm | Flap door | 455 mm | 515 mm | 415 mm | 170 mm | 230 mm | 1200 °C | 9 l | 6.226 450 | EU | 3000 W | L 9/12/B510 | 35 kg | 1.00 | 230 V·1/N/PE | ||
| 140 mm | Flap door | 330 mm | 405 mm | 385 mm | 100 mm | 160 mm | 1200 °C | 3 l | 6.223 309 | EU | 1200 W | L 3/12/C550 | 20 kg | 1.00 | 230 V·1/N/PE | ||
| 170 mm | Flap door | 390 mm | 460 mm | 385 mm | 130 mm | 200 mm | 1200 °C | 5 l | 6.223 409 | EU | 2400 W | L 5/12/B510 | 30 kg | 1.00 | 230 V·1/N/PE | ||
| 340 mm | Flap door | 555 mm | 515 mm | 415 mm | 170 mm | 230 mm | 1200 °C | 15 l | 6.233 463 | EU | 3200 W | L 15/12/B510 | 40 kg | 1.00 | 230 V·1/N/PE | ||
| 140 mm | Flap door | 330 mm | 405 mm | 385 mm | 100 mm | 160 mm | 1200 °C | 3 l | 6.201 618 | EU | 1200 W | L 3/12/B510 | 20 kg | 1.00 | 230 V·1/N/PE | ||
| 490 mm | Flap door | 705 mm | 580 mm | 530 mm | 250 mm | 320 mm | 1200 °C | 40 l | 6.234 225 | CEE | 6000 W | L 40/12/B510 | 65 kg | 1.00 | 400 V·3/N/PE | ||
| 170 mm | Flap door | 390 mm | 460 mm | 385 mm | 130 mm | 200 mm | 1200 °C | 5 l | 6.300 117 | EU | 2400 W | L 5/12/C550 | 30 kg | 1.00 | 230 V·1/N/PE | ||
| 340 mm | Flap door | 555 mm | 580 mm | 490 mm | 250 mm | 280 mm | 1200 °C | 24 l | 6.265 211 | CEE | 4500 W | L 24/12/B510 | 55 kg | 1.00 | 400 V·3/N/PE | ||
| 340 mm | Flap door | 555 mm | 580 mm | 490 mm | 250 mm | 280 mm | 1200 °C | 24 l | 7.981 323 | CEE | 4500 W | L 24/12/C550 | 55 kg | 1.00 | 400 V·3/N/PE | ||
| 490 mm | Flap door | 705 mm | 580 mm | 530 mm | 250 mm | 320 mm | 1200 °C | 40 l | 6.238 059 | CEE | 6000 W | L 40/12/C550 | 65 kg | 1.00 | 400 V·3/N/PE | ||
| 340 mm | Flap door | 555 mm | 515 mm | 415 mm | 170 mm | 230 mm | 1200 °C | 15 l | 7.647 819 | EU | 3200 W | L 15/12/C550 | 40 kg | 1.00 | 230 V·1/N/PE | ||
| 115 mm | Flap door | 280 mm | 430 mm | 290 mm | 110 mm | 90 mm | 1200 °C | 1 l | 4.675 300 | EU | 1500 W | L 1/12/R7 | 10 kg | 1.00 | 230 V·1/N/PE |
