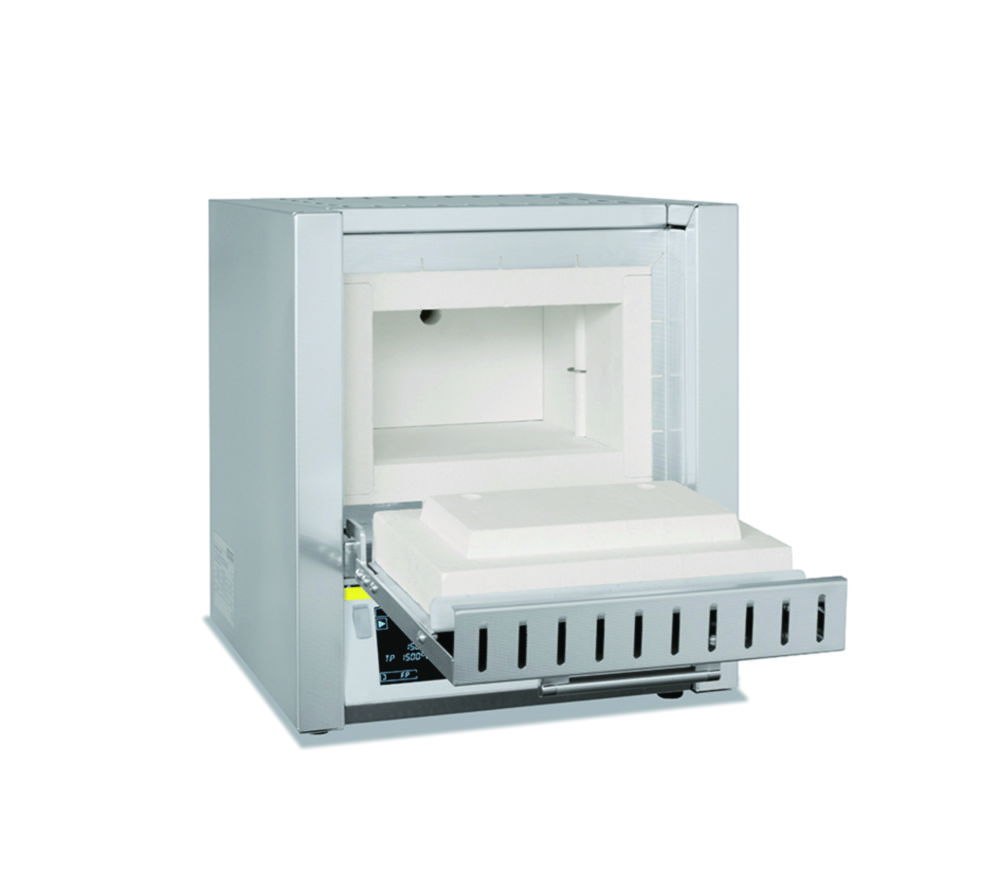

Muffle furnaces series L, max. 1400 °C, with flap door

Max. temperature 1400 °C (recommended working temperature for processes with longer dwell times is 1300 °C)

Heating elements on support tubes for free heat radiation, short heating times and long service life

Toote variatsioonid

Depth int.	Type of door	External dimensions (WxDxH)	Ext. depth	Ext. height	Ext. width	Height int.	Internal dimensions (WxDxH)	Int. width	Max. temperature	Max. voltage	Nominal capacity	Catalog number	Plug type	Power supply	Rated capacity	Type	Weight	PK
170 mm	Flap door	490 x 450 x 580 mm	450 mm	580 mm	490 mm	130 mm	200 x 170 x 130 mm	200 mm	1400 °C	230 V·1/N/PE	5 l	4.665 088	EU	230 V·1/N/PE, 50/60 Hz	2400 W	L 5/14/C550	42 kg	1.00
170 mm	Flap door	490 x 450 x 580 mm	450 mm	580 mm	490 mm	130 mm	200 x 170 x 130 mm	200 mm	1400 °C	230 V·1/N/PE	5 l	4.665 082	EU	230 V·1/N/PE, 50/60 Hz	2400 W	L 5/14/B510	42 kg	1.00
350 mm	Flap door	530 x 625 x 630 mm	625 mm	630 mm	530 mm	170 mm	250 x 350 x 170 mm	250 mm	1400 °C	230 V·1/N/PE	15 l	4.665 090	EU	230 V·1/N/PE, 50/60 Hz	3200 W	L 15/14/C550	63 kg	1.00
350 mm	Flap door	530 x 625 x 630 mm	625 mm	630 mm	530 mm	170 mm	250 x 350 x 170 mm	250 mm	1400 °C	230 V·1/N/PE	15 l	4.665 085	EU	230 V·1/N/PE, 50/60 Hz	3200 W	L 15/14/B510	63 kg	1.00
250 mm	Flap door	530 x 525 x 630 mm	525 mm	630 mm	530 mm	170 mm	250 x 250 x 170 mm	250 mm	1400 °C	230 V·1/N/PE	9 l	4.665 083	EU	230 V·1/N/PE, 50/60 Hz	3200 W	L 9/14/B510	55 kg	1.00
250 mm	Flap door	530 x 525 x 630 mm	525 mm	630 mm	530 mm	170 mm	250 x 250 x 170 mm	250 mm	1400 °C	230 V·1/N/PE	9 l	4.665 089	EU	230 V·1/N/PE, 50/60 Hz	3200 W	L 9/14/C550	55 kg	1.00
