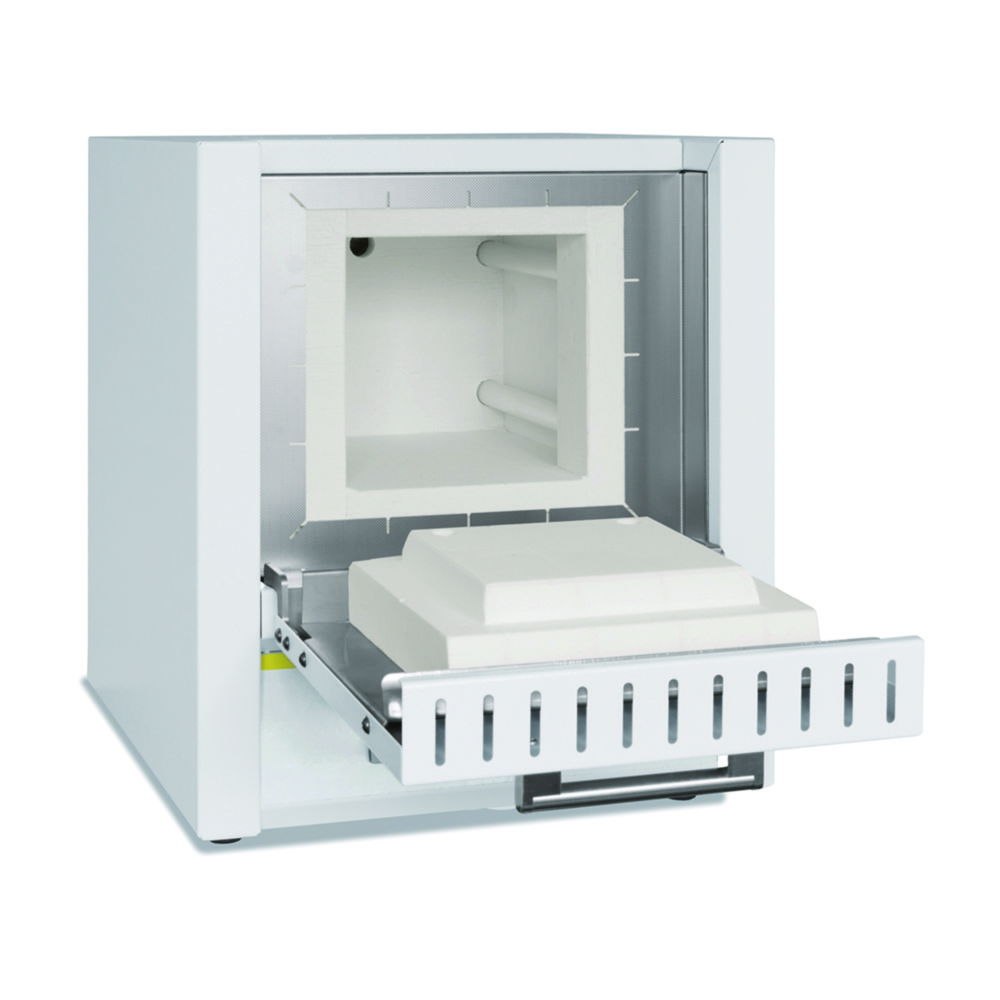

Muffle Furnaces Series LE 1/11 – LE 24/11 up to 1100 °C, with controller R 7
Compact muffle furnaces with dual shell furnace housing of rust-free stainless steel and heating elements encased in quartz glass tubes.
- Tmax 1100 °C, working temperature 1050 °C
- Heating from two sides from heating elements in quartz glass tubes
- Maintenance-friendly replacement of heating elements and insulation
- Insulation only made of materials that are classified as not carcinogenic acc. to TRGS 905, class 1 or 2
- Housing made of sheets of textured stainless steel
- Dual shell housing for low external temperatures and high stability
- Flap door which can also be used as a work platform
- Exhaust air outlet in rear wall
- Compact dimensions and light weight
- Controller mounted under the door to save space
- Equipped with the basic controller R 7 with one free storeable temperature, which is dwelled until the controller is switch off
- Standard power supply 230 V, 1/N/PE, 50/60 Hz
Toote variatsioonid
| Depth int. | Type of door | Door opening | External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Height int. | Internal dimensions (WxDxH) | Int. width | Max. temperature | Max. voltage | Nominal capacity | Catalog number | Power supply | Rated capacity | Type | Weight | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 300 mm | Flap door | Downwards | 440 x 534 x 516 mm | 534 mm | 516 mm | 440 mm | 220 mm | 220 x 300 x 220 mm | 220 mm | 1100 °C | 230 V | 14 l | 9.764 541 | 230 V, 50...60 Hz | 2.9 kW | LE 14/11/R7 | 25 kg | 1.00 |
