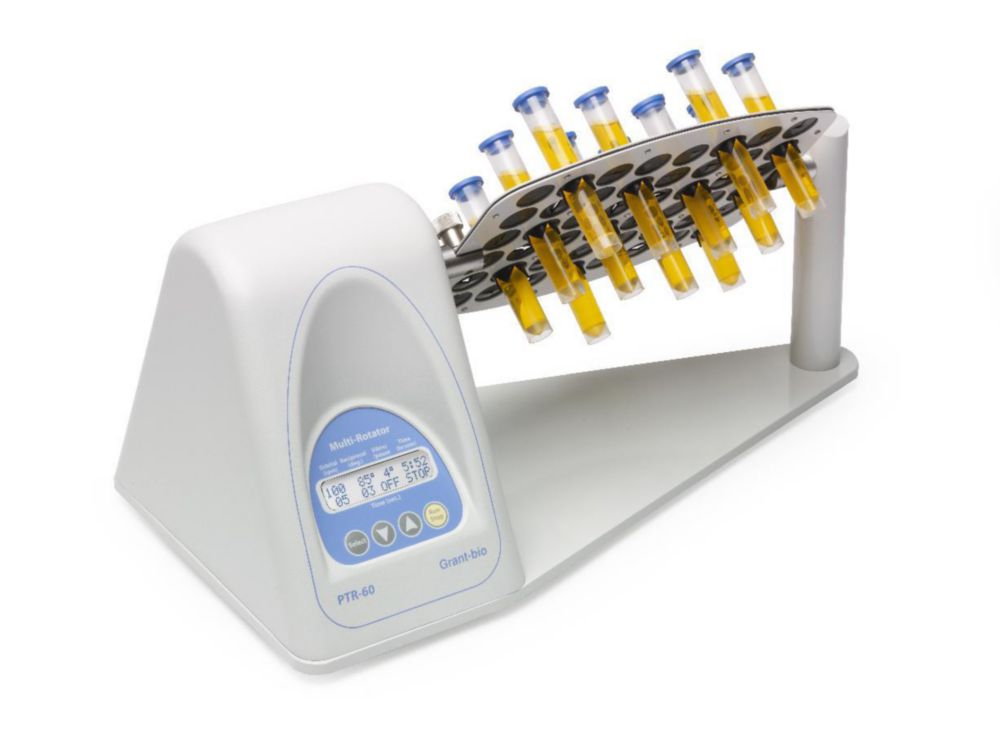

Multi-function rotator PTR-60
360° vertical multi-function rotator for thorough mixing in tubes, with multi-segment programme.
- Multi-function: vertical rotation, reciprocation, vibration
- Continuous or timed operation for each phase
- Speed: 1 to 100 rpm, with 1 rpm increment
- Reciprocal rotation: 1 to 90° turning angle
- Vibration: programmable in a burst of 1 to 5 seconds
- Fully programmable sequence of functions, including pause
- Timer from 1 min to 24 h
- Alternative platforms for larger tubes available
Scope of supply: Multi-function rotator, platform for 48 tubes
Toote variatsioonid
| Depth | Display | Height | Max. no. of vessels | Max. speed | Max. voltage | Min. speed | Min. voltage | Catalog number | Plug type | Rated capacity | Type | Type of movement | Weight | Width | With timer | PK | Dimensions (WxDxH) | Power supply | Speed | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 230 mm | Digital | 230 mm | 48 | 100 1/min | 230 V | 1 1/min | 120 V | 9.721 030 | EU/UK | 18 W | PTR-60 | Orbital/reciprocal/vortex | 3.8 kg | 430 mm | Yes | 1.00 | 430 x 230 x 230 mm | 120 ... 230 V, 50/60 Hz | 1 ... 100 1/min |
