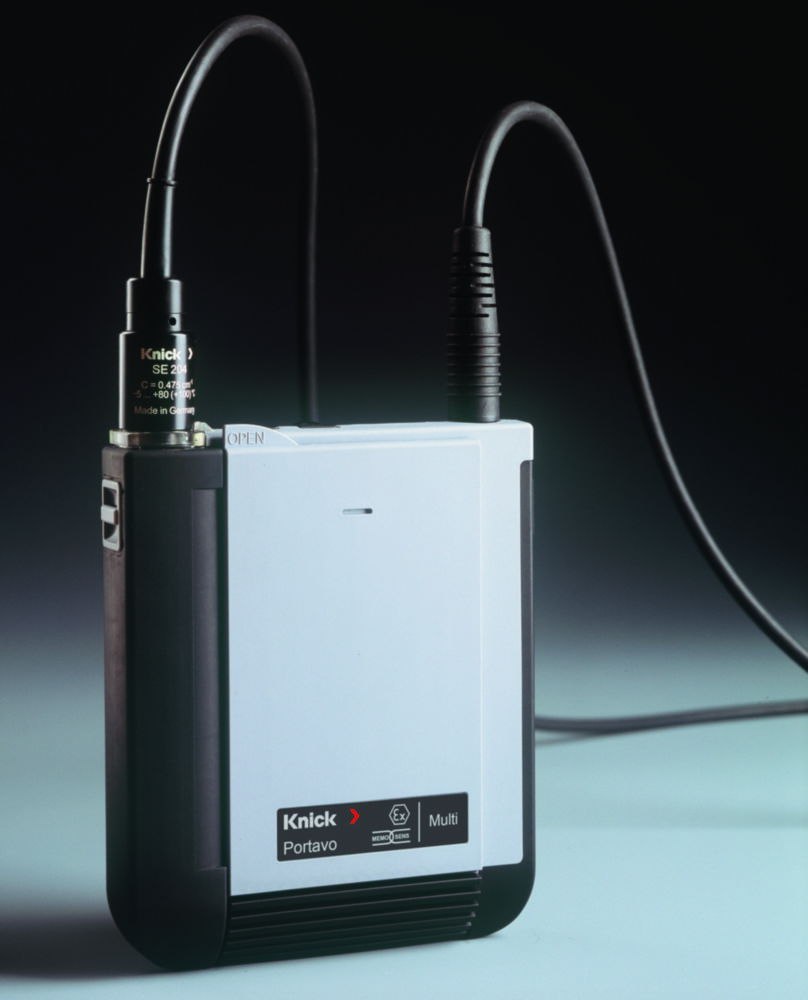

Multi meter Portavo 904 X Multi
The world’s only portable device for liquid analysis with ATEX approval for measurements up to Zone 0/1. Ideal for applications in the process industry. For the first time, Portavo enables direct on-site testing of process measuring points. It is compatible with almost all analog and Memosens process sensors. Memosens sensors with different parameters can be checked without changing the sensor cable.
- The new MemoLog function allows the user to log calibration data from various Memosens measuring points, which can then be easily transferred to a computer via the standard USB connection. The Paraly SW 112 software enables user-friendly management of all recorded data
- A sensor quiver protects the sensor from damage and drying out
- The high-performance polymer housing ensures low water absorption and high impact resistance
- Over 1000 hours of measurement with a single set of batteries (4 x AA)
- Data logger with 5000 values
- The mineral glass display is perfectly readable even after years
- The world’s only portable device for liquid analysis in hazardous locations
Toote variatsioonid
| Catalog number | PK | Battery/rechargeable battery | Conductivity | Depth | Designation ANSI | Dimensions (WxDxH) | Height | Interfaces | IP code | Max. pH value | Min. pH value | mV range | Partial pressure | pH range | Salinity | Saturation | TDS range | Temperature | Type | Waranty | Weight | Width | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9.774 716 | 1.00 | 4 x AA | 156 mm | AA | 132 x 156 x 30 mm | 30 mm | USB | IP 66 | 16 | 2 | -1300 ... 1300 (analogue)/-2000 ... 2000 (Memosens) | 0 ... 2000 mbar (Memosens) | -2 ... 16 | 0 ... 45 g/kg | 0 ... 1000 % (Memosens) | 0 ... 1999 mg/l | -50 ... 250 °C (Memosens) | 904 X Multi | 3 years | 500 g | 132 mm |
