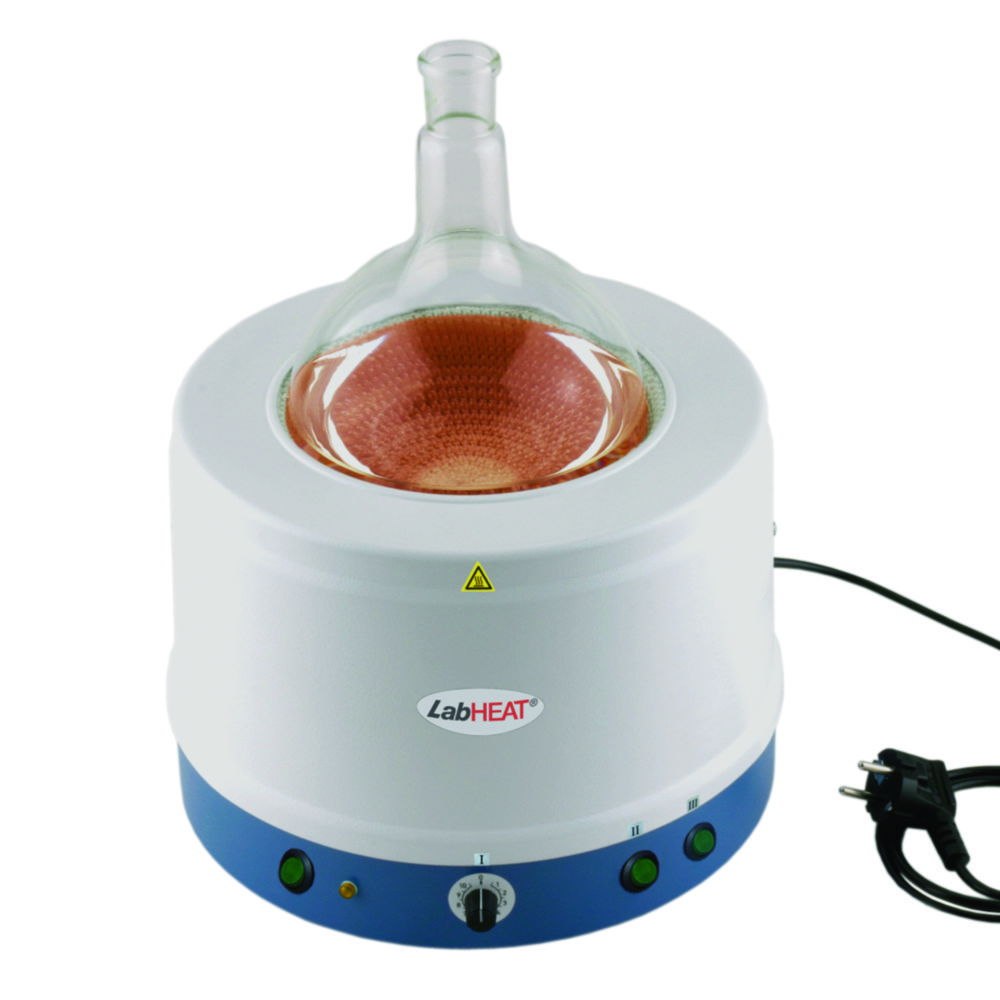

Multi-size Heating Mantles, series KM-MPE for different sized round bottom flasks
LabHEAT®-Heating mantles for flasks, round bottom. Designed and technically identical to series KM-ME, but can be used for round flasks of three different sizes, max. heating element temperature 450 °C; 1.5 m power supply (earthed) cable and RCD (residual current detection), equipped with a controller which allows a continuous adjustment of power.
Toote variatsioonid
| atr_llg_diam_vessel | Height | Max. temperature | Max. voltage | atr_llg_no_of_heating_points | No. of heating zones | Catalog number | Plug type | Power supply | Rated capacity | atr_llg_vessels_capacity | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 85...131 mm | 190 mm | 450 °C | 230 V·AC | 1 | 3 | 9.642 541 | EU | 230 V·AC | 350 W | 250...1000 ml | 1.00 | ||
| 131...185 mm | 220 mm | 450 °C | 230 V·AC | 1 | 3 | 9.642 542 | EU | 230 V·AC | 700 W | 1000...3000 ml | 1.00 | ||
| 51...85 mm | 180 mm | 450 °C | 230 V·AC | 1 | 3 | 9.642 540 | EU | 230 V·AC | 160 W | 50...250 ml | 1.00 |
