Nano-Adamant unmodified nano silica layers for HPTLC

Glass plates

nano silica 60, specific surface (BET) ~ 500m2/g, mean pore size 60Å, specific pore volume 0.75ml/g,
particle size 2 to 10 µm
outstanding hardness and abrasion resistance due to an optimized binder system increased separation efficiency due to an optimized particle size distribution high suitability for trace analyses resulting from a UV indicator with increased brilliance and a low-noise background of the layer narrow fractionation of the silica particles allows theoretical plate heights, which are one order of magnitude smaller than on standard silica layers with the advantage of sharper separations, shorter developing times, shorter migration distances, lower amount of samples, and increased detection sensitivity with equal selectivity.

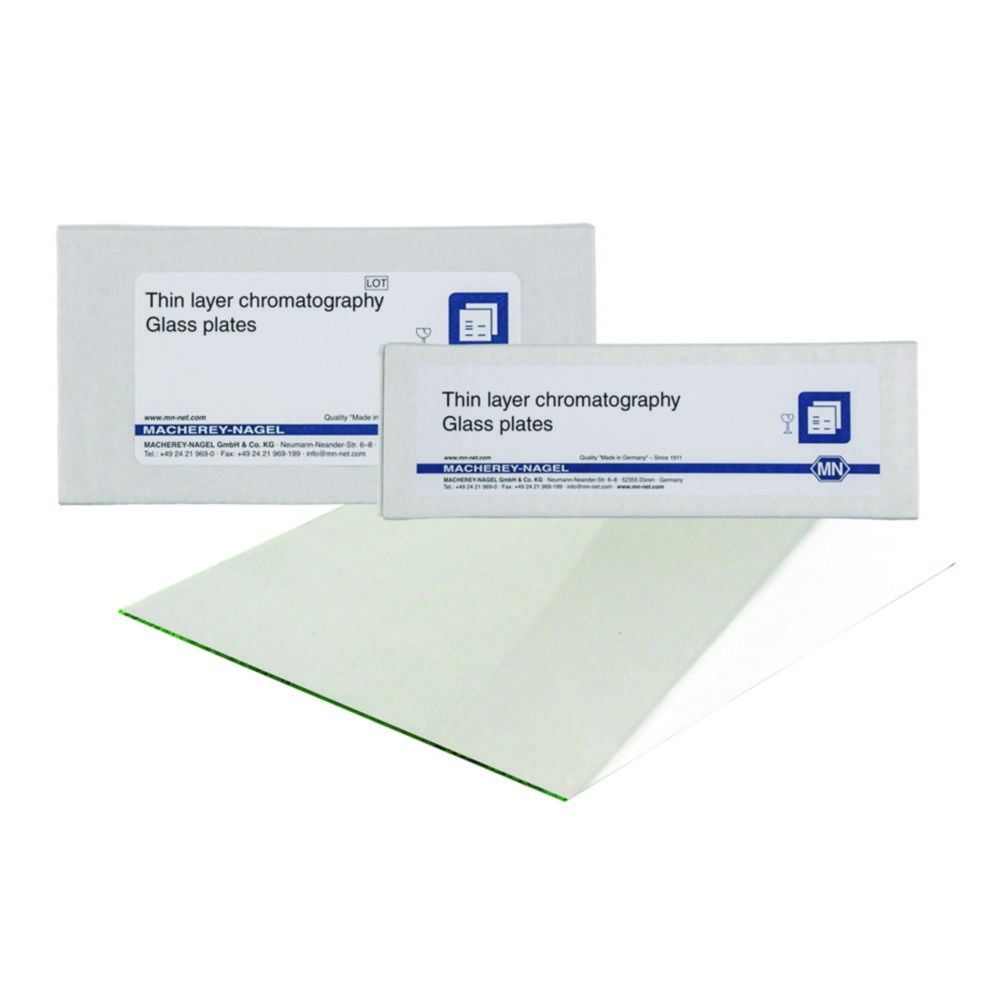

Available as glass plates with or without fluorescent indicator (UV 254).

Toote variatsioonid

TypePlate format cmPath length mmCatalog numberPKKogus
Nano-ADAMANT10 x 200.24.005 07550.00
Nano-ADAMANT UV25410 x 200.24.005 07250.00
Nano-ADAMANT10 x 100.24.005 07425.00
Nano-ADAMANT UV25410 x 100.26.226 34625.00
Nano-ADAMANT5 x 50.24.005 073100.00
Nano-ADAMANT UV2545 x 50.24.005 071100.00
