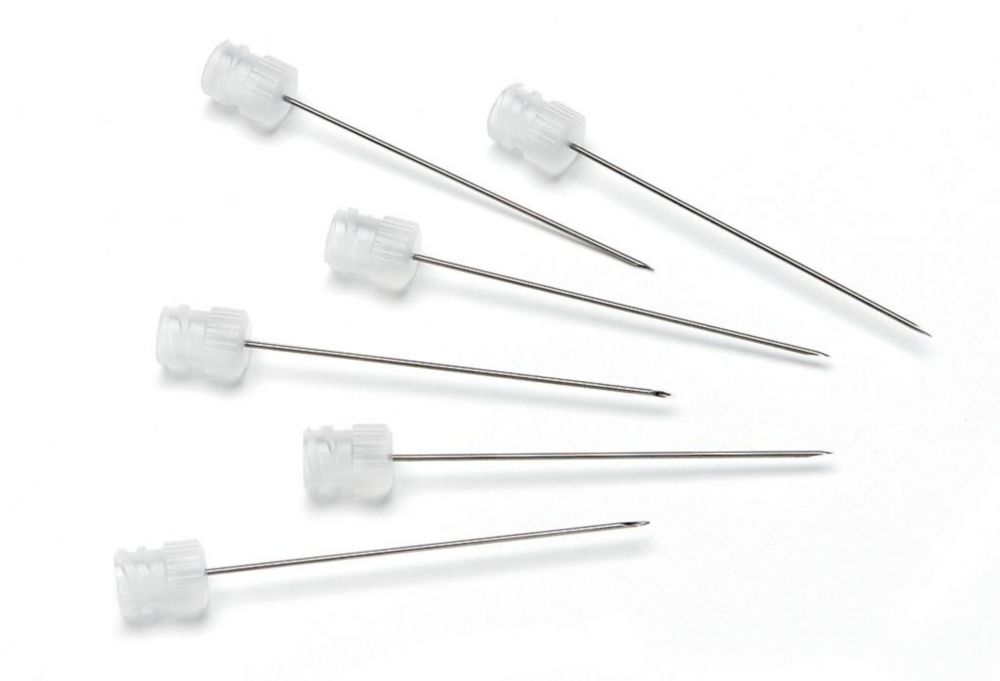

Needles for LT / TLL / TLLX syringes
Removable. With Luer tip made of Kel-F. All hypodermic needles available according to specification in 10 mm to max. 1000 mm lengths. Further point styles and diameters available on request. Needle length: 51 mm
Toote variatsioonid
| Catalog number | PK | Ext. Ø | Fits for | Length | Type | Shape tip (needle) | Gauge | Kogus | |
|---|---|---|---|---|---|---|---|---|---|
| 9.221 624 | 6.00 | 0.57 mm | GC | 51 mm | KF 724 | Bevel, curved | 24s | ||
| 9.221 607 | 6.00 | 0.72 mm | GC | 51 mm | KF 722s | Bevel, curved | 22s | ||
| 9.221 625 | 6.00 | 0.51 mm | GC | 51 mm | KF 725 | Bevel, curved | 25s | ||
| 9.221 609 | 6.00 | 0.47 mm | GC | 51 mm | KF 726s | Bevel, curved | 26s | ||
| 9.221 622 | 6.00 | 0.72 mm | GC | 51 mm | KF 722 | Bevel, curved | 22 | ||
| 9.221 623 | 6.00 | 0.64 mm | GC | 51 mm | KF 723 | Bevel, curved | 23s | ||
| 9.221 626 | 6.00 | 0.46 mm | GC | 51 mm | KF 726 | Bevel, curved | 26 | ||
| 9.221 620 | 6.00 | 0.91 mm | GC | 51 mm | KF 720 | Bevel, curved | 20 | ||
| 9.221 621 | 6.00 | 0.82 mm | GC | 51 mm | KF 721 | Bevel, curved | 21 | ||
| 9.221 724 | 6.00 | 0.57 mm | HPLC | 51 mm | KF 724 | Straight | 24 | ||
| 9.221 726 | 6.00 | 0.46 mm | HPLC | 51 mm | KF 726 | Straight | 26 | ||
| 9.221 709 | 6.00 | 0.47 mm | HPLC | 51 mm | KF 726s | Straight | 26s | ||
| 9.221 723 | 6.00 | 0.64 mm | HPLC | 51 mm | KF 723 | Straight | 23 | ||
| 9.221 735 | 6.00 | 0.51 mm | HPLC | 51 mm | KF 725 | Straight | 25 | ||
| 9.221 707 | 6.00 | 0.72 mm | HPLC | 51 mm | KF 722s | Straight | 22s | ||
| 9.221 721 | 6.00 | 0.82 mm | HPLC | 51 mm | KF 721 | Straight | 21 | ||
| 9.221 720 | 6.00 | 0.91 mm | HPLC | 51 mm | KF 720 | Straight | 20 | ||
| 9.221 722 | 6.00 | 0.72 mm | HPLC | 51 mm | KF 722 | Straight | 22 |
