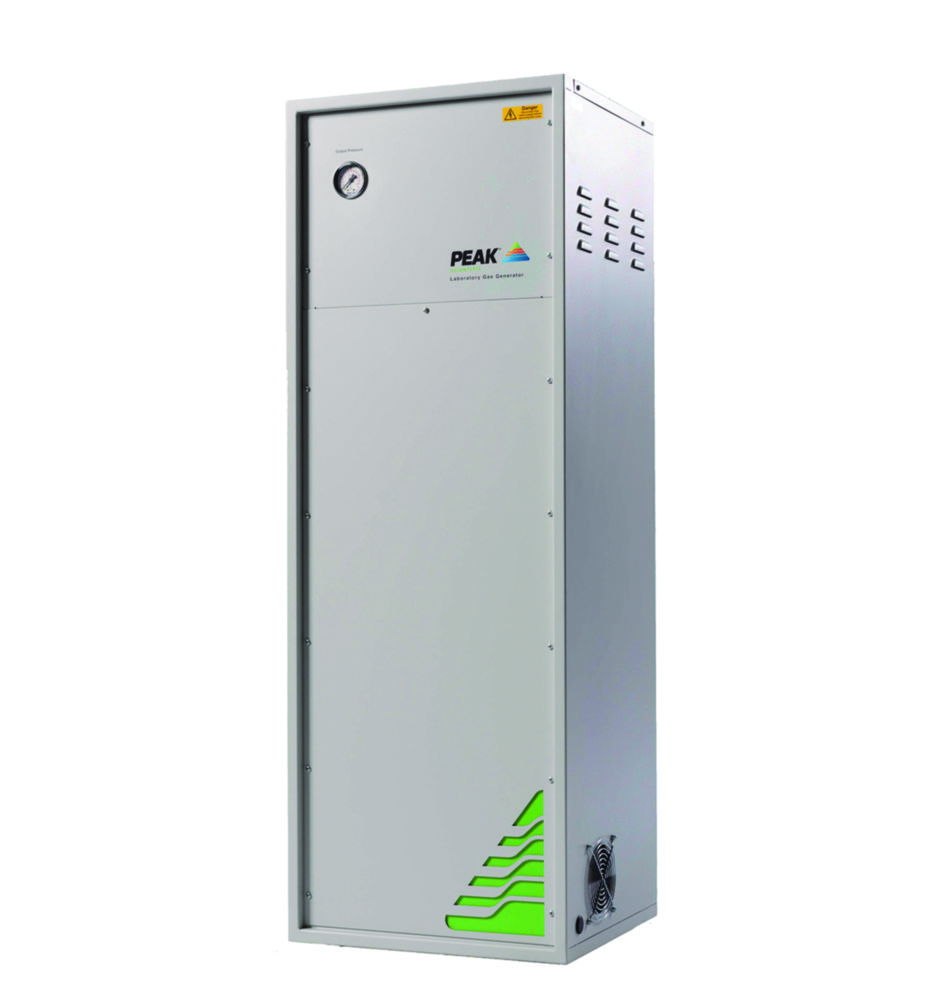

Nitrogen generators NG3000 (A) / NG5000 (A)

The nitrogen generators use pressure swing adsorption to produce ultra-high purity nitrogen for GC applications. Delivering flow rates of 3 l/min or 5 l/min, these generators come in two variants, the standard model and the enhanced (A) models which feature an integrated compressor, removing the need for an external air supply to be present in the lab. Contains a self-regenerating carbon molecular sieve column.

• Specifications
• Purity: 99.9995 %*
• Max. pressure: 5.5 bar / 80 psi
• Permissible ambient temperature: 5 … 25 °C
• Dimensions (W x D x H): 430 x 410 x 1260 mm
• Power supply: 230 V, 50/60 Hz
• Warranty: 12 month comprehensive on-site warranty
