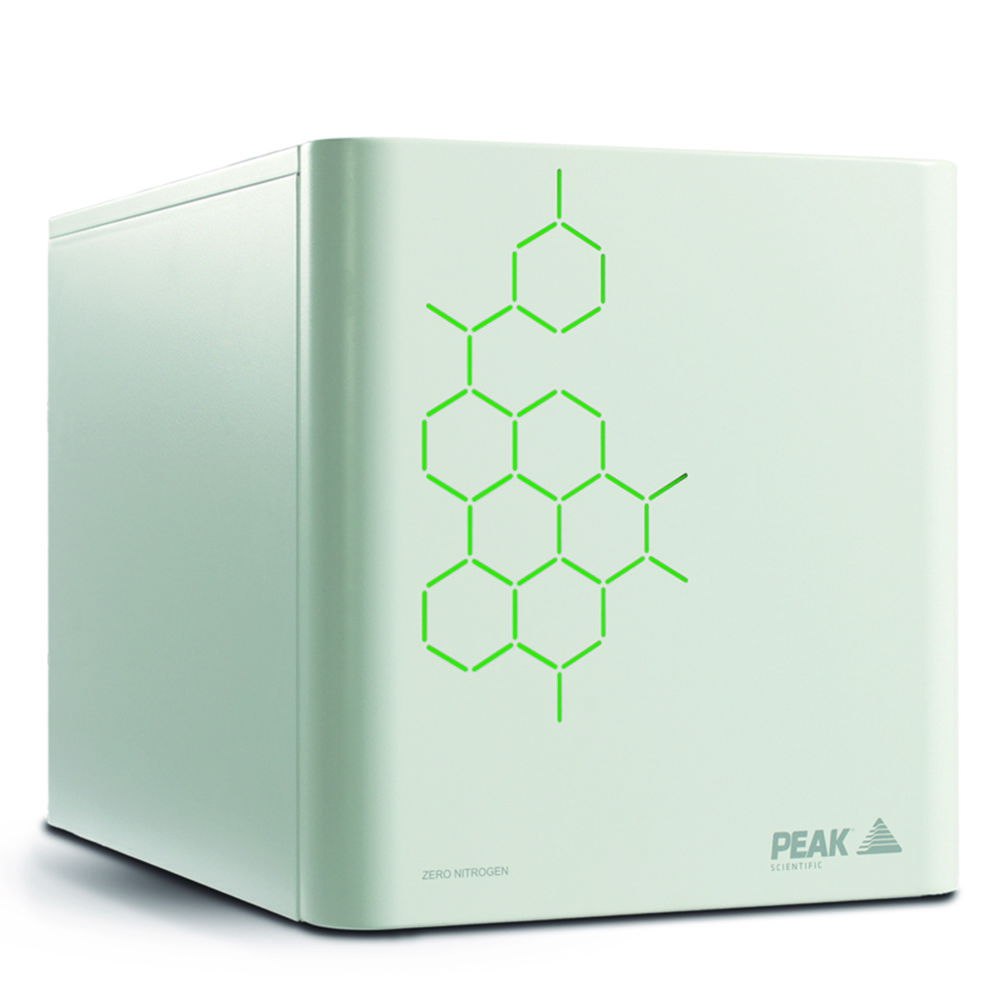

Nitrogen generators Precision Nitrogen
Nitrogen generators for the GC. For safe and continuous production of nitrogen with a purity of 99.9995%.
- On-demand generation of nitrogen as purge gas and for sample preparation in standard analyses
- Compact, modular and stackable system
- Constant and uniform supply for reliable and reproducible analyses
- Can be individually combined with PEAK hydrogen and zero air generators
- No contamination of the system
- Very fast start time and rapid achievement of the required operating purity
- Available with different flow rates
- Generator for headspace requirements available, compatible with most headspace samplers
- Very low maintenance requirements
Scope of supply: Nitrogen generator, 1 m PTFE tubing, 1/4″ compression fitting, 1/8″ compression fitting, mains power cable for EU, UK and US
- Specifications
- Purity: 99.9995 %
- Gas connection: 1/4″
- Permissible ambient temperature: 5 … 35 °C
- Dimensions (W x D x H): 380 x 540 x 256 mm
- Power supply: 110/230 V, 50/60 Hz
- Warranty: 1 year
Toote variatsioonid
| Type | Pressure max. bar | Flow rate L / min. | Weight kg | Catalog number | PK | Kogus | |
|---|---|---|---|---|---|---|---|
| Precision Nitrogen 250 | 5.5 (80 psi) | 0.25 | 21 | 4.669 267 | 1.00 | ||
| Precision Nitrogen Headspace 250 | 6.9 (100 psi) | 0.25 | 38 | 4.669 266 | 1.00 | ||
| Precision Nitrogen 600 | 5.5 (80 psi) | 0.60 | 21 | 4.669 268 | 1.00 |
