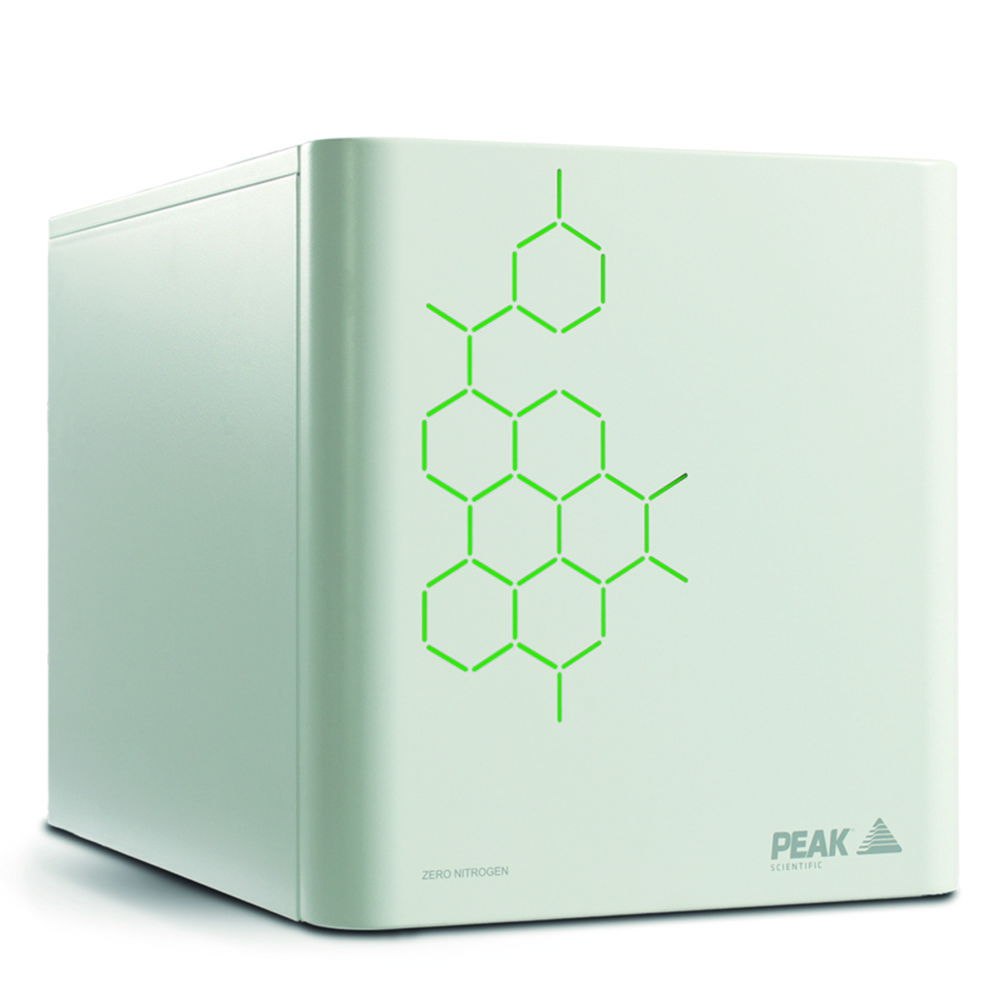

Nitrogen generators Precision Nitrogen Trace
For the safe and continuous production of high-purity nitrogen for GC with a purity of 99.9999%.
- On-demand generation of nitrogen as carrier gas, additive gas and for sample preparation in GC
- Nitrogen is produced from compressed air
- Compact, modular and stackable system
- Reduction of hydrocarbons to <0.05 ppm
- No replacement of the catalyst chamber required
- Regenerative CMS columns remove oxygen and moisture
- Constant and uniform supply for reliable and reproducible analyses
- Can be individually combined with PEAK hydrogen and zero air generators
- No contamination of the system as when changing bottles
- Very fast start-up time and rapid achievement of the required operating purity
- Available with different flow rates
- Minimal maintenance requirements
- 3 years warranty on the cell
Scope of supply: Nitrogen generator, 1 m PTFE tubing, 1/4″ compression fitting, 1/8″ compression fitting, mains power cable for EU, UK and US
Toote variatsioonid
| Catalog number | PK | Depth | Dimensions (WxDxH) | Height | Max. flow rate | Max. pressure | Max. voltage | Power supply | Purity | Type | Type of gas | Waranty | Weight | Width | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4.669 271 | 1.00 | 540 mm | 380 x 540 x 256 mm | 256 mm | 5.5 bar | 230 V | 230 V, 50...60 Hz | 99,9999 % | Precision Nitrogen Trace 600 | Nitrogen | 1 year | 38 kg | 380 mm | |||
| 4.669 272 | 1.00 | 540 mm | 380 x 540 x 256 mm | 256 mm | 5.5 bar | 230 V | 230 V, 50...60 Hz | 99,9999 % | Precision Nitrogen Trace 1000 | Nitrogen | 1 year | 38 kg | 380 mm | |||
| 4.669 270 | 1.00 | 540 mm | 380 x 540 x 256 mm | 256 mm | 5.5 bar | 230 V | 230 V, 50...60 Hz | 99,9999 % | Precision Nitrogen Trace 250 | Nitrogen | 1 year | 38 kg | 380 mm |
