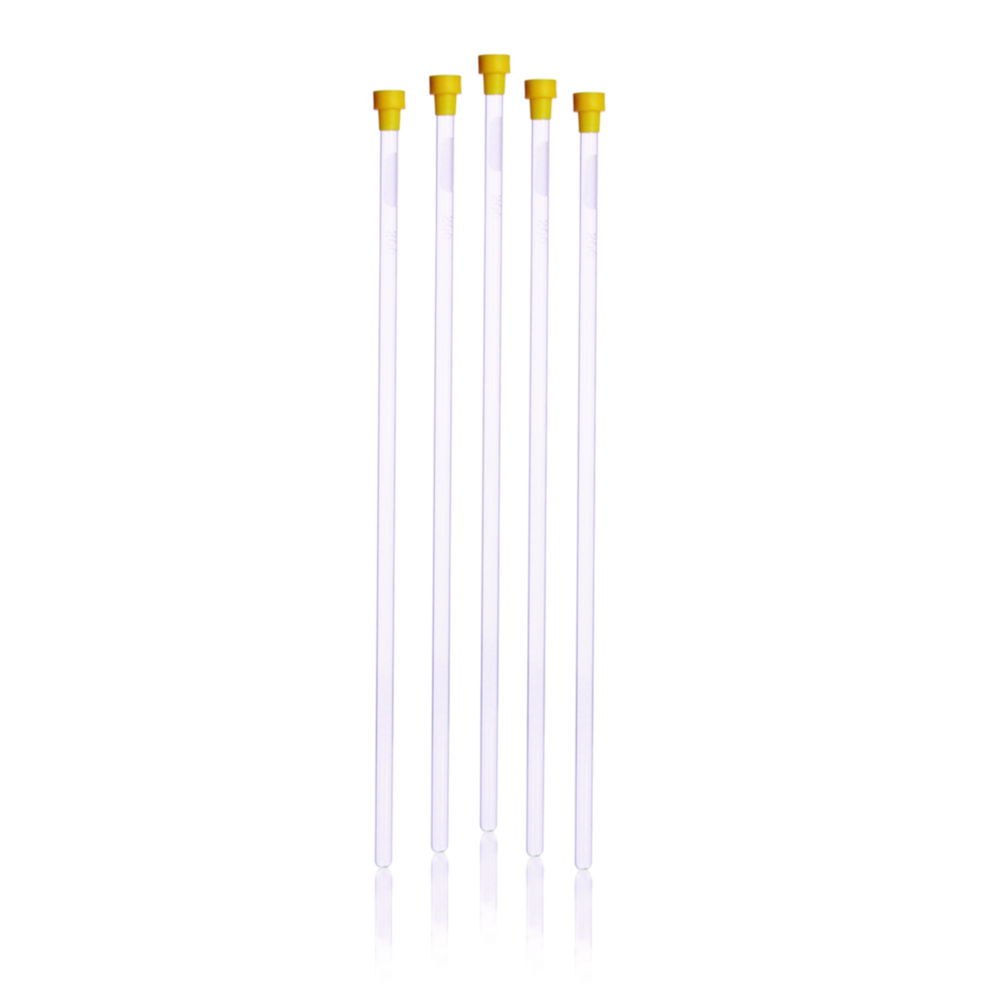

NMR tubes, 5 mm, borosilicate glass 3.3, KIMAX®-HQ
Our KIMAX®-HQ NMR tubes are our highest quality NMR tubes and are 100 % gauged for wall thickness, concentricity and camber specifications.
- High-Quality NMR tubes
- Polyethylene caps
- Sandblasted marking spot
- Manufactured from borosilicate glass 3.3 conforming to USP Type I and ASTM E438, Type I, Class A requirements
Toote variatsioonid
| Camber | Concentricity | Ext. Ø | Ext. Ø | Frequency | Int. Ø | Int. Ø | Length | Material | Max. frequency | Min. frequency | Catalog number | Tolerance ext. Ø | Tolerance int. Ø | Wall thickness | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 µm | 13 µm | 4.9700 mm ± 0.013 | 4.9700 mm | 600 ... 700 MHz | 4.2000 mm ± 0.013 | 4.2000 mm | 178 mm | Boro 3.3 | 700 MHz | 600 MHz | 9.400 317 | 0.013 mm | 0.013 mm | 0,375 mm | 5.00 | ||
| 25 µm | 38 µm | 4.9700 mm ± 0.013 | 4.9700 mm | 300 MHz | 4.2000 mm ± 0.013 | 4.2000 mm | 178 mm | Boro 3.3 | 300 MHz | - | 7.982 133 | 0.013 mm | 0.013 mm | 0,375 mm | 5.00 | ||
| 3.8 µm | 5 µm | 4.9700 mm ± 0.013 | 4.9700 mm | 900 MHz | 4.2000 mm ± 0.013 | 4.2000 mm | 203 mm | Boro 3.3 | 900 MHz | - | 9.400 320 | 0.013 mm | 0.013 mm | 0,375 mm | 5.00 | ||
| 3.8 µm | 5 µm | 4.9700 mm ± 0.013 | 4.9700 mm | 800 MHz | 4.2000 mm ± 0.013 | 4.2000 mm | 178 mm | Boro 3.3 | 800 MHz | - | 6.280 135 | 0.013 mm | 0.013 mm | 0,375 mm | 5.00 | ||
| 3.8 µm | 5 µm | 4.9700 mm ± 0.013 | 4.9700 mm | 900 MHz | 4.2000 mm ± 0.013 | 4.2000 mm | 178 mm | Boro 3.3 | 900 MHz | - | 9.400 319 | 0.013 mm | 0.013 mm | 0,375 mm | 5.00 | ||
| 9 µm | 13 µm | 4.9700 mm ± 0.013 | 4.9700 mm | 600 ... 700 MHz | 4.2000 mm ± 0.013 | 4.2000 mm | 203 mm | Boro 3.3 | 700 MHz | 600 MHz | 9.400 318 | 0.013 mm | 0.013 mm | 0,375 mm | 5.00 |
